6. Functions

6.1 Front panel

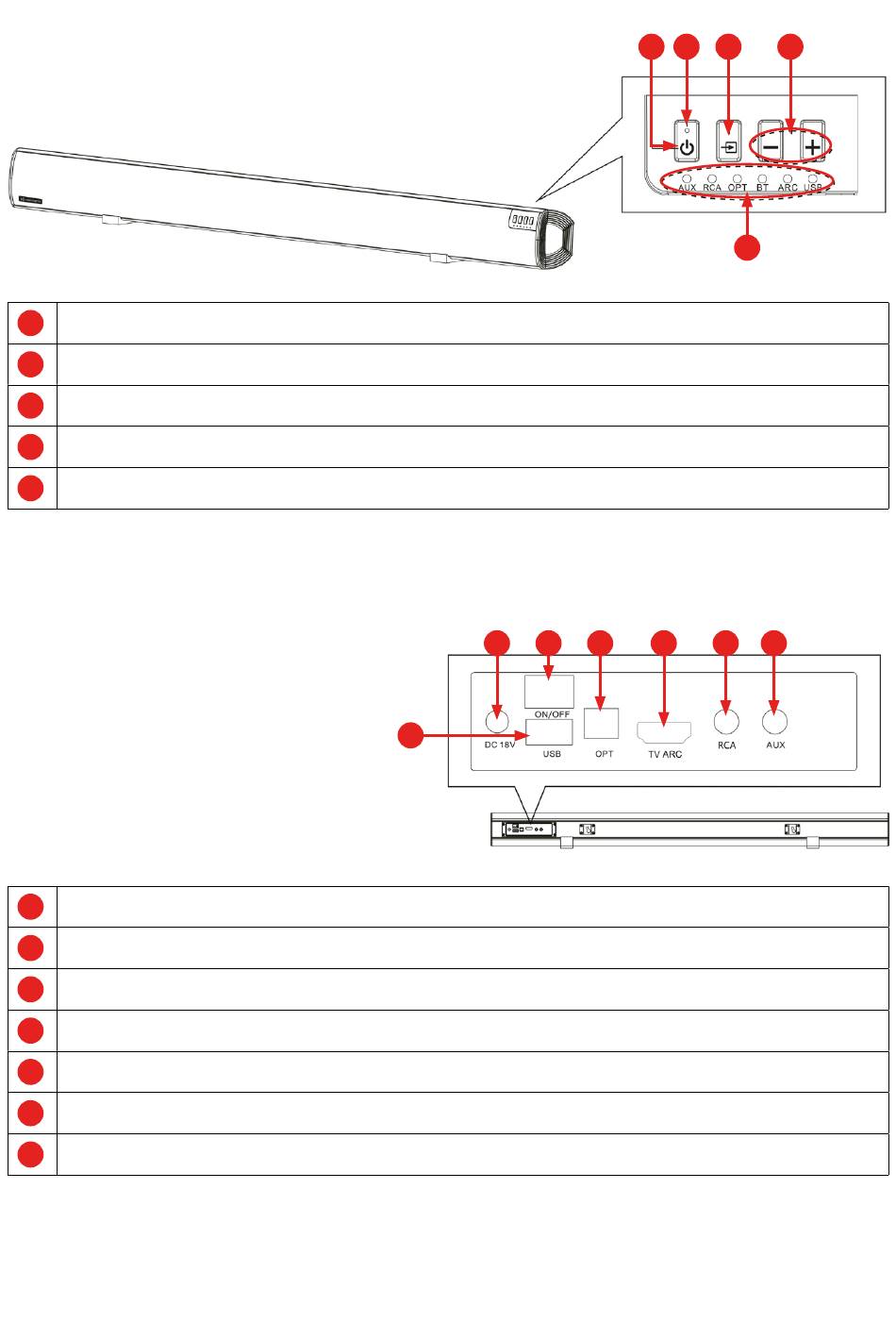

Front Panel / Right Side Panel of the soundbar
1
Red LED (active in standby)
2 White LED (corresponds to selected audio channel)
3 ON / OFF
4
Source (selects inputs sequentially)
5
Volume + / - key (red LED flashes when pushing button)

6.2. Back panel

1 DC power connector
2
Power switch
3
OPT in: To connect the optical (Toslink) output of an external audio device.
4 TV/ARC in: To connect the HDMI input with ARC function of a display/TV.
5 RCA in (3.5 mm jack): To connect the analogue output of an external audio device
6
AUX in (3.5 mm jack); To connect to the analogue output of an external audio device
7
USB (type A): To playback music from a USB memory device through the soundbar.
