MOUNTING, FUNCTIONING
1. Disconnect power supply by the phase fuse, the circuit-breaker or the switch-
disconnector combined to the proper circuit.
2. Check if there is no voltage on connection cables by means of a special measure
equipment.
3. Connect the cables to ROB-01/12-24V device terminals in accordance with the
installing diagram.
4. Switch on the power supply from the mains.
The ROB-01/12-24V device should be mount-
ed in the connection place of manual gate drive

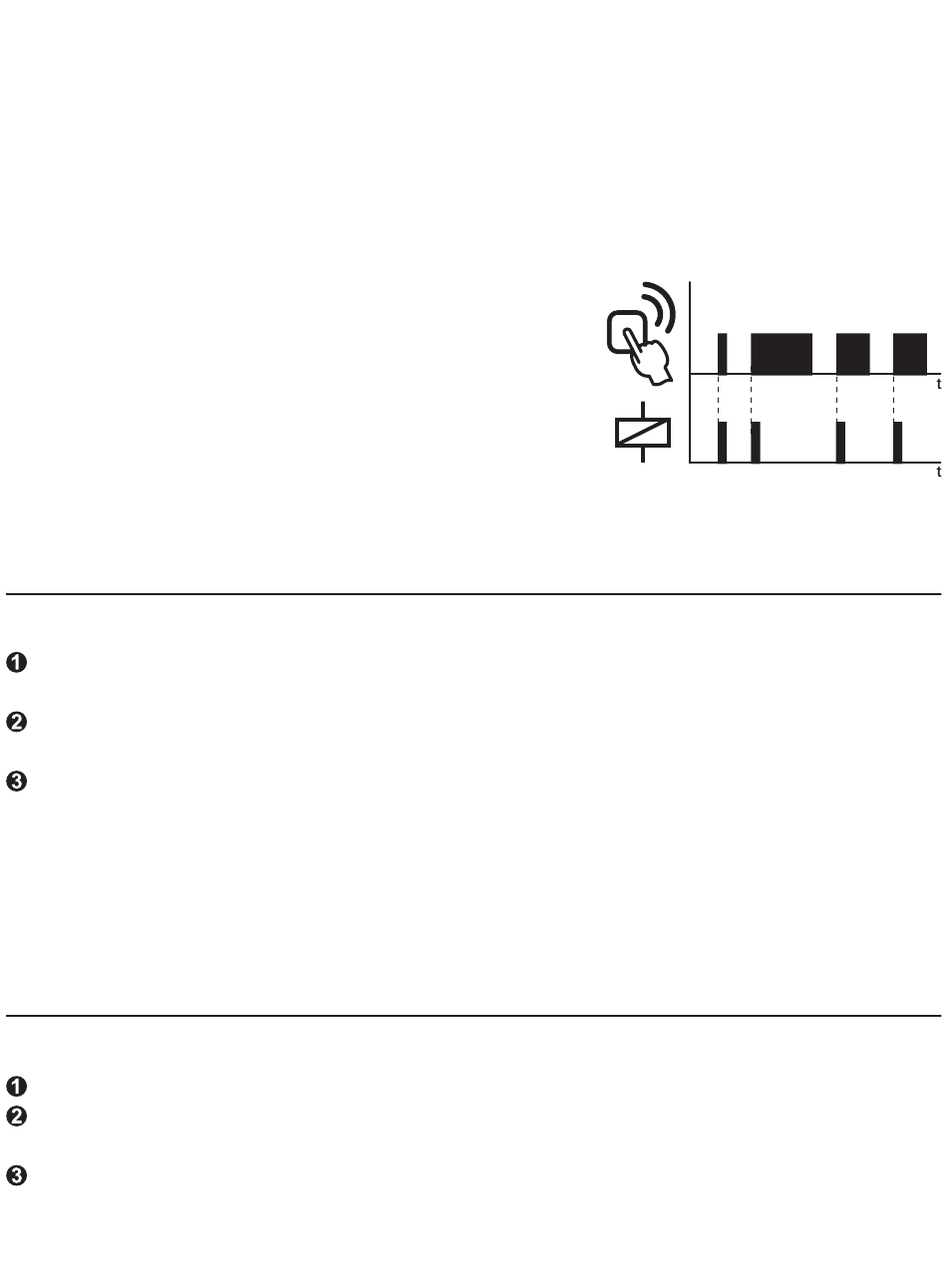

release. The receiver operates in impulse mode
- after receiving a signal from a programmed trans-
mitter it short circuits relay output terminals (11-14)
for about 0,5 seconds.
To improve device operation range it is possible to connect an additional external
antenna to ANT terminal. A connecting cable of maximum section 2,5 mm
the antenna.
REMOTE CONTROLS PROGRAMMING
Press PROG push-button of ROB-01 device for a longer time till LED red
diode switches on (constant signal). Next release PROG push-button.
Press the transmitter's push-button for a longer time. LED red diode switches
on (first signal pulsates, next the signal is constant).
Release the transmitter's push-button. LED red diode switches on (signal
pulsates) and then switches off - THE TRANSMITTER IS ADDED.
An exemplary programming procedure. The procedure for the rest of radio EXTA
FREE transmitters is analogous. CAUTION: Every transmitter can cooperate
with ROB-01 in a different mode, depending on how they were added to the
device. One transmitter can be added during one programming cycle. Full
memory is signalled with pulsating LED red diode.
REMOTE CONTROL DELETION
Press PROG push-button of ROB-01 device for a longer time.
After 5 seconds LED red diode switches on (signal pulsates) and then it
switches off.
Release the push-button in ROB-01 - MEMORY IS DELETED.
