10. Installation of additional memory M.2 2280 (B or B/M)

The memory of the device can be extended by installing the M.2 2280 module in
a socket on the underside underneath a screw-on cover with a B or B/M
connector.
The B/M format is versatile and can be used in both B and M sockets. The M-
format cannot be used in this device. Formats differ in the position of the indentation
and the number of connections.
When buying a memory expansion module, ask your retailer to check if it fits into your
device's slot and if it works properly.
Do not insert the memory module by force, as you may damage the memory
module and the slot, which may lead to the loss of warranty for the device.

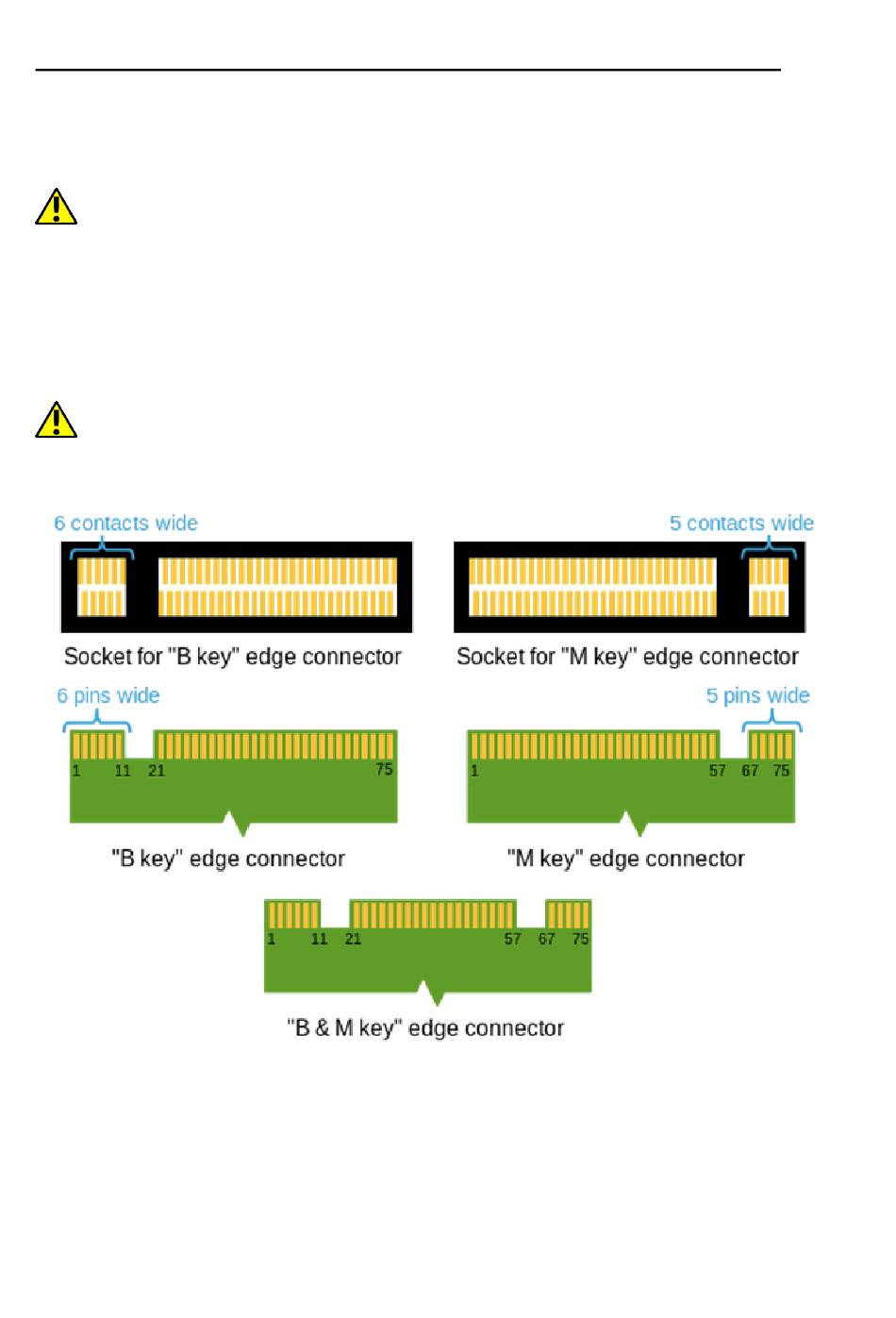

Differences between sockets and connectors B and M. Source: Wikipedia.org
To mount the memory in the device, turn off your computer, and if it is connected
to the power supply, disconnect it, close the cover, and place the device on it. This
is best done on a soft, stable and flat surface (e.g. a dry towel on a table top or
desk) so that the housing is not scratched.
