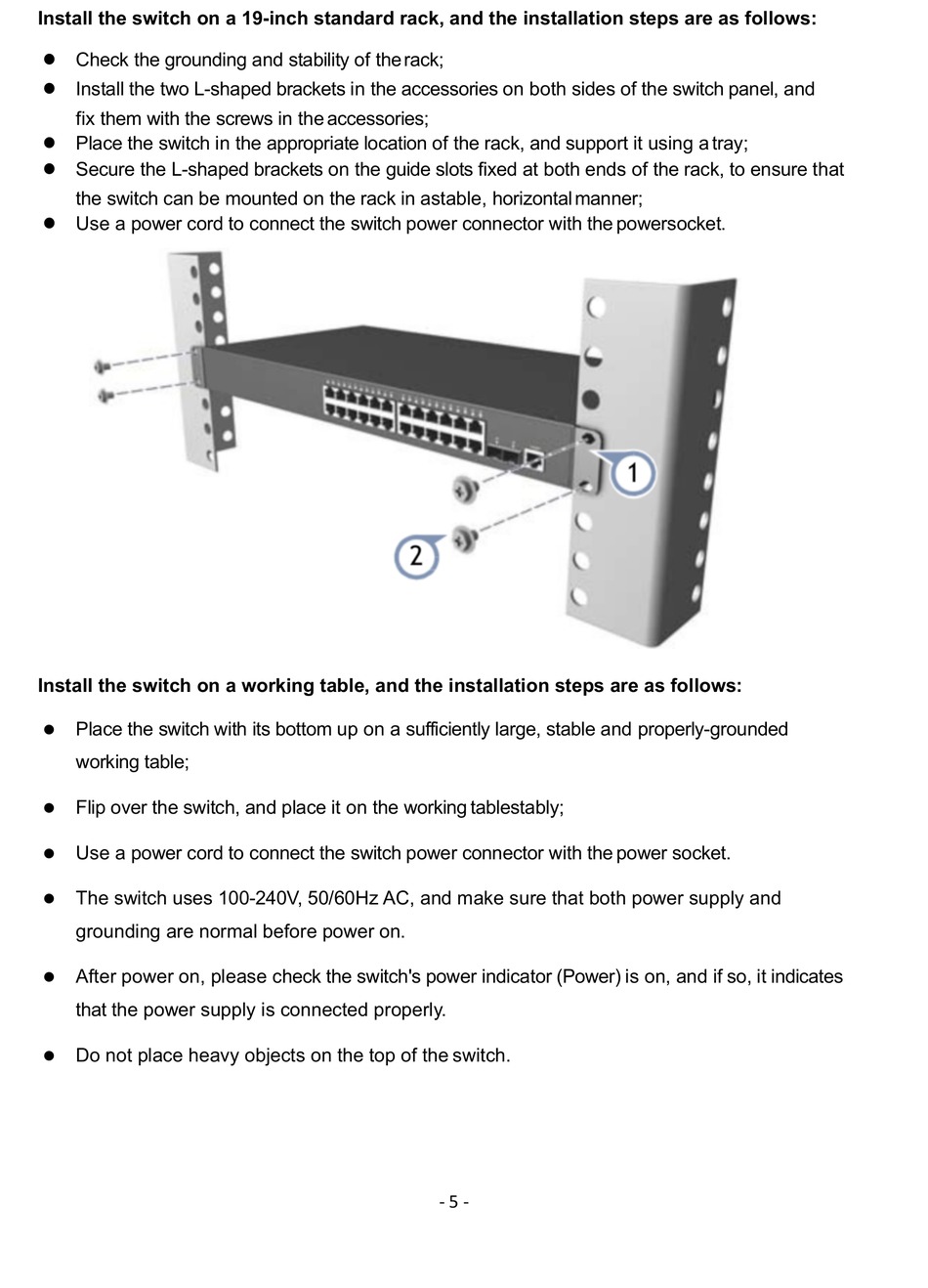

Install the switch on a 19-inch standard rack, and the installation steps are as follows:
l Check the grounding and stability of the rack;
l Install the two L-shaped brackets in the accessories on both sides of the switch panel, and
fix them with the screws in the accessories;
l Place the switch in the appropriate location of the rack, and support it using a tray;
l Secure the L-shaped brackets on the guide slots fixed at both ends of the rack, to ensure that
the switch can be mounted on the rack in astable, horizontal manner;
l Use a power cord to connect the switch power connector with the powersocket.
Install the switch on a working table, and the installation steps are as follows:
Place the switch with its bottom up on a sufficiently large, stable and properly-grounded
l
working table;
Flip over the switch, and place it on the working tablestably;
l
Use a power cord to connect the switch power connector with the power socket.
l
The switch uses 100-240V, 50/60Hz AC, and make sure that both power supply and
l
grounding are normal before power on.
After power on, please check the switch's power indicator (Power) is on, and if so, it indicates
l
that the power supply is connected properly.
Do not place heavy objects on the top of the switch.
l
