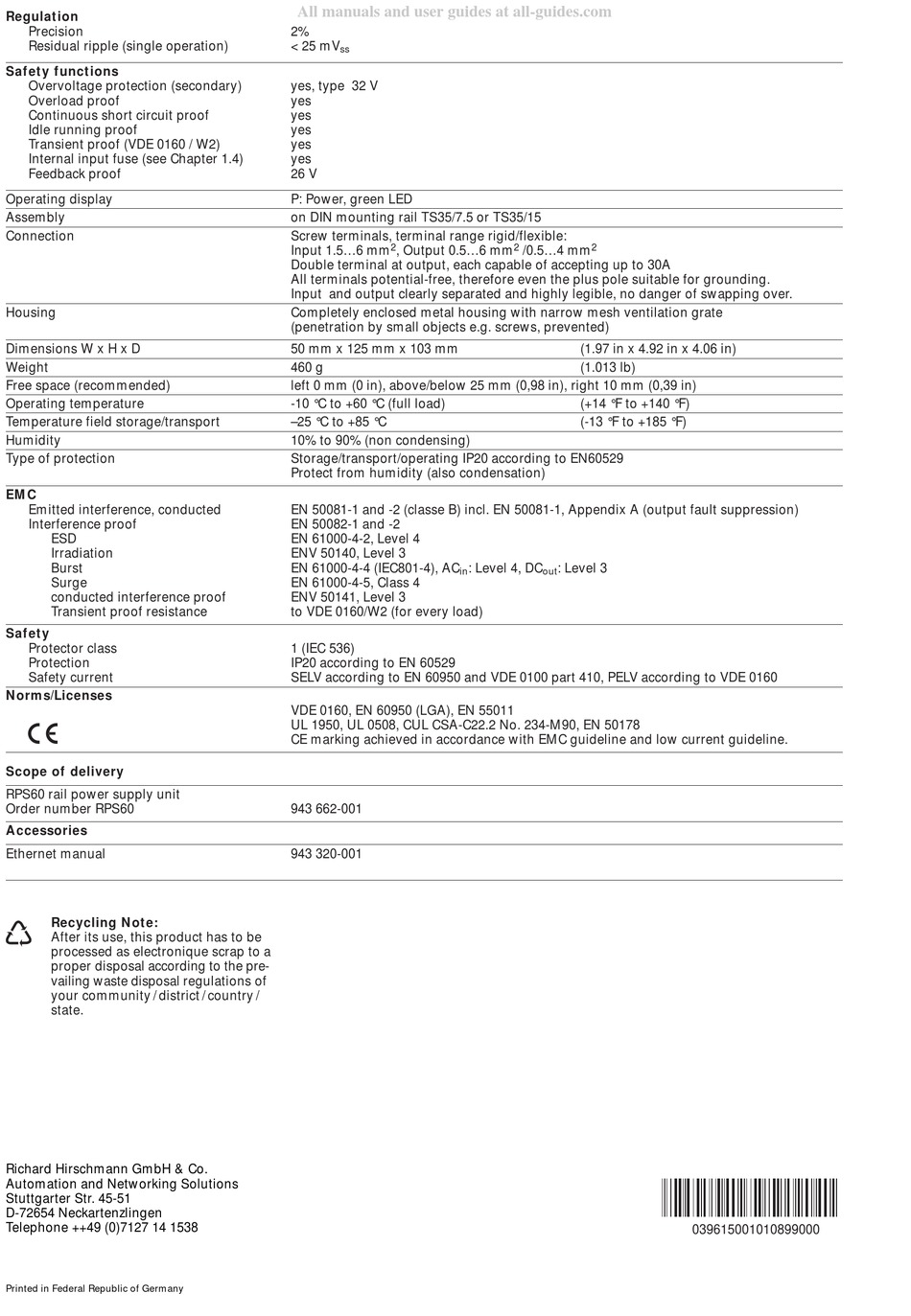

Hirschmann RPS60 Beschreibung Und Betriebsanleitung Seite 8

Regulation
Precision
Residual ripple (single operation)
Safety functions
Overvoltage protection (secondary)
Overload proof
Continuous short circuit proof
Idle running proof
Transient proof (VDE 0160 / W2)
Internal input fuse (see Chapter 1.4)
Feedback proof
Operating display
Assembly
Connection
Housing
Dimensions W x H x D
Weight
Free space (recommended)
Operating temperature
Temperature field storage/transport
Humidity
Type of protection
EMC
Emitted interference, conducted
Interference proof
ESD
Irradiation
Burst
Surge
conducted interference proof
Transient proof resistance
Safety
Protector class
Protection
Safety current
Norms/Licenses
c
Scope of delivery
RPS60 rail power supply unit
Order number RPS60
Accessories
Ethernet manual
Recycling Note:
,
After its use, this product has to be
processed as electronique scrap to a
proper disposal according to the pre-
vailing waste disposal regulations of
your community / district / country /
state.
Richard Hirschmann GmbH & Co.
Automation and Networking Solutions
Stuttgarter Str. 45-51
D-72654 Neckartenzlingen
Telephone ++49 (0)7127 14 1538
Printed in Federal Republic of Germany
All manuals and user guides at all-guides.com
2%
< 25 mV
ss
yes, type 32 V
yes
yes
yes
yes
yes
26 V
P: Power, green LED
on DIN mounting rail TS35/7.5 or TS35/15
Screw terminals, terminal range rigid/flexible:
2
Input 1.5...6 mm , Output 0.5...6 mm
Double terminal at output, each capable of accepting up to 30A
All terminals potential-free, therefore even the plus pole suitable for grounding.
Input and output clearly separated and highly legible, no danger of swapping over.
Completely enclosed metal housing with narrow mesh ventilation grate
(penetration by small objects e.g. screws, prevented)
50 mm x 125 mm x 103 mm
460 g
left 0 mm (0 in), above/below 25 mm (0,98 in), right 10 mm (0,39 in)
-10 °C to +60 °C (full load)
–25 °C to +85 °C
10% to 90% (non condensing)
Storage/transport/operating IP20 according to EN60529
Protect from humidity (also condensation)
EN 50081-1 and -2 (classe B) incl. EN 50081-1, Appendix A (output fault suppression)
EN 50082-1 and -2
EN 61000-4-2, Level 4
ENV 50140, Level 3
EN 61000-4-4 (IEC801-4), AC
in
EN 61000-4-5, Class 4
ENV 50141, Level 3
to VDE 0160/W2 (for every load)
1 (IEC 536)
IP20 according to EN 60529
SELV according to EN 60950 and VDE 0100 part 410, PELV according to VDE 0160
VDE 0160, EN 60950 (LGA), EN 55011
UL 1950, UL 0508, CUL CSA-C22.2 No. 234-M90, EN 50178
CE marking achieved in accordance with EMC guideline and low current guideline.
943 662-001
943 320-001
2 2
/0.5...4 mm
(1.97 in x 4.92 in x 4.06 in)
(1.013 lb)
(+14 °F to +140 °F)
(-13 °F to +185 °F)
: Level 4, DC : Level 3
out
