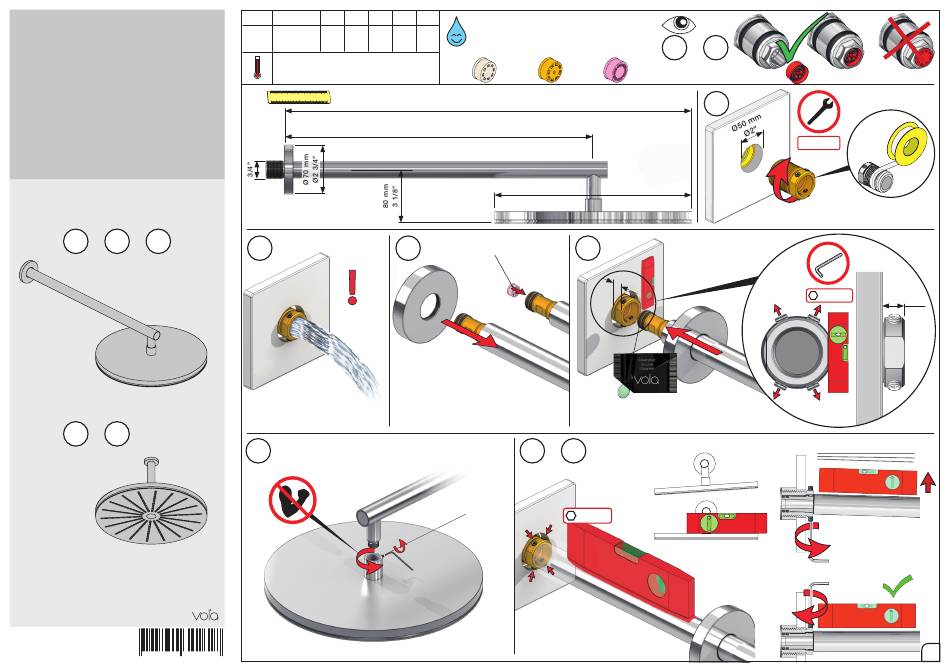

Vola 060 Montageanleitung

VOLA 060 & 060A
Fitting instruction
Montageanleitung
Monteringsvejledning
Monteringsvägledning
Montagehanleiding
Manuel de montage
060:
1 - 6 + 11
060A:
7 - 11
www.vola.com
mnt_060_V2_40998358
5 705230 341828
Data Bar: 1 2 3 4 5
(l/min) 12 18 22 25 29
(Gal/min) 3.4 4.8 5.8 6.6 7.7
Max. 65°C. 150°F
060
393 mm
0 1 2 3 4 5 6 7 8 9 10
-200:
15 1/2"
250 mm
-200:
9 7/8"
2 3
5
VR161 - 060, 060A:
VR161K: 1.8 Gal/min - 7 l/min
VR161D: 2.5 Gal/min - 9 l/min
VR161F: 3.7 Gal/min - 14 l/min
VR161K VR161D
493 mm 593 mm
-100: Std.:
19 1/2" 23 3/8"
350 mm 450 mm
-100: Std.:
13 3/4" 17 3/4"
VR161F: 14 l/min
4
3.7 Gal/min
6 + 11
2,5 mm
4
3
2
1
3 + 10
VR161F
1
Ø286 mm
Ø11 1/4"
VR648
1 + 2
3 + 4
24 mm
4 - 8 mm
2,5 mm
1/8" - 3/8"
1
