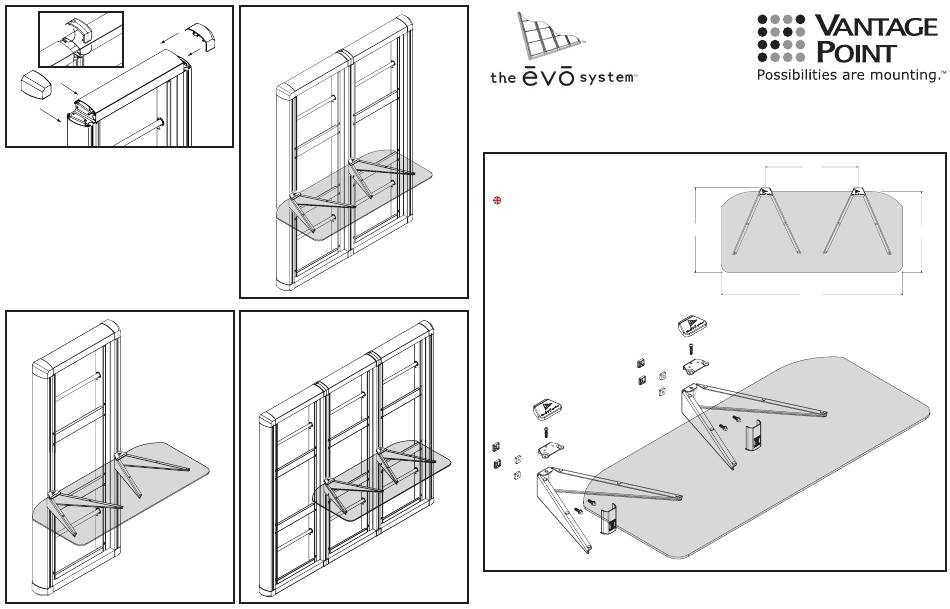

16" Deep Double V-Shelf Bracket
Installation Instructions (E216S)
DESCRIPTION
QTY
ITEM
A
Nut pocket
4
B
Nut plate
4
C
Clamp
2
D
Clamp Screw
2
E
Clamp Plate
2
F
V-bracket shelf
2
G
V-bracket Screw
4
H
V-bracket cover
2
I
Glass shelf
1
A
C
B
F
D
A
E
B
G
F
H
Vantage Point Products Corp • P.O. Box 2485 Santa Fe Springs, CA 90670 USA Tel: 1.800.582.9595
• Canada Tel: 905.607.9994 • Europe Tel: 31.72.581.6056 • Web Site: www.vanptc.com • Email: cons-serv@vanptc.com
18.375
46.67 cm
16.75
42.54 cm
35.875
91.12 cm
16" DOUBLE V-SHELF BRACKET
C
D
E
G
H
I
MAX WEIGHT LOAD: 100 lbs
16
40.64 cm
45.35 kg
Ei06-11/06
