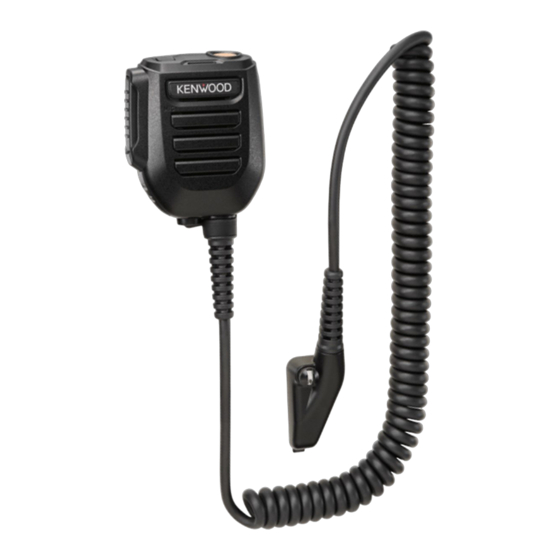

HEADSET/ SPEAKER MICROPHONE/ CLIP MICROPHONE WITH EARPHONE
PRECAUTIONS
This product is exclusively for use with KENWOOD transceivers.
To prevent possible accidents and damages, do not attempt to use this product with other
types of transceivers.
Mishandling may cause the accidents and damages to this product. Please observe the
following prohibitive matters.
• Do not expose the speaker/ microphone to long periods of direct sunlight, nor place it
close to heating appliances.
• Do not drop the speaker/ microphone; strong impacts can damage the internal
components.
• Do not over stress the speaker/ microphone cable by pulling on it with excessive force.
• Keep the volume as low as possible to protect your hearing.
OPERATIONS
To Install
1 Turn the transceiver power OFF.
For transceivers that are able to adjust the volume level, adjust the volume to the
minimum setting before turning the transceiver power OFF.
2 Insert the plug into the speaker/microphone jacks on the transceiver.
3 Attach the microphone and earphone to the appropriate position.
4 Turn the transceiver power ON and adjust the volume level.
To Transmit
1 Press the PTT switch and speak into the microphone.
2 Release the PTT switch to return to receive mode.
© 2015
SIMPLE GUIDE
B5A-1080-00
