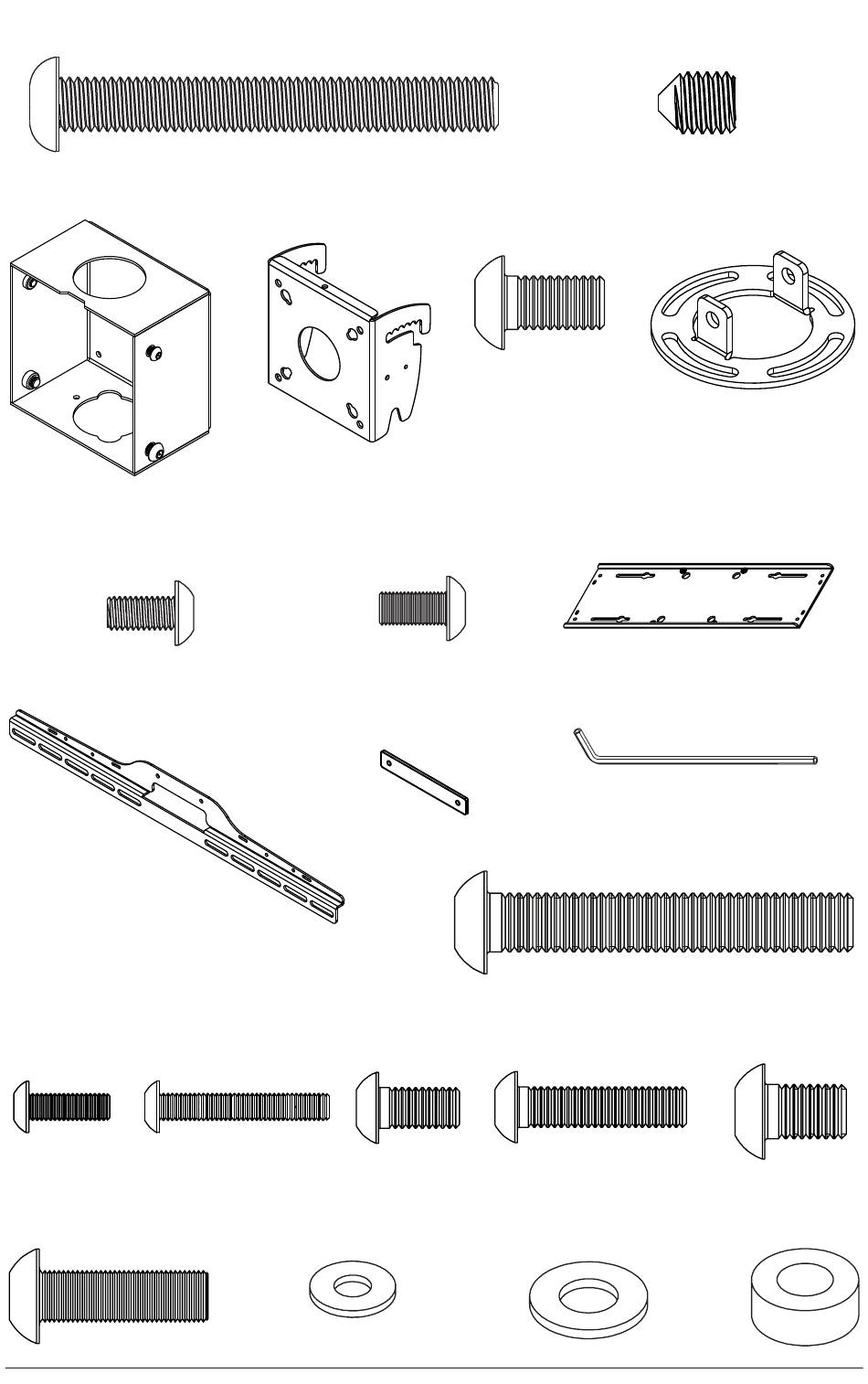

H (1)
tilt box
L (2)
M5 x 10mm
self tapping
O (2)
horizontal bracket
AA ( 4 )
M4 x 12mm
FF ( 4 )
M8 x 25mm
F ( 1 )
M8 x 55mm
BB ( 4 )
M4 x 25mm
GG ( 4 )
M4 washer
I (1)
J (2)
tilt plate
M8 x 15mm
M (8)
M5 x 10mm
P (2)
plate nut
CC ( 4 )
M6 x 12mm
7
G ( 1 )
M10 set screw
N (1)
vertical bracket
JJ ( 1 )
4mm allen wrench
X
KK (4)
M8 x 50mm
DD ( 4 )
M6 x 25mm
HH ( 8 )
M6/M8 washer
2014-02-24
#:203-9378-6
K (1)
support collar
X
EE ( 4 )
M8 x 12mm
II ( 8 )
spacer
