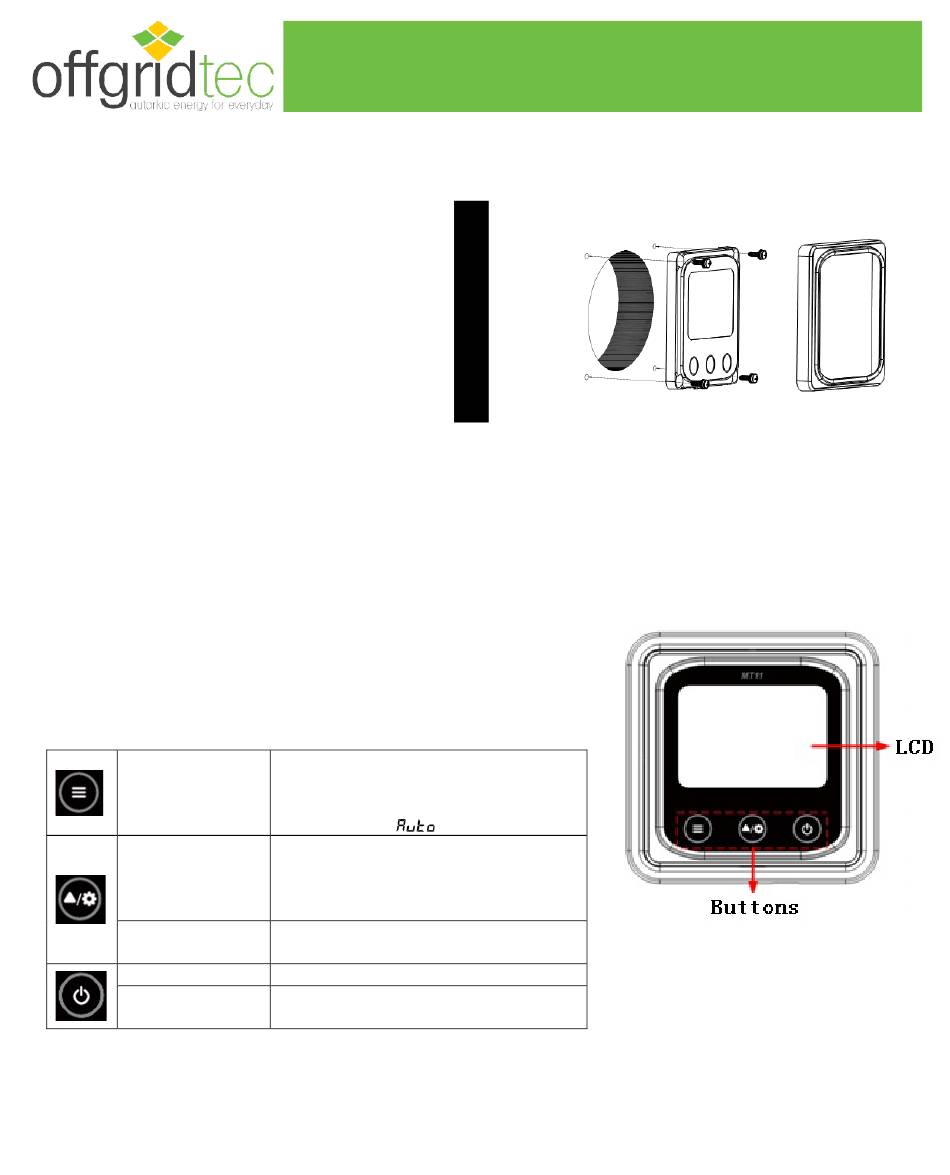

Steps of surface mounting

Step 1:
Locate and drill screw holes based
on the installation size of the Surface.
Step 2:
Remove the decorative shell
Step 3:
Use four M4×8 cross recessed pan
head screws with M4 nuts to mount
MT11 Surface onto the panel.
Step 4:
Install the decorative shell
Note: Take full consideration of the plugging/unplugging space of the communication cable and
the length of the cable during installation to see if they are appropriate.

3. Product Features

3.1.

Front View

LCD display screen
Man-machine interaction operation interface. Refer to the chapter 5
display and operation
Buttons
The meter buttons include two function buttons and one switch button.
Press the button
Press the button
Press the button
and hold on 5s
Press the button
Press the button
and hold on 5s
