English

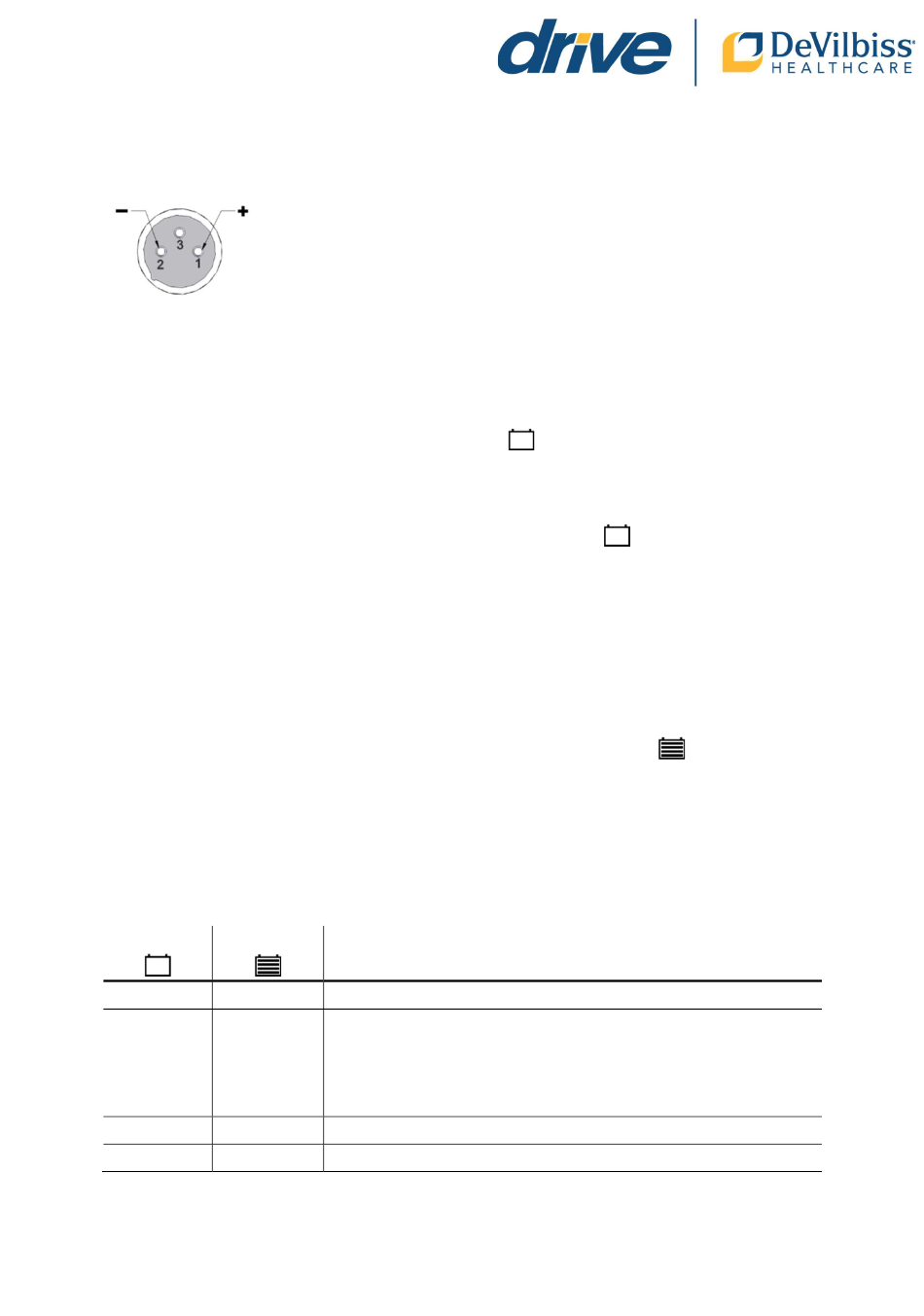

XLR front view:
In this case, please consult the supplier for more information.
Operation:
After the battery charger has been positioned or mounted correctly, connect the battery
charger to the mains grid. The orange LED , marked
This is the stand-by position indicating that no battery is connected.
Connect the battery cable to the battery or the equipment in where the batteries are
mounted. After 3 seconds the battery charger has detected if the battery can be charged.
If yes, it will start the charging process. The orange LED marked
clicking sounds can be heard from inside the battery charger. This is normal.
If the battery is charged fully very recently, it is possible that the charging will not start.
The orange LED will keep blinking slowly until the voltage has dropped enough to enable
charging.
Depending on the state of charge and the battery capacity the charging process will take
minimal 1 and maximal 24 hours.
End of charge:
If the battery charger detects the battery is full, the green LED, marked
The battery may be disconnected and used. However, if the battery will not be used directly,
it is recommended to leave the charger connected. The battery charger will keep the battery
in optimal charged condition by applying a maintenance charge periodically. Also here some
clicking sounds can be heard from inside the battery charger. This is normal.
LED indication overview:
Orange LED Green LED
Off Off
Blinking Off
On Off
Off On
Pins 1 is the plus (+) and pin 2 is the minus (-).
Pin 3 is the inhibit signal for preventing unsafe actions of the
application to be charged.
It is possible that your supplier provided a different connection type.
Description:
Battery charger not connected to the mains.
1: Battery charger connected to the mains and no battery
connected.
2: Battery charger connected to the mains and the connected
battery is full.
The battery is charging
The battery is full.
14
will start to blink slowly.
turns on. Also some
.
turns on.
