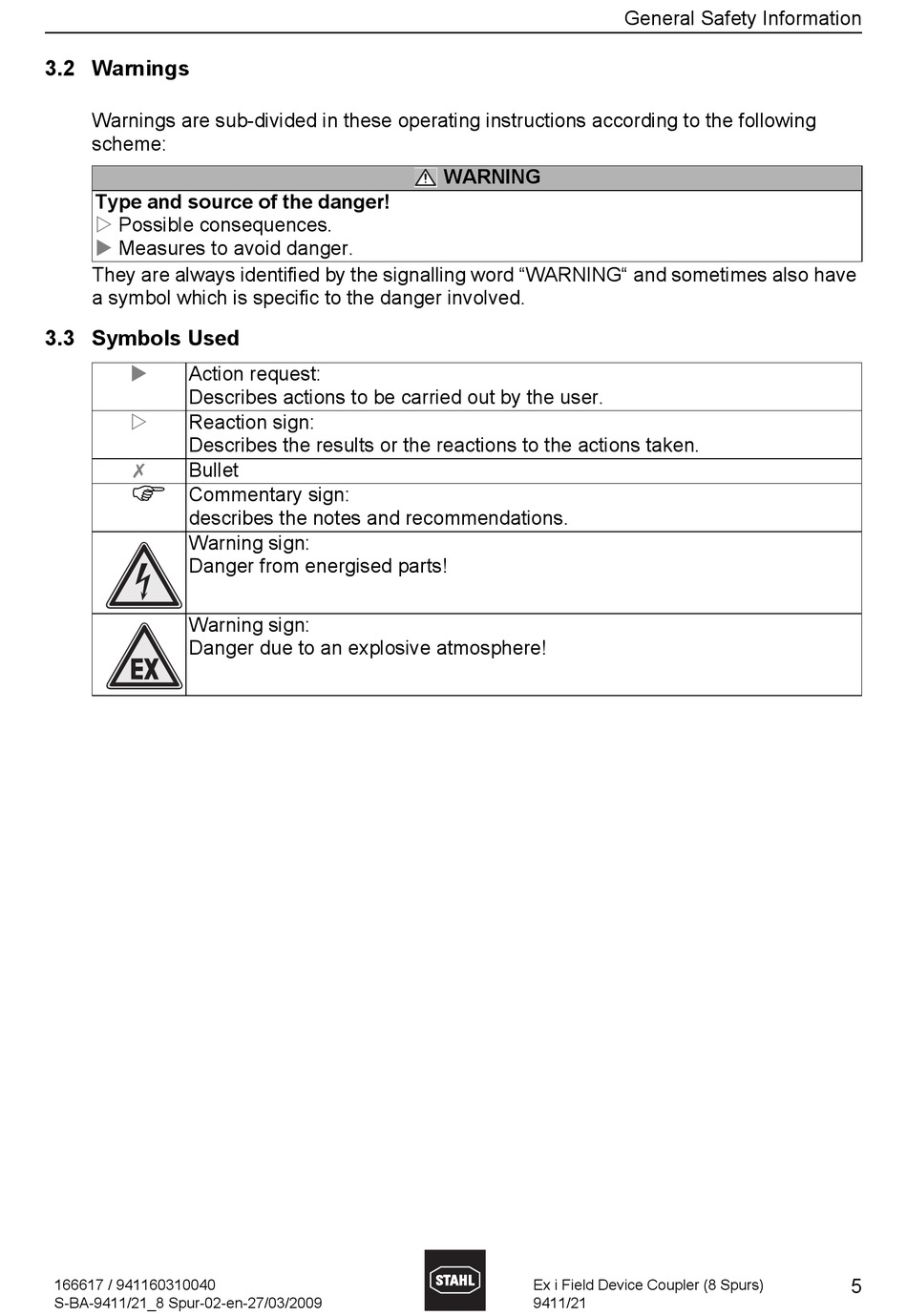

3.2 Warnings
Warnings are sub-divided in these operating instructions according to the following
scheme:
Type and source of the danger!
Possible consequences.
Measures to avoid danger.
They are always identified by the signalling word "WARNING" and sometimes also have
a symbol which is specific to the danger involved.

3.3 Symbols Used

Action request:
Describes actions to be carried out by the user.
Reaction sign:
Describes the results or the reactions to the actions taken.
Bullet
X
Commentary sign:
describes the notes and recommendations.
Warning sign:
Danger from energised parts!
Warning sign:
Danger due to an explosive atmosphere!
166617 / 941160310040
S-BA-9411/21_8 Spur-02-en-27/03/2009
WARNING
Ex i Field Device Coupler (8 Spurs)
9411/21
General Safety Information
5
