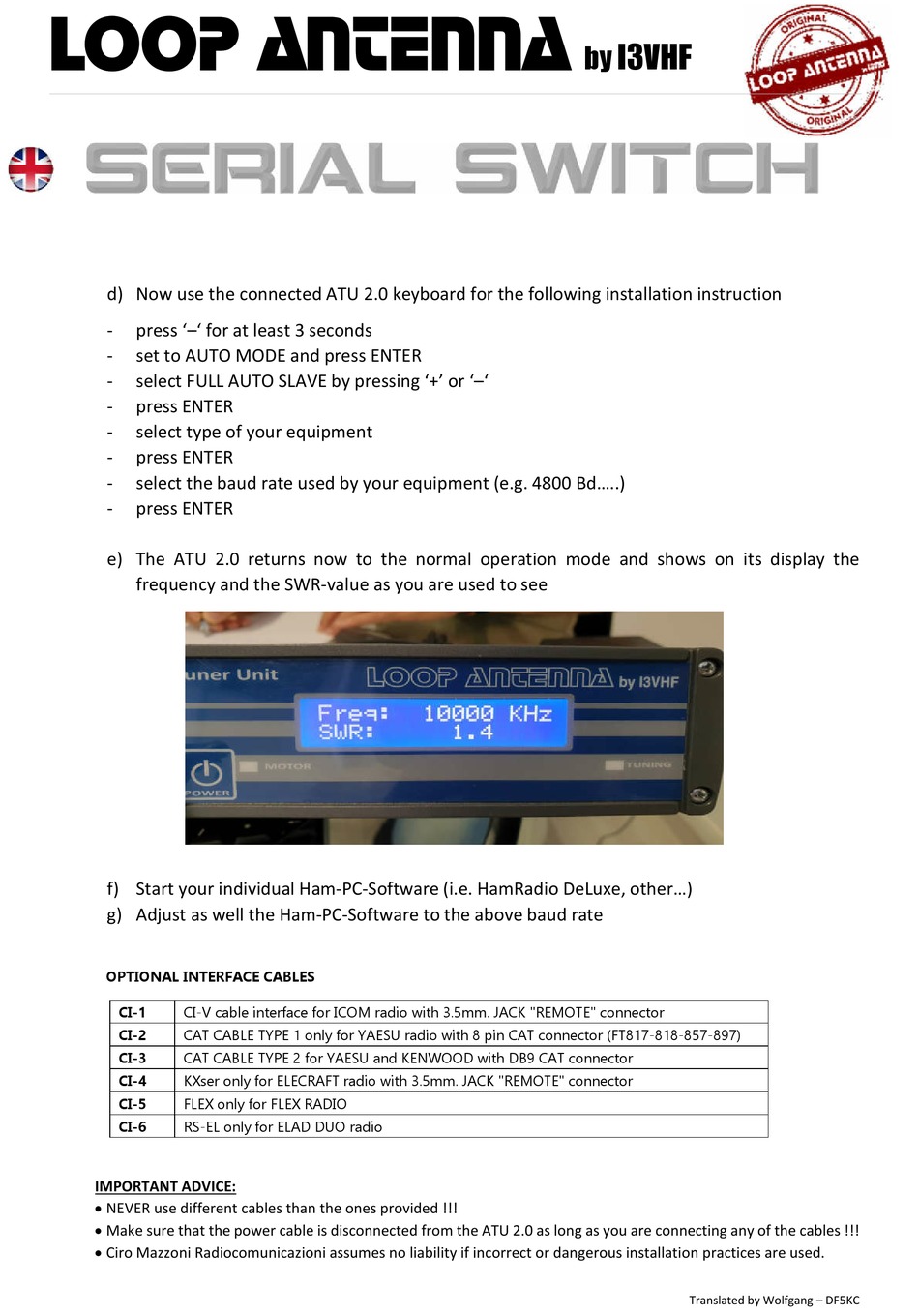

LOOP I3VHF Kurzanleitung Seite 4

LOOP ANTENNA
d) Now use the connected ATU 2.0 keyboard for the following installation instruction
- press '–' for at least 3 seconds
- set to AUTO MODE and press ENTER
- select FULL AUTO SLAVE by pressing '+' or '–'
- press ENTER
- select type of your equipment
- press ENTER
- select the baud rate used by your equipment (e.g. 4800 Bd.....)
- press ENTER
e) The ATU 2.0 returns now to the normal operation mode and shows on its display the
frequency and the SWR-value as you are used to see
f) Start your individual Ham-PC-Software (i.e. HamRadio DeLuxe, other...)
g) Adjust as well the Ham-PC-Software to the above baud rate
OPTIONAL INTERFACE CABLES
CI-1 CI-V cable interface for ICOM radio with 3.5mm. JACK "REMOTE" connector
CI-2 CAT CABLE TYPE 1 only for YAESU radio with 8 pin CAT connector (FT817-818-857-897)
CI-3 CAT CABLE TYPE 2 for YAESU and KENWOOD with DB9 CAT connector
CI-4 KXser only for ELECRAFT radio with 3.5mm. JACK "REMOTE" connector
CI-5 FLEX only for FLEX RADIO
CI-6 RS-EL only for ELAD DUO radio
IMPORTANT ADVICE:
 NEVER use different cables than the ones provided !!!
 Make sure that the power cable is disconnected from the ATU 2.0 as long as you are connecting any of the cables !!!
 Ciro Mazzoni Radiocomunicazioni assumes no liability if incorrect or dangerous installation practices are used.
I3VHF
by
Translated by Wolfgang – DF5KC
