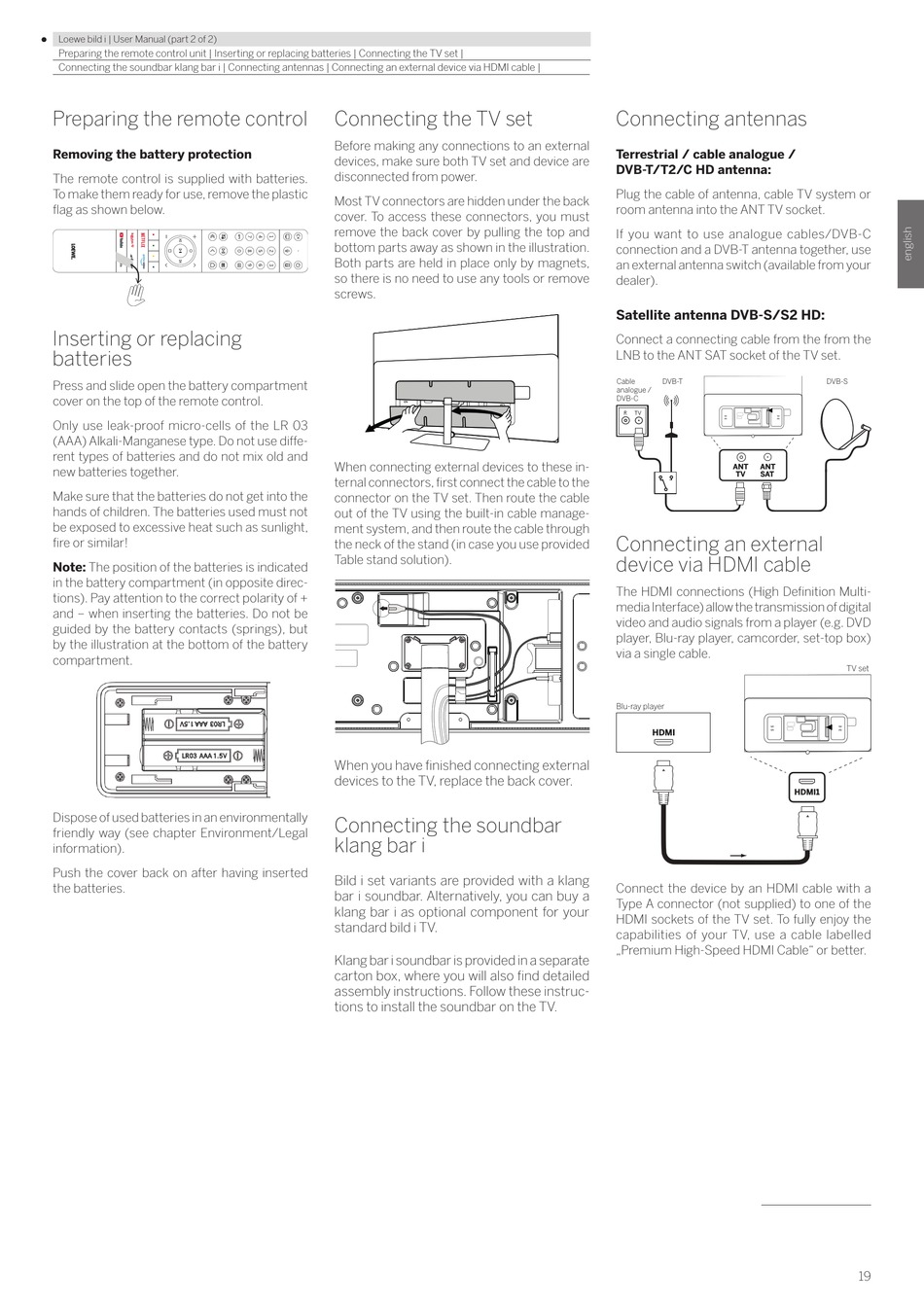

Preparing the remote control unit | Inserting or replacing batteries | Connecting the TV set |
Connecting the soundbar klang bar i | Connecting antennas | Connecting an external device via HDMI cable |

Preparing the remote control

Removing the battery protection
The remote control is supplied with batteries.
To make them ready for use, remove the plastic
flag as shown below.
Inserting or replacing
batteries
Press and slide open the battery compartment
cover on the top of the remote control.
Only use leak-proof micro-cells of the LR 03
(AAA) Alkali-Manganese type. Do not use diffe-
rent types of batteries and do not mix old and
new batteries together.
Make sure that the batteries do not get into the
hands of children. The batteries used must not
be exposed to excessive heat such as sunlight,
fire or similar!
Note: The position of the batteries is indicated
in the battery compartment (in opposite direc-
tions). Pay attention to the correct polarity of +
and – when inserting the batteries. Do not be
guided by the battery contacts (springs), but
by the illustration at the bottom of the battery
compartment.
Dispose of used batteries in an environmentally
friendly way (see chapter Environment/Legal
information).
Push the cover back on after having inserted
the batteries.

Connecting the TV set

Before making any connections to an external
devices, make sure both TV set and device are
disconnected from power.
Most TV connectors are hidden under the back
cover. To access these connectors, you must
remove the back cover by pulling the top and
bottom parts away as shown in the illustration.
Both parts are held in place only by magnets,
so there is no need to use any tools or remove
screws.
When connecting external devices to these in-
ternal connectors, first connect the cable to the
connector on the TV set. Then route the cable
out of the TV using the built-in cable manage-
ment system, and then route the cable through
the neck of the stand (in case you use provided
Table stand solution).
When you have finished connecting external
devices to the TV, replace the back cover.
Connecting the soundbar
klang bar i
Bild i set variants are provided with a klang
bar i soundbar. Alternatively, you can buy a
klang bar i as optional component for your
standard bild i TV.
Klang bar i soundbar is provided in a separate
carton box, where you will also find detailed
assembly instructions. Follow these instruc-
tions to install the soundbar on the TV.

Connecting antennas

Terrestrial / cable analogue /
DVB-T/T2/C HD antenna:
Plug the cable of antenna, cable TV system or
room antenna into the ANT TV socket.
If you want to use analogue cables/DVB-C
connection and a DVB-T antenna together, use
an external antenna switch (available from your
dealer).
Satellite antenna DVB-S/S2 HD:
Connect a connecting cable from the from the
LNB to the ANT SAT socket of the TV set.
Cable D V B T -
analogue /
DVB-C
R TV
ANT ANT
TV SAT
Connecting an external
device via HDMI cable
The HDMI connections (High Definition Multi-
media Interface) allow the transmission of digital
video and audio signals from a player (e.g. DVD
player, Blu-ray player, camcorder, set-top box)
via a single cable.
Blu-ray player
HDMI
Connect the device by an HDMI cable with a
Type A connector (not supplied) to one of the
HDMI sockets of the TV set. To fully enjoy the
capabilities of your TV, use a cable labelled
„Premium High-Speed HDMI Cable" or better.
D V B S -
TV set
HDMI1
19
