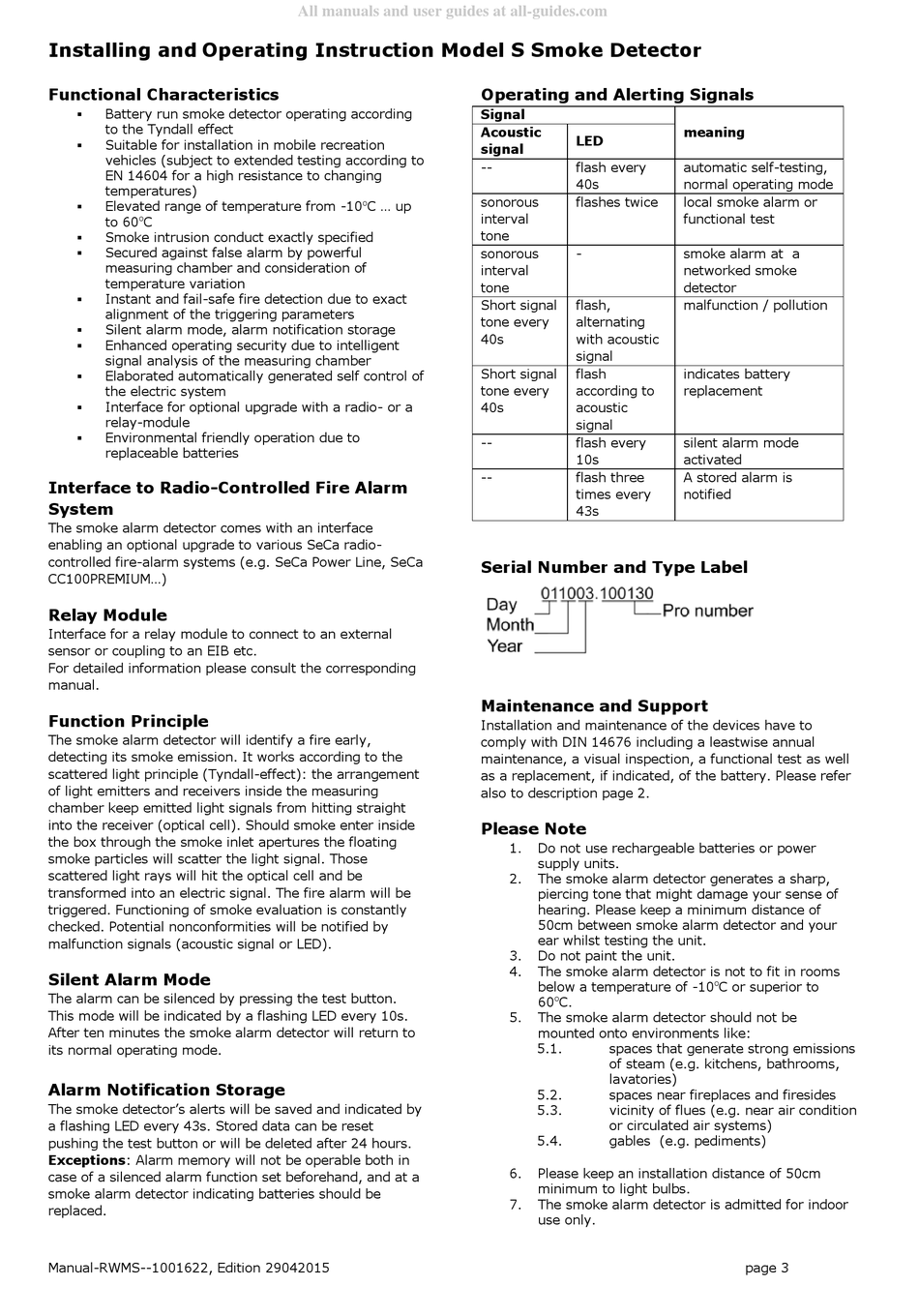

Installing and Operating Instruction Model S Smoke Detector
Functional Characteristics
Battery run smoke detector operating according
to the Tyndall effect
Suitable for installation in mobile recreation
vehicles (subject to extended testing according to
EN 14604 for a high resistance to changing
temperatures)
Elevated range of temperature from -10
o
to 60
C
Smoke intrusion conduct exactly specified
Secured against false alarm by powerful
measuring chamber and consideration of
temperature variation
Instant and fail-safe fire detection due to exact
alignment of the triggering parameters
Silent alarm mode, alarm notification storage
Enhanced operating security due to intelligent
signal analysis of the measuring chamber
Elaborated automatically generated self control of
the electric system
Interface for optional upgrade with a radio- or a
relay-module
Environmental friendly operation due to
replaceable batteries
Interface to Radio-Controlled Fire Alarm
System
The smoke alarm detector comes with an interface
enabling an optional upgrade to various SeCa radio-
controlled fire-alarm systems (e.g. SeCa Power Line, SeCa
CC100PREMIUM...)
Relay Module
Interface for a relay module to connect to an external
sensor or coupling to an EIB etc.
For detailed information please consult the corresponding
manual.
Function Principle
The smoke alarm detector will identify a fire early,
detecting its smoke emission. It works according to the
scattered light principle (Tyndall-effect): the arrangement
of light emitters and receivers inside the measuring
chamber keep emitted light signals from hitting straight
into the receiver (optical cell). Should smoke enter inside
the box through the smoke inlet apertures the floating
smoke particles will scatter the light signal. Those
scattered light rays will hit the optical cell and be
transformed into an electric signal. The fire alarm will be
triggered. Functioning of smoke evaluation is constantly
checked. Potential nonconformities will be notified by
malfunction signals (acoustic signal or LED).
Silent Alarm Mode
The alarm can be silenced by pressing the test button.
This mode will be indicated by a flashing LED every 10s.
After ten minutes the smoke alarm detector will return to
its normal operating mode.
Alarm Notification Storage
The smoke detector's alerts will be saved and indicated by
a flashing LED every 43s. Stored data can be reset
pushing the test button or will be deleted after 24 hours.
Exceptions: Alarm memory will not be operable both in
case of a silenced alarm function set beforehand, and at a
smoke alarm detector indicating batteries should be
replaced.
Manual-RWMS--1001622, Edition 29042015
All manuals and user guides at all-guides.com
o
C ... up
Operating and Alerting Signals
Signal
Acoustic
LED
signal
--
flash every
40s
sonorous
flashes twice
interval
tone
sonorous
-
interval
tone
Short signal
flash,
tone every
alternating
40s
with acoustic
signal
Short signal
flash
tone every
according to
40s
acoustic
signal
--
flash every
10s
--
flash three
times every
43s
Serial Number and Type Label
Maintenance and Support
Installation and maintenance of the devices have to
comply with DIN 14676 including a leastwise annual
maintenance, a visual inspection, a functional test as well
as a replacement, if indicated, of the battery. Please refer
also to description page 2.
Please Note
1.
Do not use rechargeable batteries or power
supply units.
2.
The smoke alarm detector generates a sharp,
piercing tone that might damage your sense of
hearing. Please keep a minimum distance of
50cm between smoke alarm detector and your
ear whilst testing the unit.
3.
Do not paint the unit.
4.
The smoke alarm detector is not to fit in rooms
below a temperature of -10
o
60
C.
5.
The smoke alarm detector should not be
mounted onto environments like:
5.1.
spaces that generate strong emissions
of steam (e.g. kitchens, bathrooms,
lavatories)
5.2.
spaces near fireplaces and firesides
5.3.
vicinity of flues (e.g. near air condition
or circulated air systems)
5.4.
gables (e.g. pediments)
6.
Please keep an installation distance of 50cm
minimum to light bulbs.
7.
The smoke alarm detector is admitted for indoor
use only.
meaning
automatic self-testing,
normal operating mode
local smoke alarm or
functional test
smoke alarm at a
networked smoke
detector
malfunction / pollution
indicates battery
replacement
silent alarm mode
activated
A stored alarm is
notified
o
C or superior to
page 3
