MikroTik RBD25G-5HPacQD2HPnD Kurzanleitung

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v6.46 or the latest version to ensure compliance with local authority regulations!
It is the end users responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed.

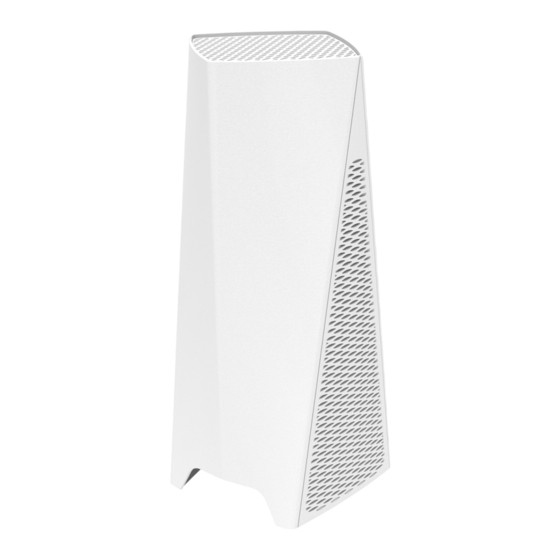

This document covers models: (RBD25G-5HPacQD2HPnD (Audience), RBD25GR-5HPacQD2HPnD&R11e-LTE6 (Audience LTE6 kit)).
This is Wireless Network Device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, brochures, and more info about products at
Configuration manual for software in your language with additional information can be found
MikroTik devices are for professional use. If you do not have qualifications please seek a
This Device accepts input of a 24V DC power adapter, which is provided in the original packaging of this device. This Device can be powered via
a DC jack or using a PoE injector (Provided in the packaging).
First steps:
Insert Micro SIM card, only the LTE6 model.
For the ( RBD25G-5HPacQD2HPnD (Audience))
issue an automatic IP address.
Plug the included power adapter to start up the device.
The device will boot up, the front led indicator will light in solid blue, and the Wireless network will be available for connecting.
Open network connections on your PC and search for MikroTik wireless network and connect to it.
Once connected to the wireless network, open
be logged in automatically.
Click the (Check for updates) button and update your RouterOS software to the latest version, LTE6 model needs to have a valid SIM card.
Choose (WebFig) tab, on the left menu, choose (CAPsMAN).
Click on the (Security Cfg).
Click to add new:
Choose (Authentication Type: WPA PSK, WPA2 PSK;
Encryption: aes ccm;
Passphrase: strongwirelesspassword;)
Click OK.
Click on the (Configurations) tab.
Choose one interface example: cfg-2ghz.
Find the (Security) and choose the previously created profile: security1.
Find the (Country) and set your Country.
Click OK.
Same for the cfg-5ghz-ac interface.
On the left menu choose (System>Password).
Enter the password for the device and click (Change).
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general
public.
Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v6.46 или най-новата версия, за да се гарантира спазването на местните
регулаторни разпоредби.
Крайните потребители са отговорни за спазването на местните разпоредби, включително работата в рамките на законни честотни канали,
извеждане на продукция изисквания за захранване, окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства
на MikroTik трябва да бъдат професионално инсталиран.
Този документ обхваща модели: (RBD25G-5HPacQD2HPnD (Audience), RBD25GR-5HPacQD2HPnD & R11e-LTE6 (Audience LTE6 kit))
https://mt.lv/um for the full up to date user manual. Or scan the QR code with your mobile phone.
, model connect ISP cable to the first Ethernet port. Make sure the ISP is allowing hardware change and will
https://192.168.88.1
This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
https://mikrotik.com/products
at https://mt.lv/help
consultant https://mikrotik.com/consultants
in your web browser to start configuration, since there is no password by default, you will
