• Never use the device when it has been damaged, has fallen off or fails to work perfectly.
• Check the device, power cord and mains plug regularly for any visual damage. If any damage has
been detected, do not use the device under any circumstances. Do not attempt to repair the device
yourself.
• Repair work must only be carried out by qualified and specialized staff.
• Only use the device for the intended use.
• The device is only for use in private households and not designed for commercial use.

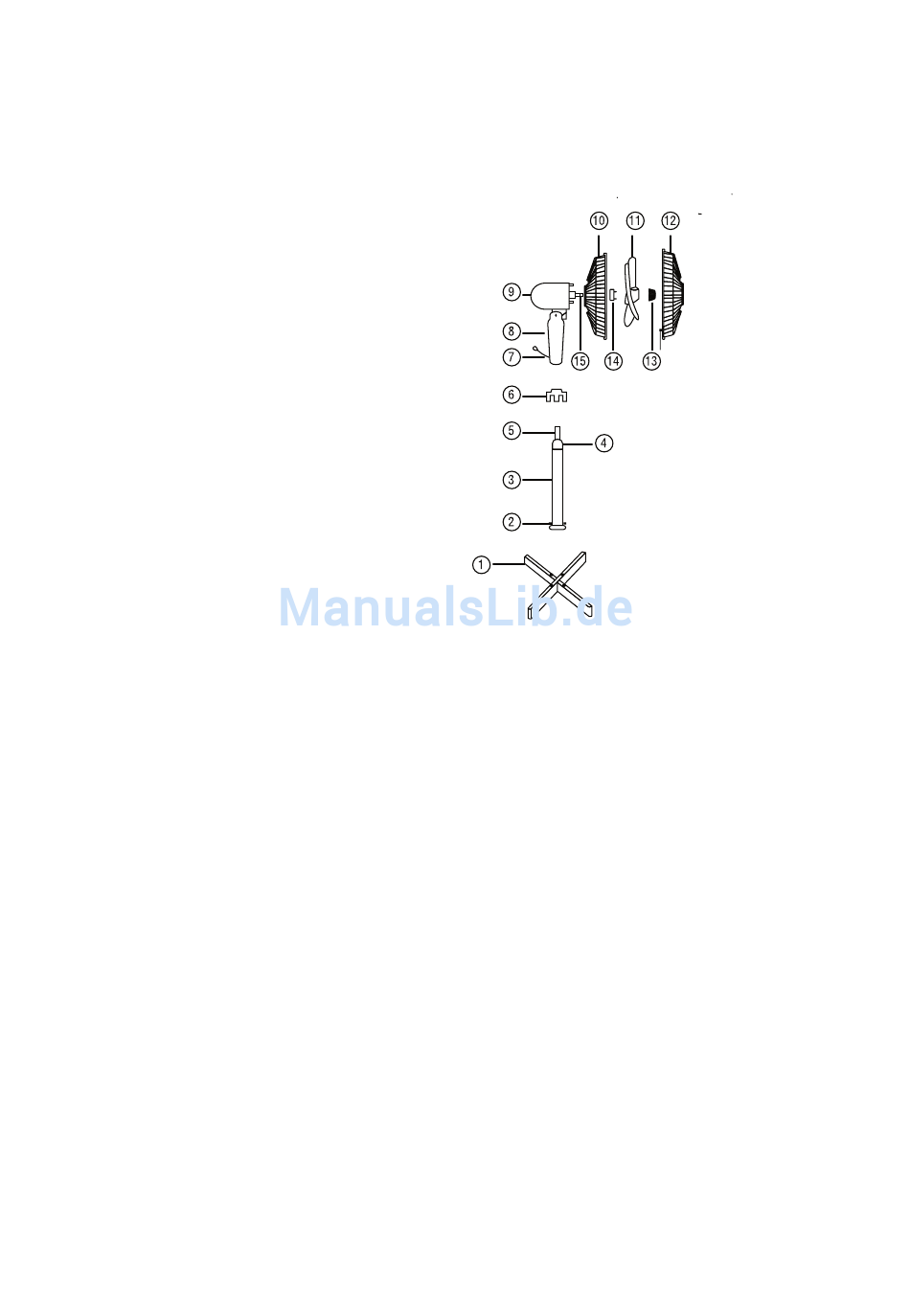

DEVICE OVERVIEW

1. Rest foot
2. Connector for rest foot
3. Pedestal
4. Blocking ring
5. Inner tube
6. Pedestal cover
7. Fixing screw
8. Control
9. Motor
10. Rear safety guard
11. Impeller
12. Front safety guard
13. Setting knob for impeller
14. Retaining ring
15. Motor spindle

WHEN USING FOR FIRST TIME

• Take all the device components out of the packaging and remove all packaging material and
enclosures.
• Remove the screws from the rest foot parts. Assemble the rest foot together in the shape of a cross.
• Place the pedestals with the rest foot connector onto the assembled rest foot. Be careful to ensure
the holes in the connector are correctly aligned over the screw threads of the rest foot.
• Insert the screws through the holes and thereby connect the rest foot to the pedestals. Ensure the
screws are screwed tightly. CAUTION: the screws must not be canted!
• Loosen the blocking ring by turning anti-clockwise and then pull it completely away from the
pedestals. Insert the pedestal cover with the rectangular spaces underneath and over the
pedestals. Pull out the inner tube. Now reposition the blocking ring over the pedestals and turn it to
secure it (clockwise).
• Push the control firmly onto the inner tube. Use one hand to keep the inner tube steady, to ensure
that it does not get pushed downward under the pressure. Turn and secure the fixing screws in
place.
• Remove the rubber protection from the motor spindle shaft. Screw in the retaining ring of the motor
spindle.
• Position the rear safety guard on the motor. Be careful when doing so to ensure the vertical squares
of the safety guard are positioned over the plastic nipples of the motor. Also ensure that the bore
in the area of the safety guard is pointing downward. Now screw the retaining ring back onto the
motor spindle and ensure it is secured.
• Now insert the impeller onto the motor spindle. Be careful to ensure that the squares on the inner
sides of the impeller are positioned over the diagonally situated splint of the motor spindle.
• Screw the fixing screws of the impeller onto the motor spindle. CAUTION: the fixing screws are
screwed in an anti-clockwise direction, namely to the left! Keep the impeller secured while doing so.
• Place the front safety guard onto the rear safety guard. To do so, attach a connector to the top of
the rear safety guard. Be careful when doing so to ensure both the lower holes of the safety guard
are aligned. Insert screws in front through both holes and secure these with the screw nut. Now
lock the four clamping devices in place to ensure both safety guards are securely connected.
