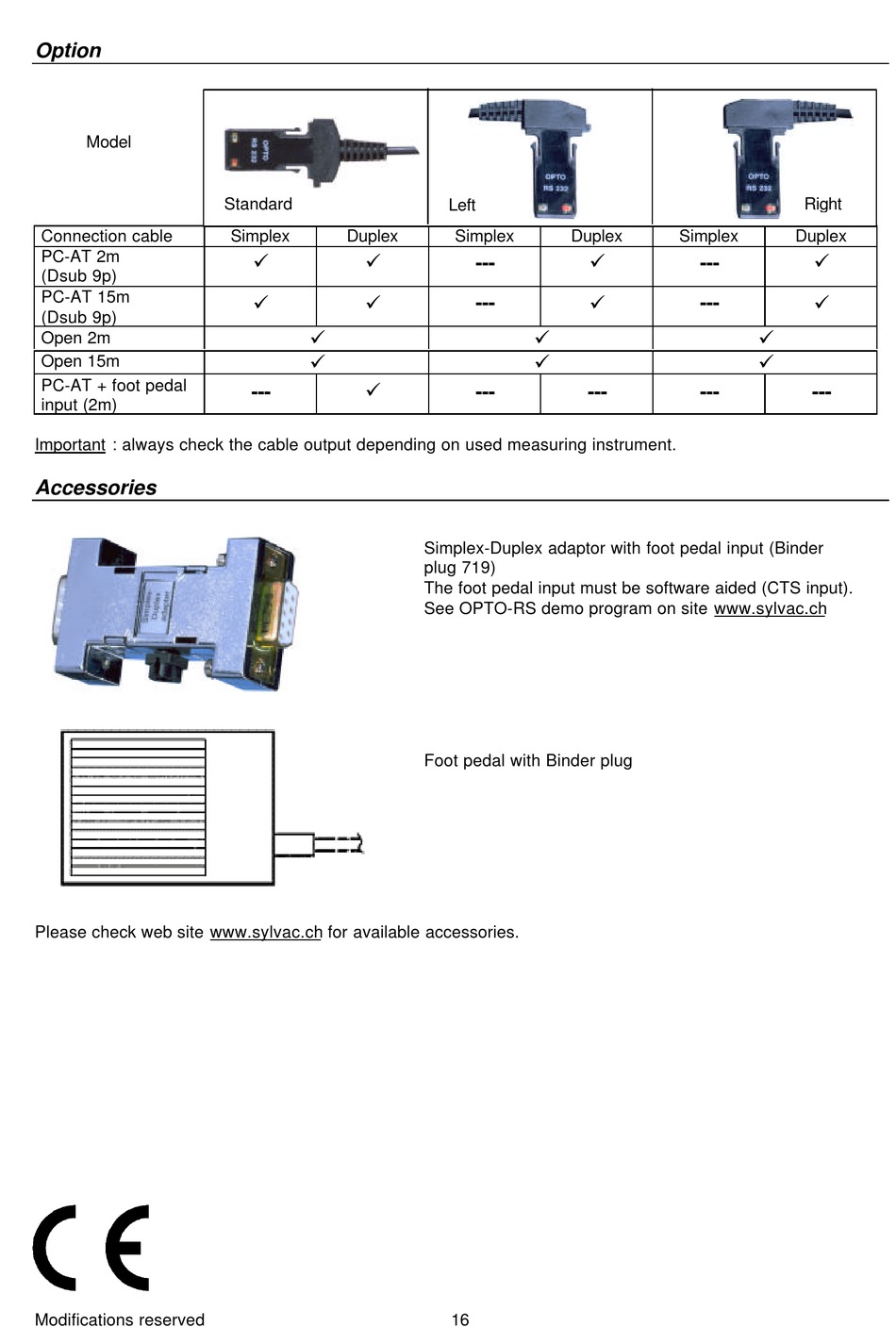

Option
Model
Connection cable
PC-AT 2m
(Dsub 9p)
PC-AT 15m
(Dsub 9p)
Open 2m
Open 15m
PC-AT + foot pedal
input (2m)
Important : always check the cable output depending on used measuring instrument.
Accessories
Please check web site www.sylvac.ch for available accessories.
Modifications reserved
Standard
Simplex Duplex
ü ü
ü ü
ü
ü
ü
---
Left
Simplex Duplex
ü
---
ü
---
ü
ü
--- ---
Simplex-Duplex adaptor with foot pedal input (Binder
plug 719)
The foot pedal input must be software aided (CTS input).
See OPTO-RS demo program on site www.sylvac.ch
Foot pedal with Binder plug
16
Right
Simplex Duplex
ü
---
ü
---
ü
ü
--- ---
