4

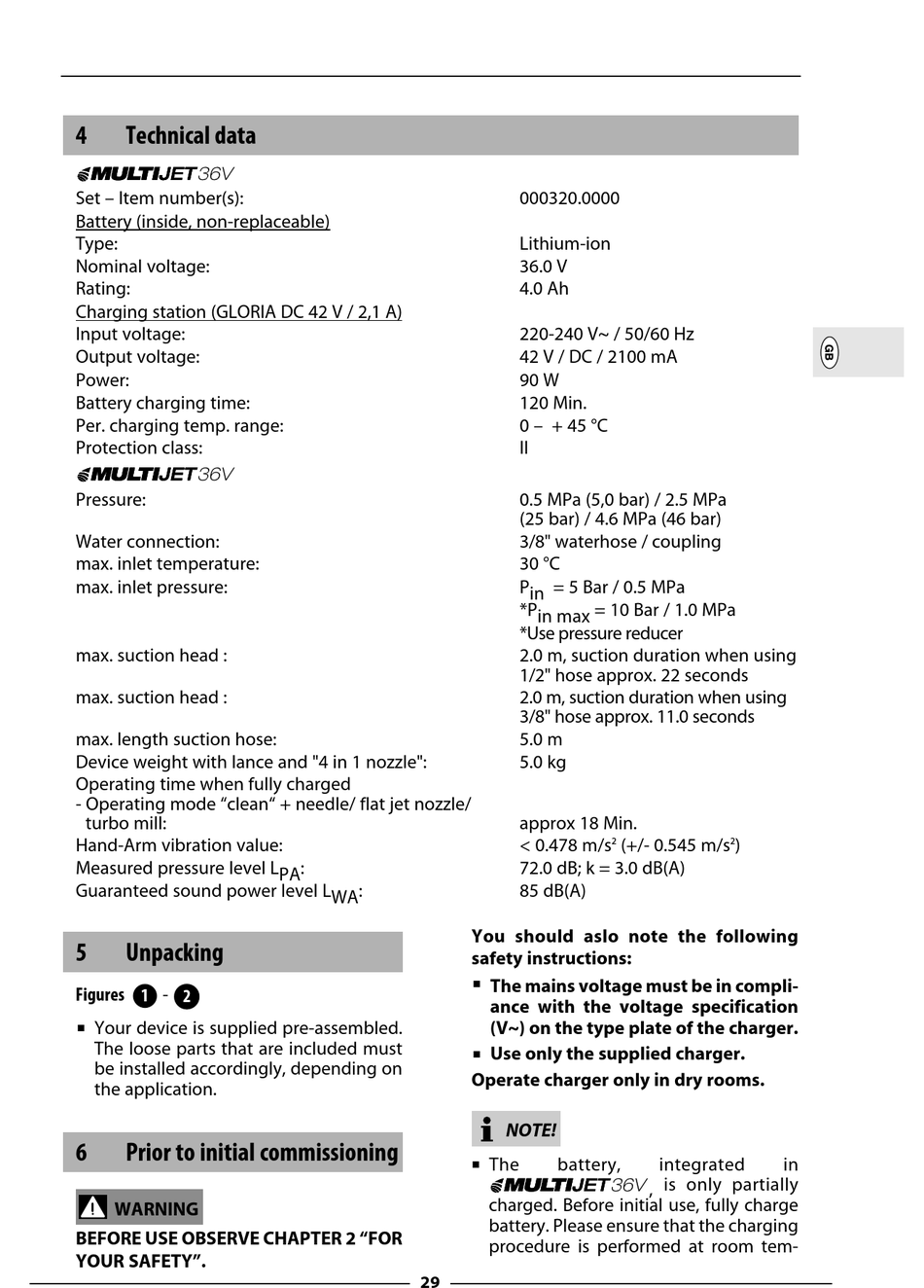

Technical data

Set – Item number(s):
Battery (inside, non-replaceable)
Type:
Nominal voltage:
Rating:
Charging station (GLORIA DC 42 V / 2,1 A)
Input voltage:
Output voltage:
Power:
Battery charging time:
Per. charging temp. range:
Protection class:
Pressure:
Water connection:
max. inlet temperature:
max. inlet pressure:
max. suction head :
max. suction head :
max. length suction hose:
Device weight with lance and "4 in 1 nozzle":
Operating time when fully charged
- Operating mode "clean" + needle/ flat jet nozzle/
turbo mill:
Hand-Arm vibration value:
Measured pressure level L PA :
Guaranteed sound power level L WA :
5

Unpacking

1
2
Figures -

Your device is supplied pre-assembled.
The loose parts that are included must
be installed accordingly, depending on
the application.
6

Prior to initial commissioning

WARNING
BEFORE USE OBSERVE CHAPTER 2 "FOR
YOUR SAFETY".
000320.0000
Lithium-ion
36.0 V
4.0 Ah
220-240 V~ / 50/60 Hz
42 V / DC / 2100 mA
90 W
120 Min.
0 – + 45 °C
II
0.5 MPa (5,0 bar) / 2.5 MPa
(25 bar) / 4.6 MPa (46 bar)
3/8" waterhose / coupling
30 °C
P in = 5 Bar / 0.5 MPa
*P in max = 10 Bar / 1.0 MPa
*Use pressure reducer
2.0 m, suction duration when using
1/2" hose approx. 22 seconds
2.0 m, suction duration when using
3/8" hose approx. 11.0 seconds
5.0 m
5.0 kg
approx 18 Min.
< 0.478 m/s
72.0 dB; k = 3.0 dB(A)
85 dB(A)
You should aslo note the following
safety instructions:

The mains voltage must be in compli-
ance with the voltage specification
(V~) on the type plate of the charger.

Use only the supplied charger.
Operate charger only in dry rooms.
NOTE!

The battery,
charged. Before initial use, fully charge
battery. Please ensure that the charging
procedure is performed at room tem-
29
2 (+/- 0.545 m/s 2 )
integrated in
, is only partially
