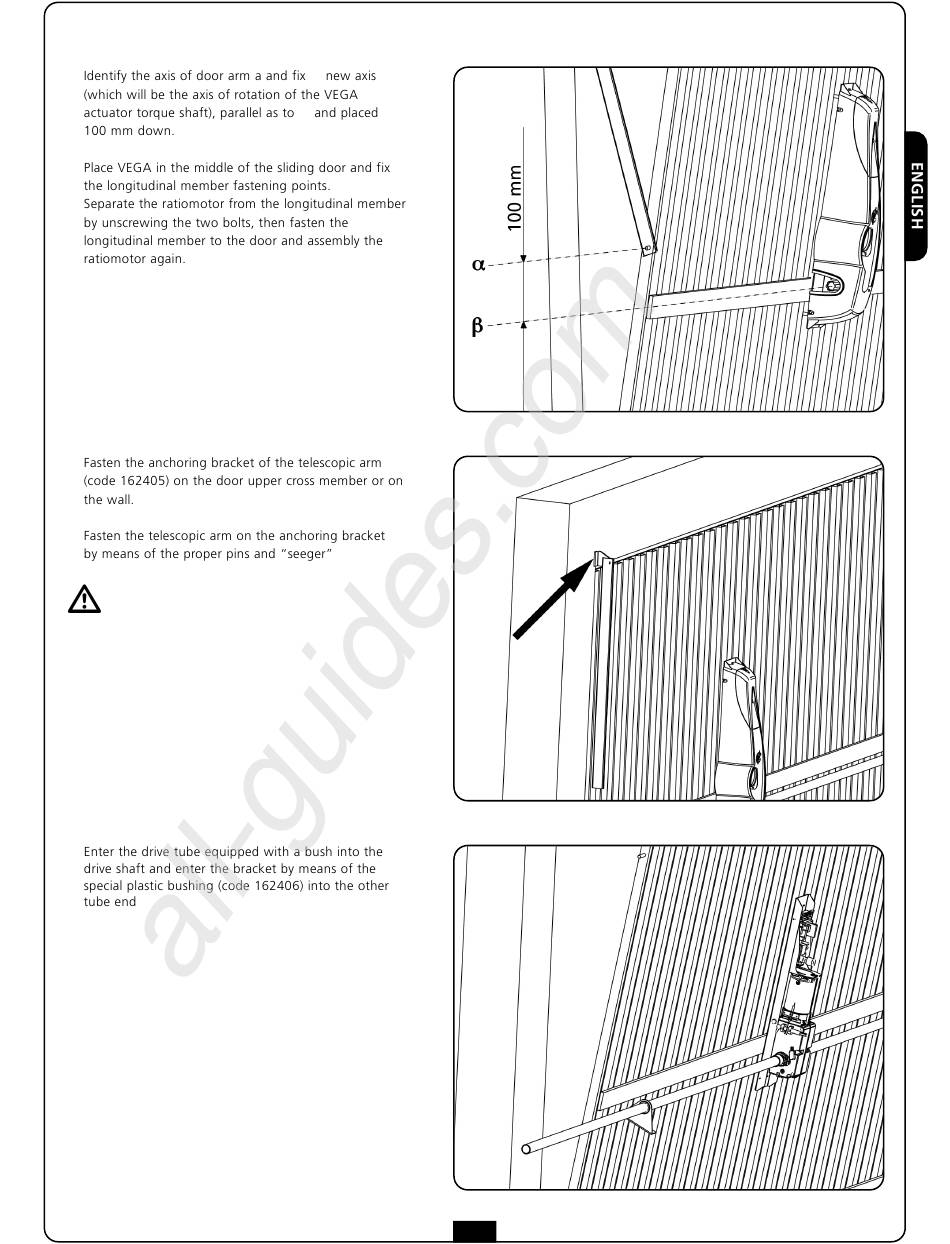

3 - INSTALLATION OF THE MOTOR
a b
1.
a
2.
3.
4.
WARNING: the telescopic arm must be
assembled in such a way as to pass between the
door case and the door arm without any friction.
In case this is not possible due to the lack of space,
make use of the special curve arms
5.
