3 Construction

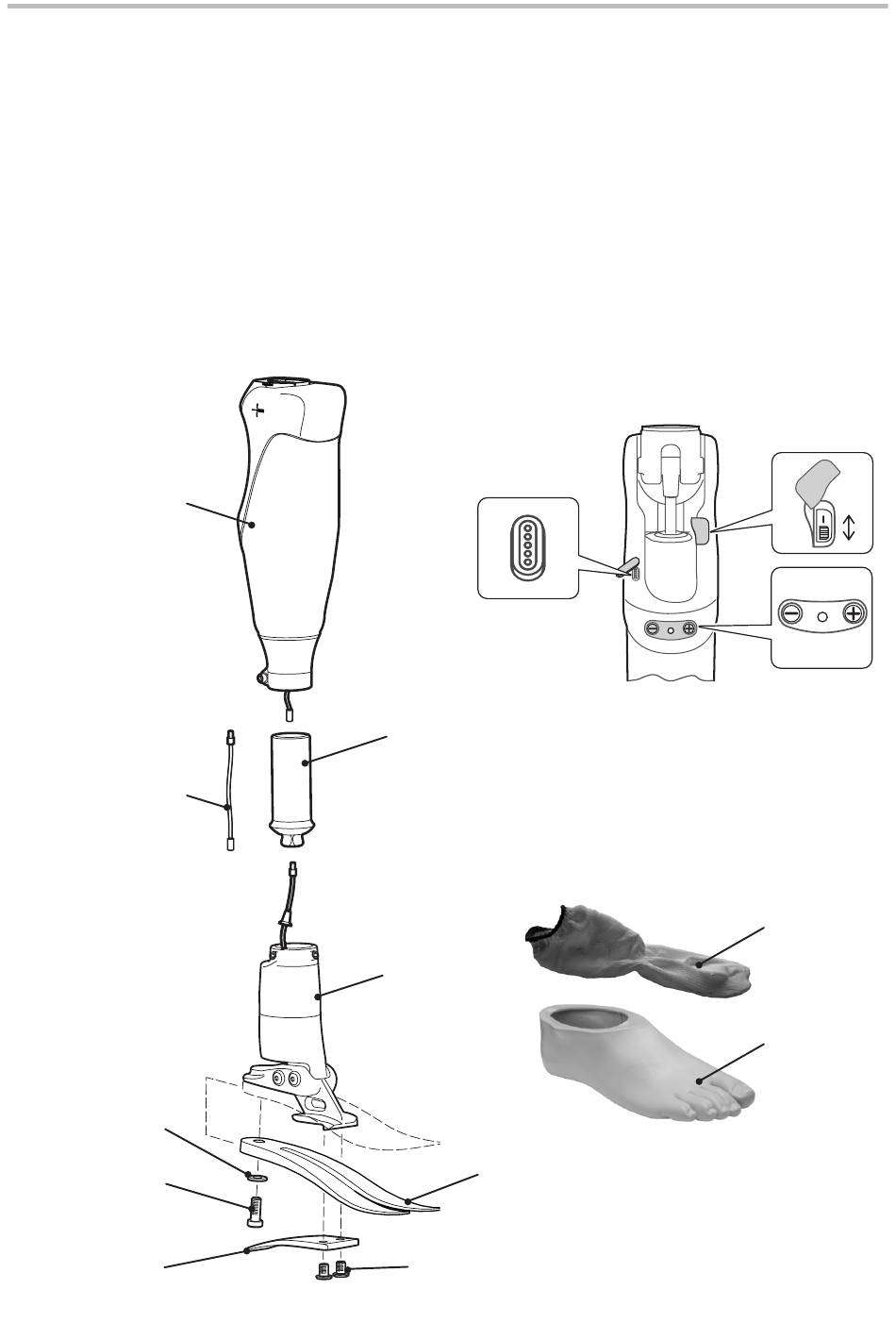

Principal Parts

• Knee Module including pyramid (aluminium/St. Stl./titanium, carbon)
• Ankle Module (aluminium/St. Stl.)
• Pylon (aluminium)
• Heel & Toe Springs (e-Carbon)
• Spring Attachment Screws (titanium/St.Stl.)
• Glide Sock (UHM PE)
• Foot Shell, cables and flexi-boards (polymers and PU)
• Batteries (lithium ion)
Knee
Module
Extension
Cable
Toe Spring
Washer
Toe Spring
Screw
Heel
Spring
Magnetic
Charging
Terminal
Pylon
Ankle
Module
Toe
Spring
Heel spring
Screws
6
Battery On/Off
Switch
[+], [-]
Buttons
and LED
Glide
Sock
Foot
Shell
938354V2APK1/1-0321
