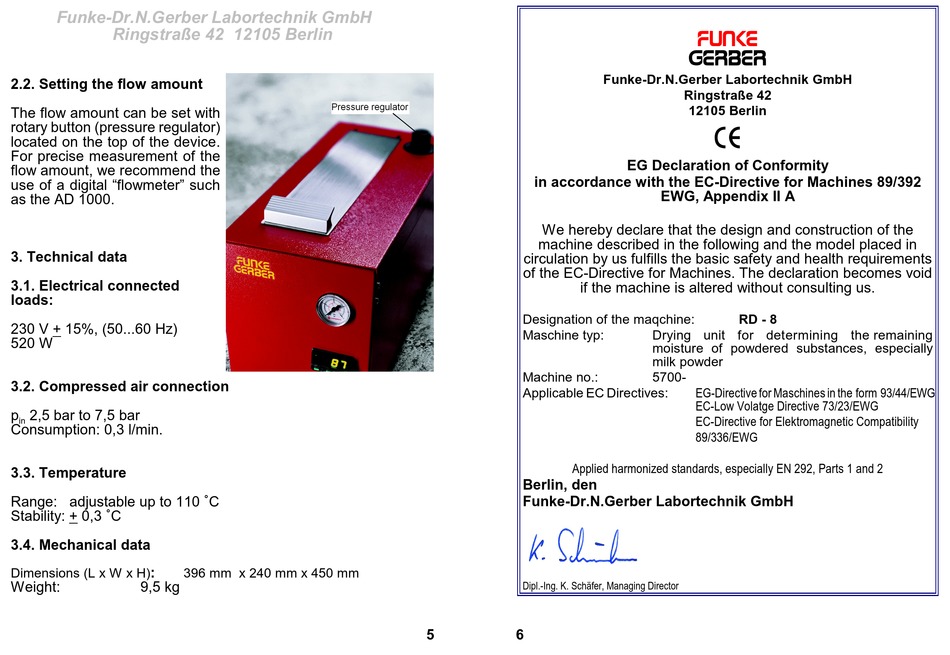

2.2. Setting the flow amount
The flow amount can be set with
rotary button (pressure regulator)
located on the top of the device.
For precise measurement of the
flow amount, we recommend the
use of a digital "flowmeter" such
as the AD 1000.
3. Technical data
3.1. Electrical connected
loads:
230 V + 15%, (50...60 Hz)
520 W
3.2. Compressed air connection
p 2,5 bar to 7,5 bar
in
Consumption: 0,3 l/min.
3.3. Temperature
Range: adjustable up to 110 C
Stability: + 0,3 C
3.4. Mechanical data
:
Dimensions (L x W x H) 396 mm x 240 mm x 450 mm
Weight: 9,5 kg
Funke-Dr.N.Gerber Labortechnik GmbH
in accordance with the EC-Directive for Machines 89/392
We hereby declare that the design and construction of the
machine described in the following and the model placed in
circulation by us fulfills the basic safety and health requirements
of the EC-Directive for Machines. The declaration becomes void
if the machine is altered without consulting us.
Designation of the maqchine:
Maschine typ:
Machine no.:
Applicable EC Directives:
Applied harmonized standards, especially EN 292, Parts 1 and 2
Berlin, den
Funke-Dr.N.Gerber Labortechnik GmbH
Dipl.-Ing. K. Schäfer, Managing Director
5 6
FUNKE
GERBER
Ringstraße 42
12105 Berlin
C
EG Declaration of Conformity
EWG, Appendix II A
RD - 8
Drying unit for determining the remaining
moisture of powdered substances, especially
milk powder
5700-
EG-Directive for Maschines in the form 93/44/EWG
EC-Low Volatge Directive 73/23/EWG
EC-Directive for Elektromagnetic Compatibility
89/336/EWG
