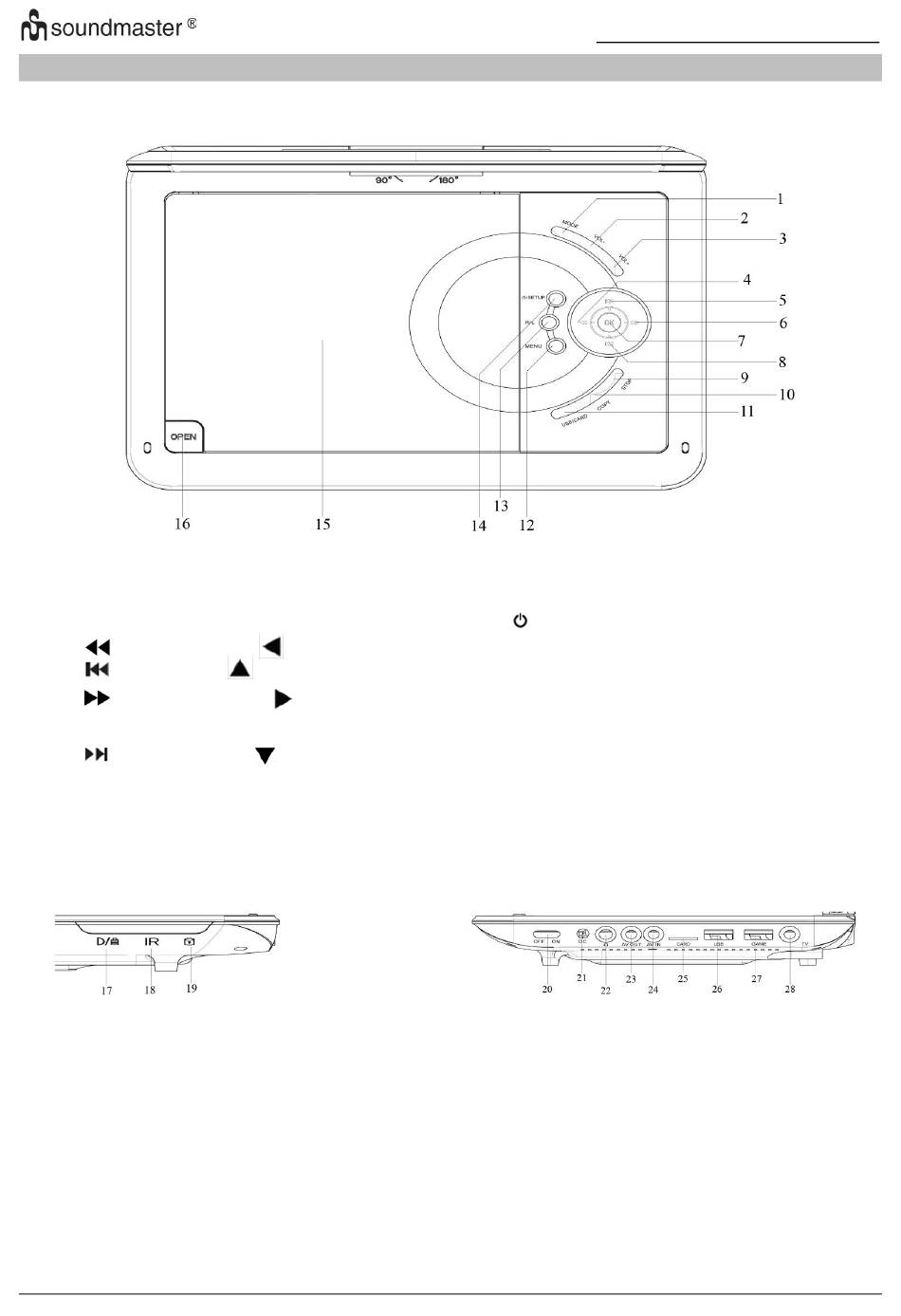

TOP VIEW
1 MODE button
2 VOL- button
3 VOL+ button
4 - Search back /
5 Skip back /
6
Search forward /
7
PLAY / PAUSE / OK button
8
Skip forward /
9
STOP button
10 COPY
11 USB/CARD button
FRONT VIEW
17 Charge indicator
18 IR sensor
19 Power indicator

LOCATION OF CONTROLS

- Cursor left
Cursor up
Cursor right
Cursor down
PDB1910 / English Instruction Manual
12 MENU button
13 R/L button
14 / SETUP
15 DVD/CD Tray
16 Tray door release key
SIDE VIEW
20 ON/OFF switch
21 DC IN jack
22 Headphone jack
23 AV OUT
24 AV IN
25 SD CARD socket
26 USB socket
27 GAME socket
28 TV socket
