MOUNTING INSTRUCTION R-C10-RV1/R-C10-RV2
Key Features
• Compact universal rear view camera
• Automatic day and night mode with night vision IR LED's
• Separable 2-part system cable, with cable parts of 6.0m + 2.0m length
• Manual adjustment of vertical image section on the camera body
• 12V Power supply optional on camera or device side
Housing Rearcamera
Technical Specifications:
Image device: H7440H ¼ Inch / 6,4 mm
Lens focal length: f1.6
TV system: PAL/NTSC
Native sensor resolution: 733 (H) x 493 (V) pixels
Resolution of video-out: > 600 TV lines
Frame rate: 60 fi elds/sec.
Signal to noise ratio: > 45 dB
Description:
The RADICAL R-C10-RV1/R-C10-RV2 rear view camera was developed for universal use, allowing retrofi tting of a
great variety of vehicles due to its extremely compact housing shape. The vertical image section can be adjusted
manually on the camera body.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the RADICAL product
line up.
PLEASE NOTE:
• Following the latest trend in vehicle electronics, newer cars mainly use a pulse width modulated power feed (PWM)
for outer hull lights, which is unsuitable for imaging/video electronics, as it causes considerable picture distortion.
• Use the included connection cable exclusively. Altering or replacing it will expire your warranty immediatly.
• The camera is 100% water- and dustproof and has been tested according to international standard IP69K.
However, cleaning your vehicle with a high pressure washer may damage the housing sealings.
• Keep a distance of at least one meter between water nozzle and camera housing.
lnstall the ZE-RVC85WA in the insert of the license illumination plate. Take off the panel and drill a Ø 6.5 mm dia-
meter hole. Put the cable through the hole and fasten the camera to the car, using the adhesive pad. Lay the cable
to the front controller and connect the cable to the RVC (CVBS) input.
RADICAL Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative: ACR S & V GmbH Industriestraße 35 D-79787 Lauchringen Germany

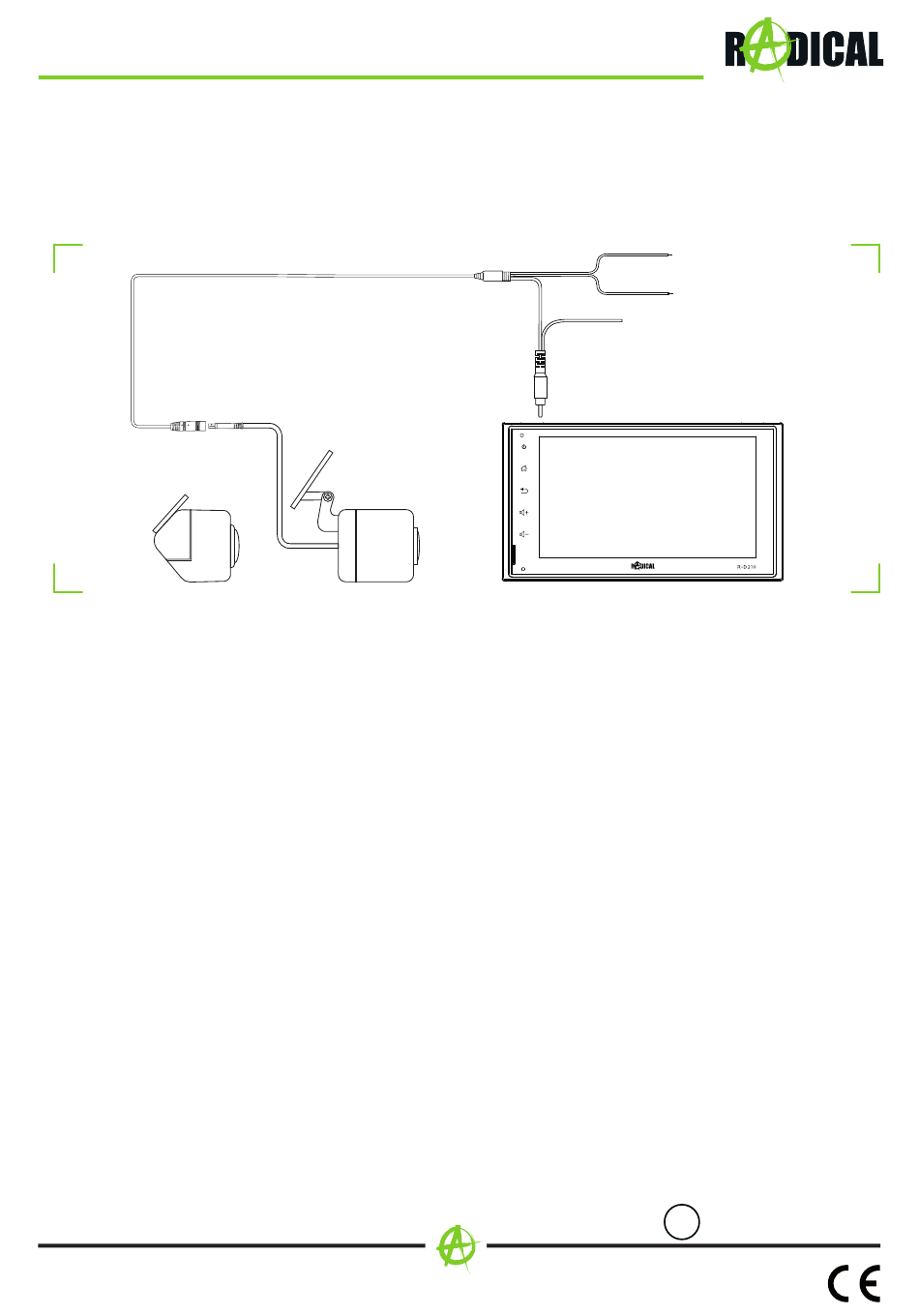

6.0 m
2.0 m
Housing Rearcamera
Red: Optional CAM PWR (+12V)
Video Out
(connect to Moni-/Naviceiver)
Reset Reset
Video output: 1.2 Vp-p, 75 ohms CVBS
White balance: Auto
Backlight compensation: Auto
Gain control: Auto
Sync system: Auto
Power supply: DC 12V
Current consumption: 65mA (DC12V) / ≤ 780mW
IP protection rating: IP68
Operating temperature: -15°C~+60°C
Red: CAM PWR (+12V)
Black: GND
