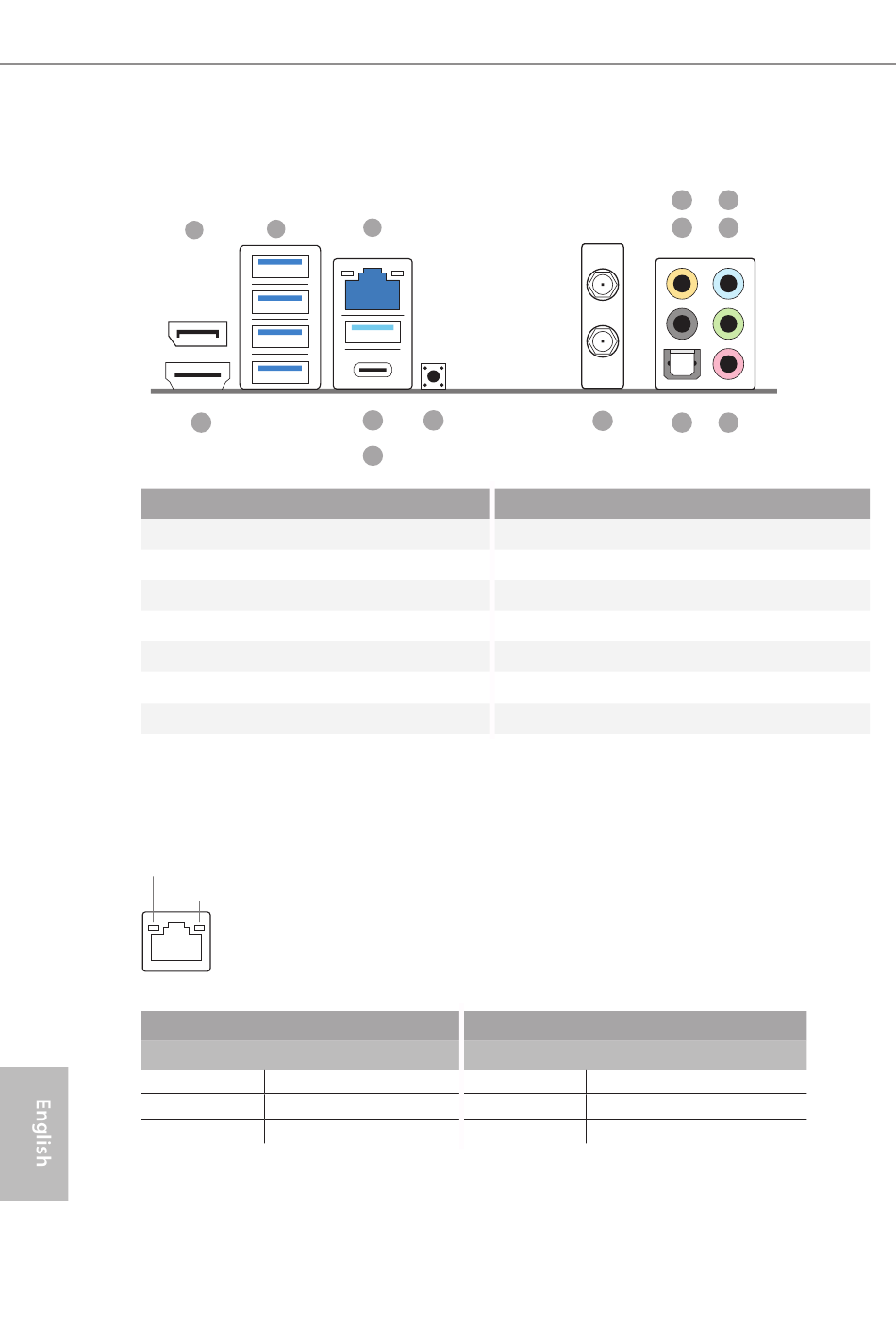

I/O Panel
1
14
No. Description
1 DisplayPort 1.4
2 USB 3.2 Gen2 Type-A Ports (USB3_1234)
3 2.5G LAN RJ-45 Port (Killer® E3100G)*
4 Central / Bass (Orange)
5 Rear Speaker (Black)
6 Line In (Light Blue)
7 Front Speaker (Lime)**
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Off
Blinking
On
4
3
2
12 11
13
Description
No Link
Data Activity
Link
10
No. Description
8 Microphone (Pink)
9 Optical SPDIF Out Port
10 Antenna Ports
11 Clear CMOS Button
12 USB 3.2 Gen2 Type-A Port (USB3_5)
13 USB 4.0 Thunderbolt
14 HDMI Port
Speed LED
Status Description
Off 10Mbps connection
Orange 100Mbps/1Gbps connection
Green 2.5Gbps connection
4 6
5 7
9 8
TM
4 Type-C Port (TB_1)
