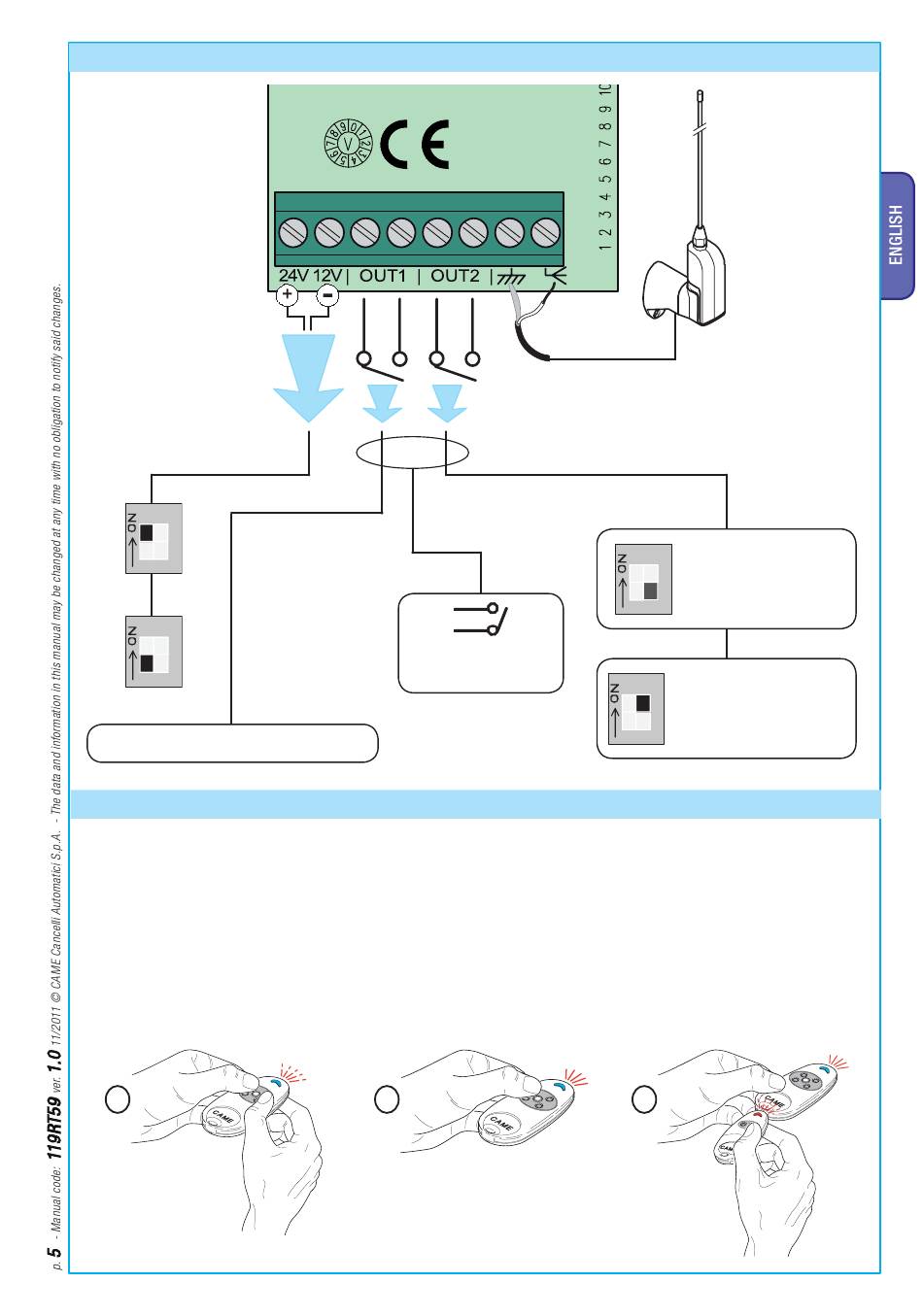

10 Electrical connections

1 2
12 V
1 2
24 V
command: always "mono stable"
11 Duplicating a transmitter
Duplication must be done because each of the transmitters is made with different codes.
1. Simultaneously press the two buttons until the LED fl ashes more quickly;
2. now press the button you wish to activate (the LED lights up);
3. with 10 seconds, rest the active transmitter against it back part and press the button that needs duplicating for a few seconds.
Once memorisation is complete, the LED will flash 3 times and the transmitter will be ready for use.
Repeat points 1, 2 and 3 for the remaining buttons.
For new systems check the electrical panel literature to memorise the 1st transmitter, then follow the above procedure to
duplicate it.
1
max. 1 A 24 V DC
resistance load
2
1 2
command: "monostable"
1 2
command: "bi-stable"
3
