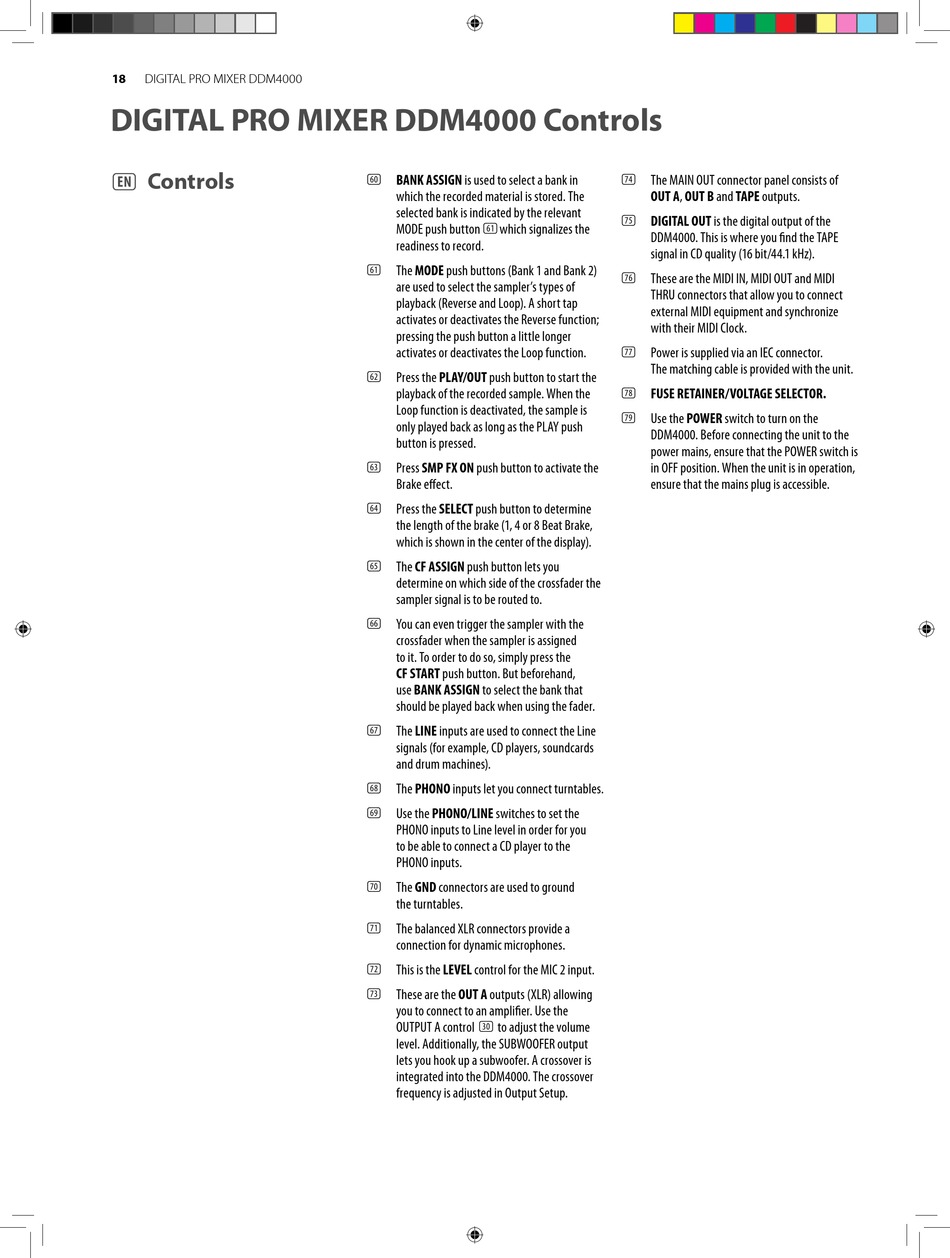

DIGITAL PRO MIXER DDM4000 Controls
(EN) Controls
BANK ASSIGN is used to select a bank in
(60)
which the recorded material is stored. The
selected bank is indicated by the relevant
MODE push button (61) which signalizes the
readiness to record.
The MODE push buttons (Bank 1 and Bank 2)
(61)
are used to select the sampler's types of
playback (Reverse and Loop). A short tap
activates or deactivates the Reverse function;
pressing the push button a little longer
activates or deactivates the Loop function.
Press the PLAY/OUT push button to start the
(62)
playback of the recorded sample. When the
Loop function is deactivated, the sample is
only played back as long as the PLAY push
button is pressed.
Press SMP FX ON push button to activate the
(63)
Brake effect.
Press the SELECT push button to determine
(64)
the length of the brake (1, 4 or 8 Beat Brake,
which is shown in the center of the display).
The CF ASSIGN push button lets you
(65)
determine on which side of the crossfader the
sampler signal is to be routed to.
You can even trigger the sampler with the
(66)
crossfader when the sampler is assigned
to it. To order to do so, simply press the
CF START push button. But beforehand,
use BANK ASSIGN to select the bank that
should be played back when using the fader.
The LINE inputs are used to connect the Line
(67)
signals (for example, CD players, soundcards
and drum machines).
The PHONO inputs let you connect turntables.
(68)
Use the PHONO/LINE switches to set the
(69)
PHONO inputs to Line level in order for you
to be able to connect a CD player to the
PHONO inputs.
The GND connectors are used to ground
(70)
the turntables.
The balanced XLR connectors provide a
(71)
connection for dynamic microphones.
This is the LEVEL control for the MIC 2 input.
(72)
These are the OUT A outputs (XLR) allowing
(73)
you to connect to an amplifier. Use the
OUTPUT A control (30) to adjust the volume
level. Additionally, the SUBWOOFER output
lets you hook up a subwoofer. A crossover is
integrated into the DDM4000. The crossover
frequency is adjusted in Output Setup.
The MAIN OUT connector panel consists of
(74)
OUT A, OUT B and TAPE outputs.
DIGITAL OUT is the digital output of the
(75)
DDM4000. This is where you find the TAPE
signal in CD quality (16 bit/44.1 kHz).
These are the MIDI IN, MIDI OUT and MIDI
(76)
THRU connectors that allow you to connect
external MIDI equipment and synchronize
with their MIDI Clock.
Power is supplied via an IEC connector.
(77)
The matching cable is provided with the unit.
FUSE RETAINER/VOLTAGE SELECTOR.
(78)
Use the POWER switch to turn on the
(79)
DDM4000. Before connecting the unit to the
power mains, ensure that the POWER switch is
in OFF position. When the unit is in operation,
ensure that the mains plug is accessible.
