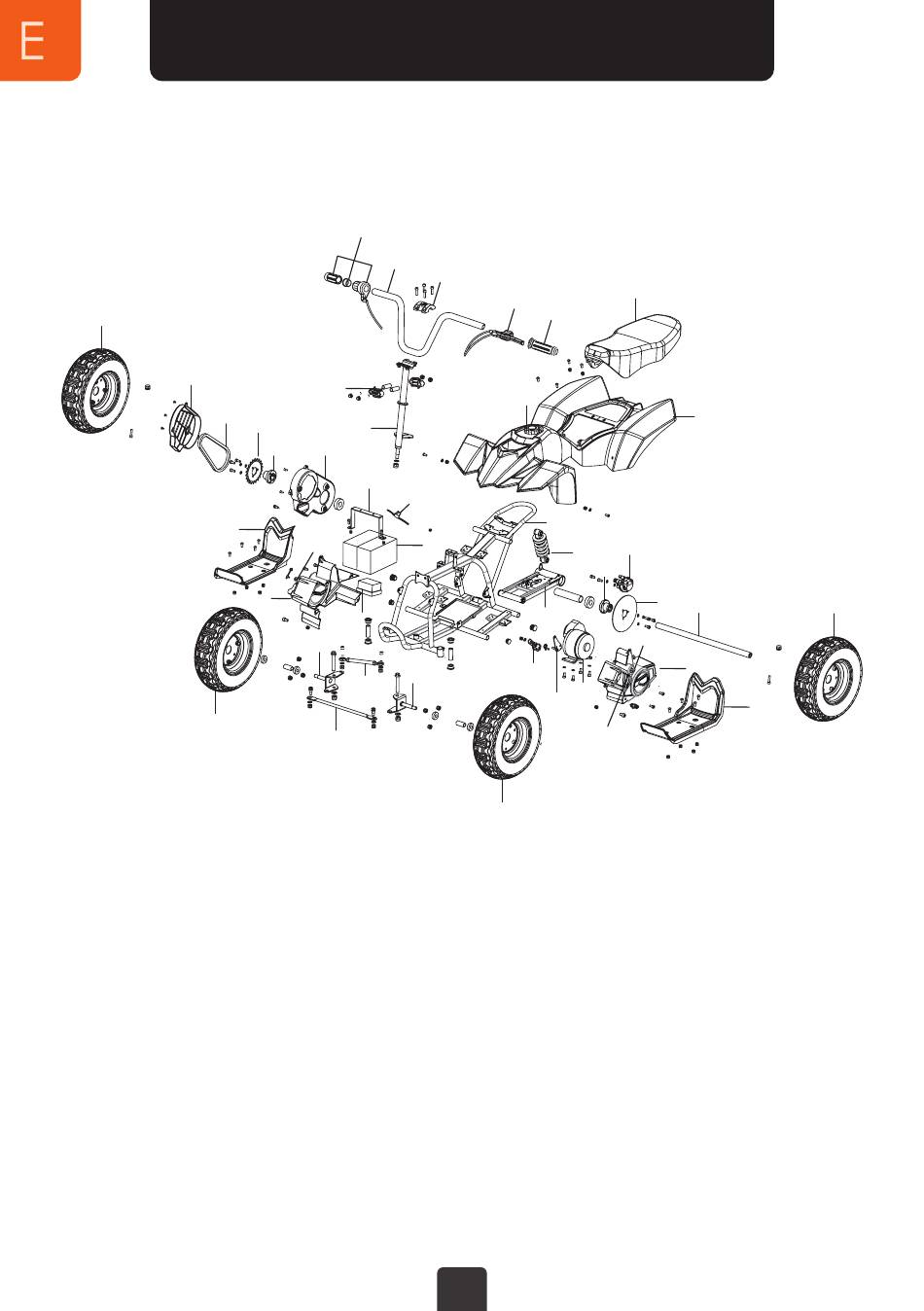

2.1 VEHICALE PARTS

13
14
15 16
27
36
1. Throttle assembly
2. Handlebar
3. Handlebar clamp
4. Brake lever
5. Left grip
6. Seat
7. Body
8. Deck cap
9. On/Off Switch
10. On/Off Switch housing
11. Stem tube clamp
12. Stem tube
13. Rear wheel
14. Chain guard cover

Vehicle parts

1
2
11
12
18
17
19
42
28
29
30
38
41
40
39
15. Chain
16. Gear
17. Gear drive mount
18. Chain guard cover
19. Battery lock
20. Battery
21. Rear fork
22. Frame
23. Shock absorber
24. Brake calipers
25. Disc brake
26. Axle
27. Right foot rest
28. Charging port
3
4
5
8
22
20
23
18
21
31
32 33
10
36
28
6
7
24
25 26
9
34
35
29. Right side cover
30. Controller
31. Guide wheel
32. Tensinor mount
33. Motor
34. Left side cover
35. Left foot rest
36. Front wheel
38. Front axle right
39. Steering bar
40. Steering adjustment tube
41. Front axle left
42. Fuse
13
