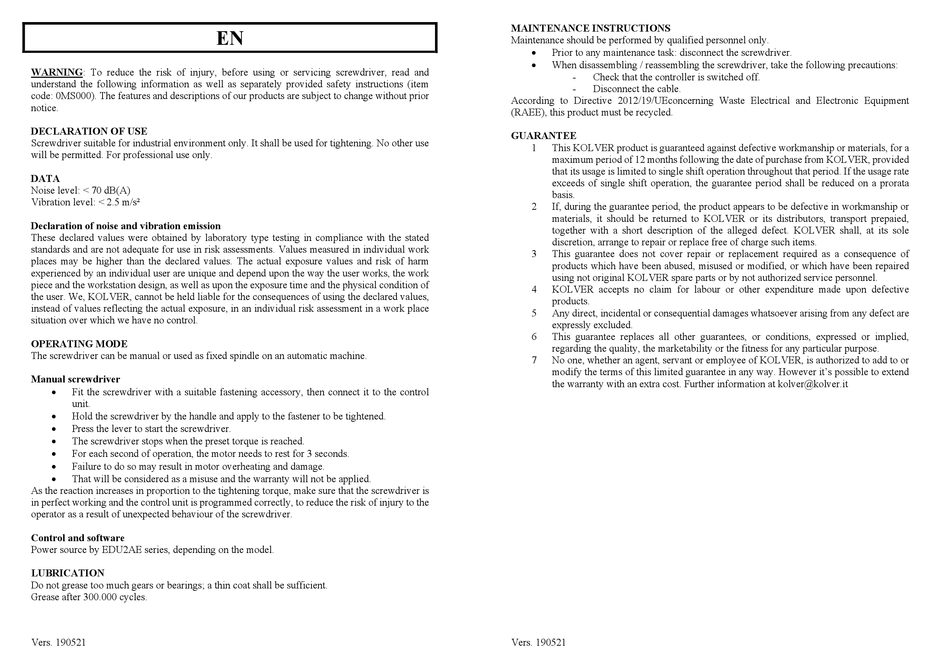

Kolver PLUTO-Serie Handbuch Seite 4

WARNING: To reduce the risk of injury, before using or servicing screwdriver, read and
understand the following information as well as separately provided safety instructions (item
code: 0MS000). The features and descriptions of our products are subject to change without prior
notice.
DECLARATION OF USE
Screwdriver suitable for industrial environment only. It shall be used for tightening. No other use
will be permitted. For professional use only.
DATA
Noise level: < 70 dB(A)
Vibration level: < 2.5 m/s²
Declaration of noise and vibration emission
These declared values were obtained by laboratory type testing in compliance with the stated
standards and are not adequate for use in risk assessments. Values measured in individual work
places may be higher than the declared values. The actual exposure values and risk of harm
experienced by an individual user are unique and depend upon the way the user works, the work
piece and the workstation design, as well as upon the exposure time and the physical condition of
the user. We, KOLVER, cannot be held liable for the consequences of using the declared values,
instead of values reflecting the actual exposure, in an individual risk assessment in a work place
situation over which we have no control.
OPERATING MODE
The screwdriver can be manual or used as fixed spindle on an automatic machine.
Manual screwdriver

Fit the screwdriver with a suitable fastening accessory, then connect it to the control
unit.

Hold the screwdriver by the handle and apply to the fastener to be tightened.

Press the lever to start the screwdriver.

The screwdriver stops when the preset torque is reached.

For each second of operation, the motor needs to rest for 3 seconds.

Failure to do so may result in motor overheating and damage.

That will be considered as a misuse and the warranty will not be applied.
As the reaction increases in proportion to the tightening torque, make sure that the screwdriver is
in perfect working and the control unit is programmed correctly, to reduce the risk of injury to the
operator as a result of unexpected behaviour of the screwdriver.
Control and software
Power source by EDU2AE series, depending on the model.
LUBRICATION
Do not grease too much gears or bearings; a thin coat shall be sufficient.
Grease after 300.000 cycles.
Vers. 190521
EN
MAINTENANCE INSTRUCTIONS
Maintenance should be performed by qualified personnel only.

Prior to any maintenance task: disconnect the screwdriver.

When disassembling / reassembling the screwdriver, take the following precautions:
- Check that the controller is switched off.
- Disconnect the cable.
According to Directive 2012/19/UEconcerning Waste Electrical and Electronic Equipment
(RAEE), this product must be recycled.
GUARANTEE
1 This KOLVER product is guaranteed against defective workmanship or materials, for a
maximum period of 12 months following the date of purchase from KOLVER, provided
that its usage is limited to single shift operation throughout that period. If the usage rate
exceeds of single shift operation, the guarantee period shall be reduced on a prorata
basis.
2 If, during the guarantee period, the product appears to be defective in workmanship or
materials, it should be returned to KOLVER or its distributors, transport prepaied,
together with a short description of the alleged defect. KOLVER shall, at its sole
discretion, arrange to repair or replace free of charge such items.
3 This guarantee does not cover repair or replacement required as a consequence of
products which have been abused, misused or modified, or which have been repaired
using not original KOLVER spare parts or by not authorized service personnel.
4 KOLVER accepts no claim for labour or other expenditure made upon defective
products.
5 Any direct, incidental or consequential damages whatsoever arising from any defect are
expressly excluded.
6 This guarantee replaces all other guarantees, or conditions, expressed or implied,
regarding the quality, the marketability or the fitness for any particular purpose.
7 No one, whether an agent, servant or employee of KOLVER, is authorized to add to or
modify the terms of this limited guarantee in any way. However it's possible to extend
the warranty with an extra cost. Further information at kolver@kolver.it
Vers. 190521
