PL20CA/FN

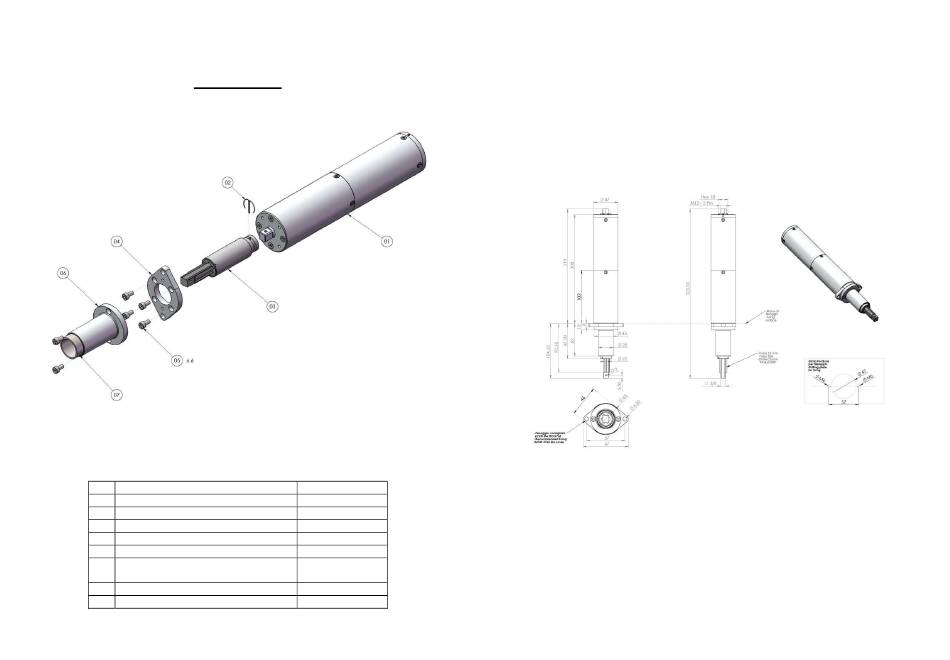

ESPLOSO/ EXPLODED VIEW
PARTI DI RICAMBIO/ SPARE PARTS
RIF DESCRIZIONE/ DESCRIPTION
1 PLUTO20CA
2 Molla di sicurezza/ Safety spring
3 Compensatore/ Axial compensator
4 Flangia supporto/ Support plate
5 Vite/ Screw M4x8 (6)
Bussola guida telescopica/ Telescopic
6
drive bush
7 Permaglide
Cavo/ Cable 5 pin 2,5 mt.
Vers. 190521
COD.
133221
FE-1301C
800321
234510/20/3
231505
800302/20
800317/1
200063
INGOMBRO/ DRAWING
Vers. 190521
