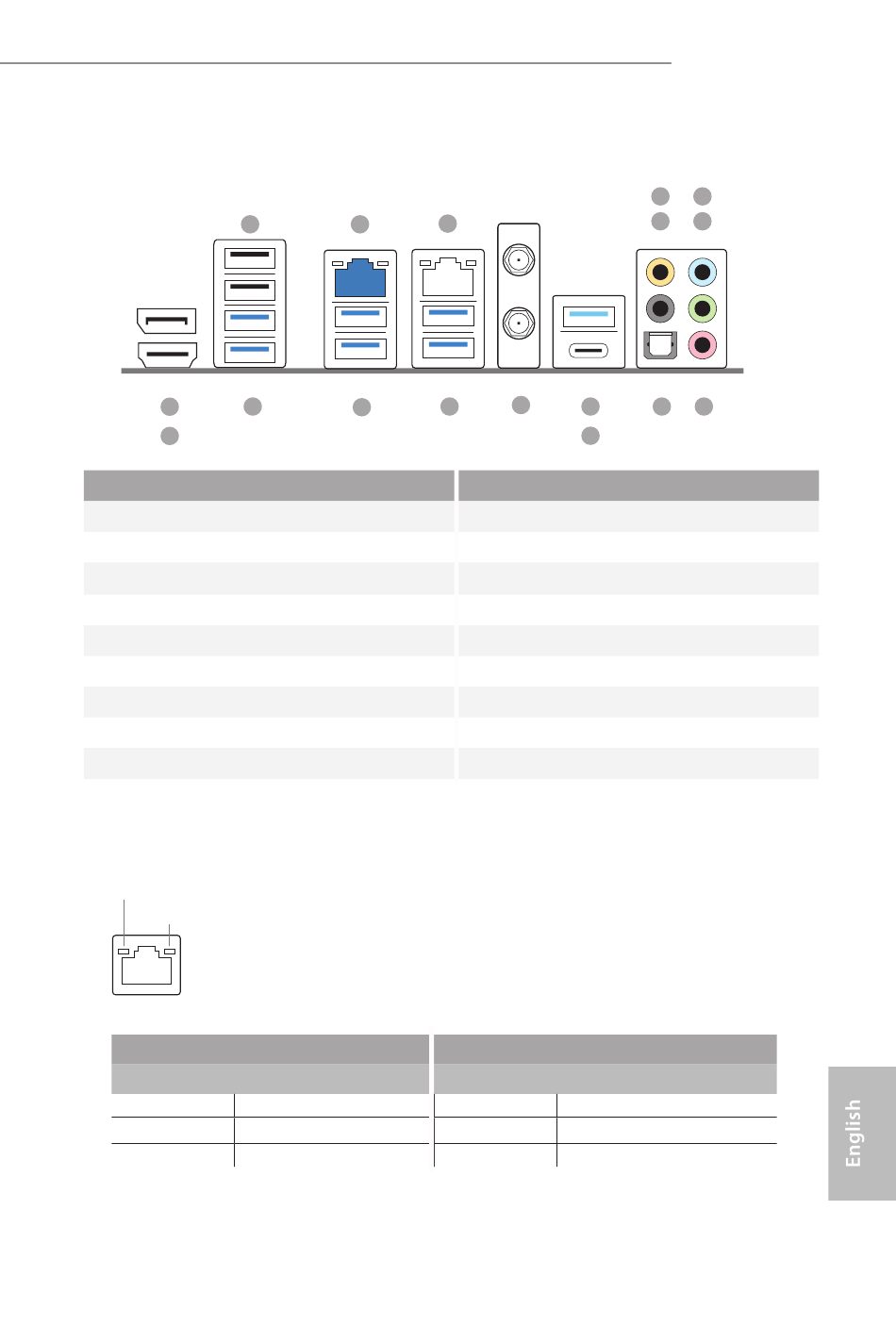

I/O Panel
1
15
16
17
No. Description
1 USB 2.0 Ports (USB12)
2 2.5G LAN RJ-45 Port (Killer® E3100G)*
3 LAN RJ-45 Port (Intel® I219V)**
4 Central / Bass (Orange)
5 Rear Speaker (Black)
6 Line In (Light Blue)
7 Front Speaker (Lime)***
8 Microphone (Pink)
9 Optical SPDIF Out Port
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
3
2
12
13
14
No. Description
10 USB 3.2 Gen2 Type-A Port (USB31_TA_1)
11 USB 3.2 Gen2 Type-C Port (USB31_TC_1)
12 Antenna Ports
13 USB 3.2 Gen1 Ports (USB3_34)
14 USB 3.2 Gen1 Ports (USB3_12)****
15 USB 3.2 Gen1 Ports (USB3_9_10)
16 DisplayPort 1.4
17 HDMI Port
Speed LED
Status
Off
Orange
Green
Z590 PG Velocita
4 6
5 7
10 9 8
11
Description
10Mbps connection
100Mbps/1Gbps connection
2.5Gbps connection
3
