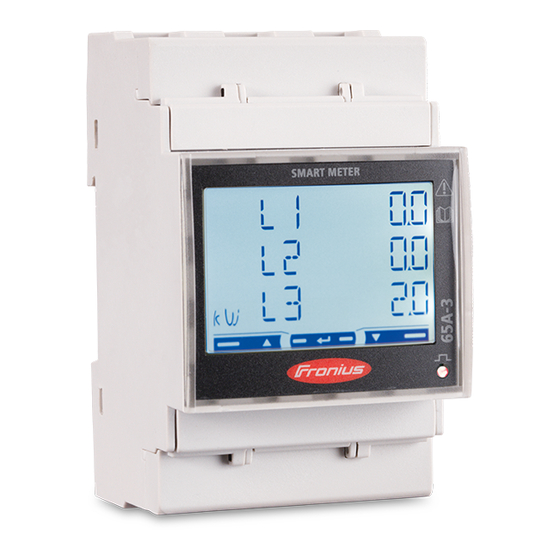

Fronius Smart Meter TS 65A-3 Bedienungsanleitung

SOFTWARE REQUIREMENTS
Fronius Datamanager 2.0
Fronius Symo Hybrid
MEASURING INPUT
Nominal voltage (4-conductor) range
Power consumption in the voltage path (max. voltage)
Nominal frequency
Tolerance
Nominal current, l
b
Maximum current, I
max
Starting current
Short-time overload
(EN IEC 62053-21, EN IEC 62053-23)
Self-consumption - current path (max. current)
Power factor
Operating range
(EN IEC 62053-21, EN IEC 62053-23)
Current distortion factor
OUTPUT
RS485 communication (Electrically isolated from measuring input)
Standard
Protocol
Addresses
Baud rate
Response time
INSULATION (EN IEC 62052-11, EN IEC 62053-21)
Installation category
Degree of pollution
Insulation voltage
ELECTROMAGNETIC COMPATIBILITY
Emission test
Immunity test
OPERATING CONDITIONS
Reference temperature
Operating range
Temperature limit for storage and transport
Mechanical environment
Electromechanical environment
HOUSING
Housing
Sealable housing/terminal cover
Connection
Mounting
Housing material
Degree of protection (EN 60529)
Weight
TERMINALS - MEASURING INPUT
Wire
Recommended torque
TERMINALS - DATA OUTPUT (N-CONNECTOR)
Wire
Recommended torque
www.fronius.com/solar/warranty
Detailed, country-specific warranty terms are available on:
≥ 3.16.1 version
≥ 1.16.1 version
208 - 400 V (±20%)
≤ 10 VA
50 - 60 Hz
45 - 65 Hz
5 A
65 A
20 mA
30 l / 0.001 s
max
≤ 1 W
active cosφ 0.5 ind - 0.8 cap,
reactive sinφ 0.5 ind - 0.5 cap
in acc. with EN 50470
RS485 - 3 conductors
Compatible with Modbus RTU
1 - 255
300, 2400, 9600 bit/s
≤ 200 ms
III
2
4 kVAC RMS (1 min)
In acc. with EN IEC 62052-11, EN 50470-3
In acc. with EN IEC 62052-11, EN 50470-3
25 °C (± 5 °C)
-25 to +55 °C
-30 to +80 °C
M2
E2
3 modules according to DIN 43880
Screw connection
Can be snapped onto 35 mm DIN rail
Noryl, self-extinguishing
IP51 housing, IP20 connections
240 grams
min. 1 mm² / max. 16 mm²
max. 2.8 Nm
min 0.05 mm²
max. 0.4 Nm
/ Perfect Welding / Solar Energy / Perfect Charging
FIND MORE
INFORMATION
manuals.fronius.com/html/4204260349
QUICK START GUIDE
Fronius Smart Meter TS 65A-3
DE: WARNUNG! Fehlbedienung und fehlerhaft durchgeführte Arbeiten können schwerwiegende Personen- oder
Sachschäden verursachen. Die Installation und Inbetriebnahme des Smart Meters darf nur durch geschultes Personal und
nur im Rahmen der technischen Bestimmungen erfolgen. Vor Arbeiten mit dem Gerät, alle beiliegenden, aufgedruckten
und online zur Verfügung gestellten Dokumente lesen und verstehen! Dieses Dokument beschreibt nicht alle möglichen
Systemkonfigurationen.
EN: WARNING! Incorrect operation and incorrectly performed work can cause serious personal injury or material damage. The Fronius
Smart Meter may only be installed and commissioned by trained personnel and only within the scope of the technical regulations. Befo-
re working with the device, read and understand all enclosed, printed and online documents! This document does not describe all of the
possible system configurations.
FR: AVERTISSEMENT ! Une mauvaise utilisation et un travail mal effectué peuvent causer des blessures graves ou des dommages
matériels. Le Fronius Smart Meter ne peut être installé et mis en service que par du personnel formé et uniquement dans le cadre des
réglementations techniques. Avant de travailler avec l'appareil, lisez et comprenez tous les documents ci-joints, imprimés et en ligne ! Ce
document ne décrit pas toutes les configurations possibles du système.
IT: ATTENZIONE! Un funzionamento non corretto e un lavoro eseguito in modo non corretto possono causare gravi lesioni personali o
danni materiali. Lo Fronius Smart Meter può essere installato e messo in funzione solo da personale addestrato e solo nell'ambito delle
norme tecniche. Prima di lavorare con l'apparecchio, leggere e comprendere tutti i documenti allegati, stampati e online! Questo docu-
mento non descrive tutte le possibili configurazioni di sistema.
ES: ¡ADVERTENCIA! El funcionamiento incorrecto y el trabajo realizado de forma incorrecta pueden causar graves lesiones personales o
daños materiales. El Fronius Smart Meter sólo puede ser instalado y puesto en marcha por personal capacitado y sólo dentro del ámbito
de los reglamentos técnicos. Antes de trabajar con el dispositivo, lea y entienda todos los documentos adjuntos, impresos y en línea! Este
documento no describe todas las configuraciones posibles del sistema.
DA: ADVARSEL! Forkert betjening og forkert udført arbejde kan forårsage alvorlig personskade eller materielle skader. Fronius Smart
Meter må kun installeres og idriftsættes af uddannet personale og kun inden for rammerne af de tekniske forskrifter. Læs og forstå alle
vedlagte, trykte og online dokumenter, før du arbejder med enheden! Dette dokument beskriver ikke alle mulige systemkonfigurationer.
PB: ALERTA! Uma operação incorreta e trabalhos mal executados podem provocar graves danos às pessoas e aos equipamentos. A
instalação e o comissionamento do Smart Meter podem ser realizados somente por pessoal treinado e dentro das determinações técnicas.
Antes de trabalhar com o dispositivo, deve-se ler e compreender todos os documentos anexos, impressos e disponíveis online! Os módu-
los solares expostos à luz fornecem tensão ao inversor. Este documento não descreve todas as configurações de sistema possíveis.
42,0410,2496 006-22042021
FRONIUS INTERNATIONAL GMBH www.fronius.com
