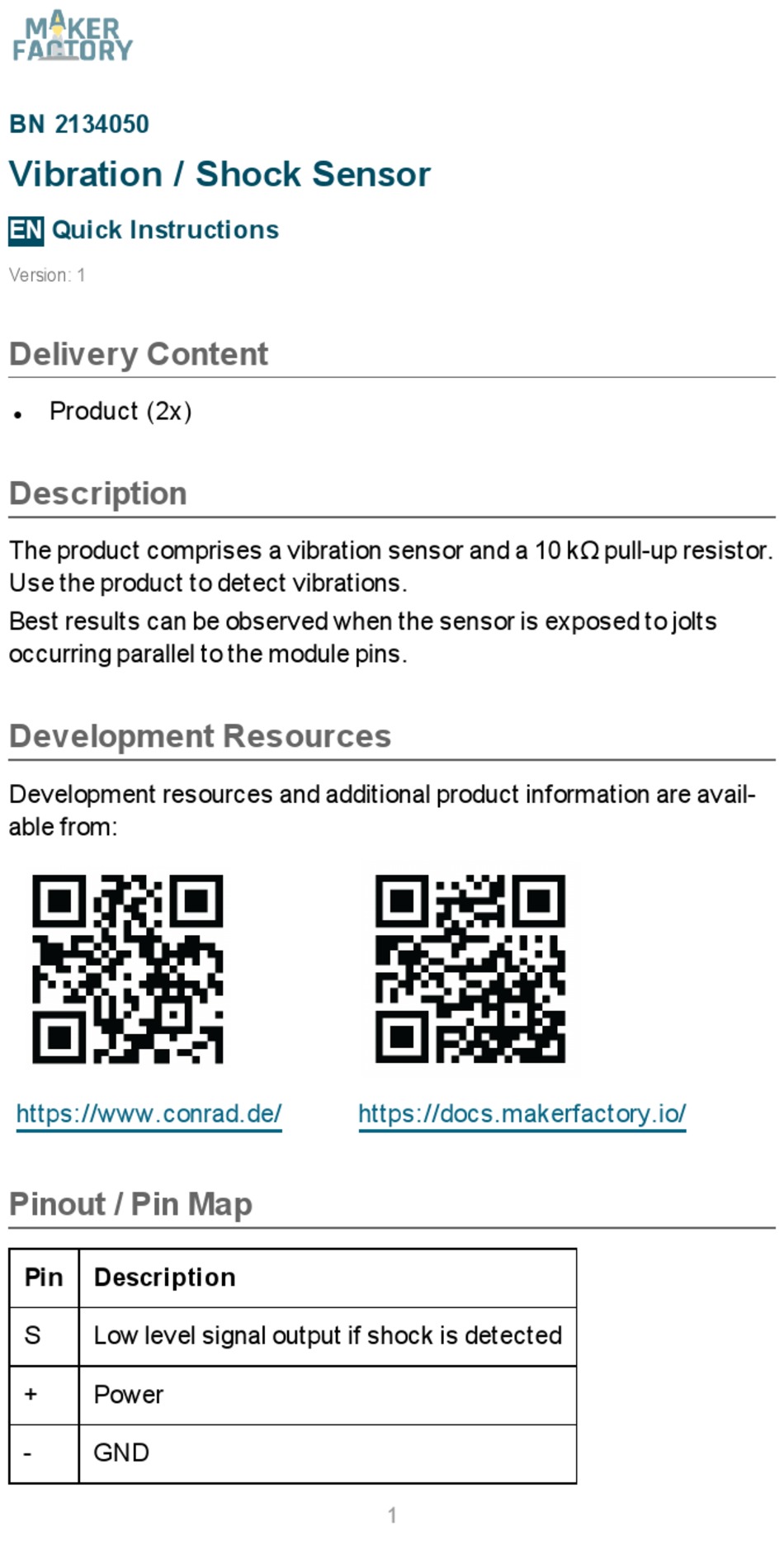

BN 2134050
Vibration / Shock Sensor
EN Quick Instructions
Version: 1

Delivery Content

Product (2x)
l
Description
The product comprises a vibration sensor and a 10 kΩ pull-up resistor.
Use the product to detect vibrations.
Best results can be observed when the sensor is exposed to jolts
occurring parallel to the module pins.
Development Resources
Development resources and additional product information are avail-
able from:
https://www.conrad.de/
Pinout / Pin Map
Pin Description
S Low level signal output if shock is detected
+ Power
- GND
https://docs.makerfactory.io/
