• Always store the pole callipers in the designated holders to ensure that the power pack is not at
risk of short-circuiting when not in use.
• Do not attempt to remove and replace the battery pack of the power pack. If the battery comes
to the end of its useful life, dispose of the entire power pack in accordance with your local
guidelines.
• Never charge the power pack using a damaged charger.
• Only used the supplied accessories to charge the power pack.
• Never attempt to start a vehicle when the battery is frozen, this brings a risk of explosion.
• Always observe the following sequence when disconnecting the power pack from the battery.
There is a risk of explosion: First disconnect the black (-) pole calliper, coil the cable and attach
the pole calliper to the designated holder. Then disconnect the red (+) pole calliper, coil the
cable and attach the pole calliper to the designated holder.

6. Operating instructions

6.1 Overview

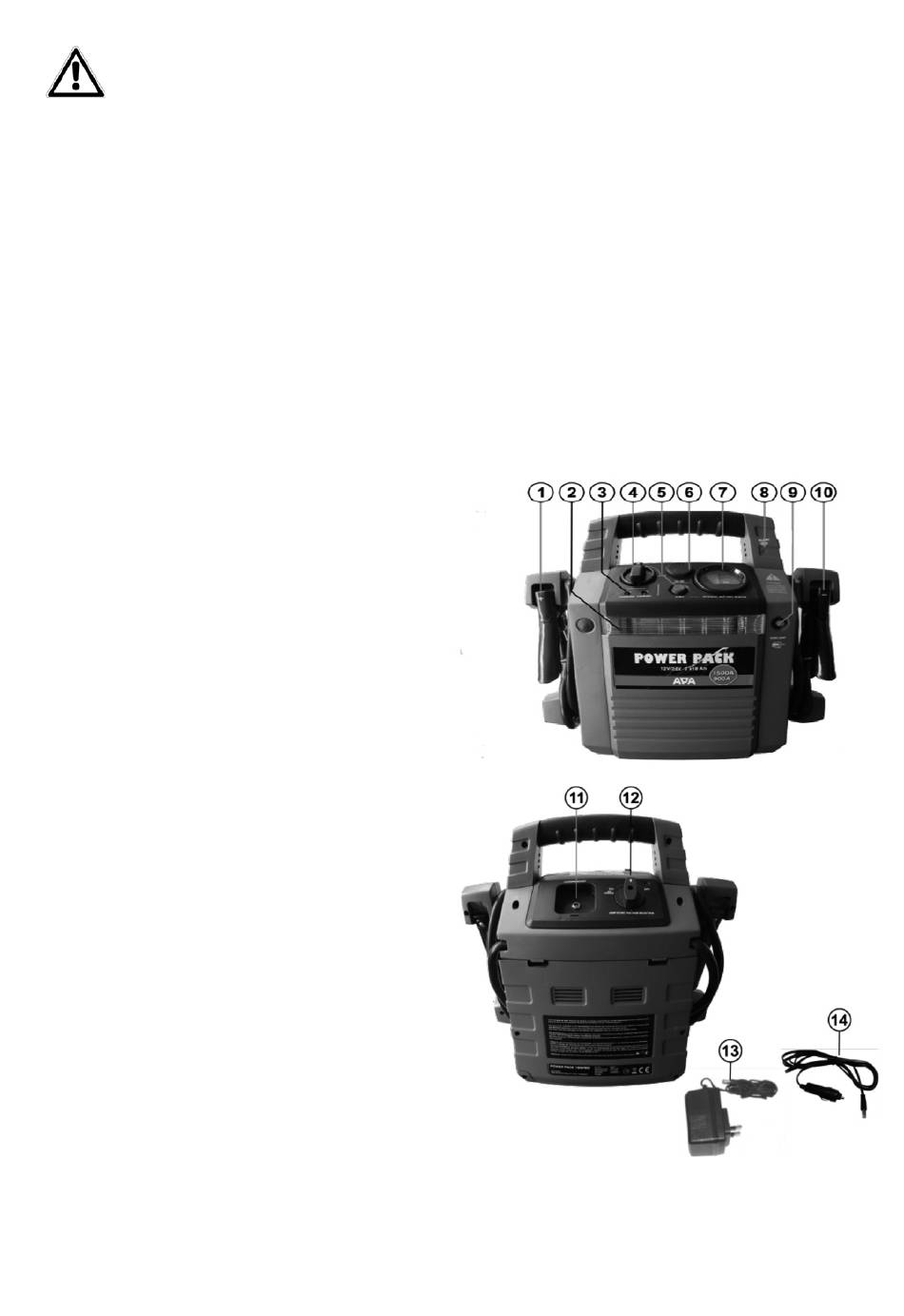

Figure 1: Overview, front
1 Pole callipers, (+) red
2 LED working light
3 Charging control lamp
4 On/Off switch of starter aid
5 Control button for charge status
6 12 V output
7 Voltmeter for charge status
8 Incorrect poling protection display
9 On/Off switch for LED working light
10 Pole callipers, (-) black
Figure 2: Overview, rear
11 Charging socket
12 Selection switch for starter
aid voltage/charge
13 Plug charger
14 12 V charging cable

6.2 Charging the power pack

The power pack is delivered in a partially charged state. Charge the power pack fully after purchase or before using for
the first time.
