IMPORTANT: Before you start with the installation of the product, read the attached IMPORTANT SECURITY NOTES very carefully and follow all the herein given information very accurate!

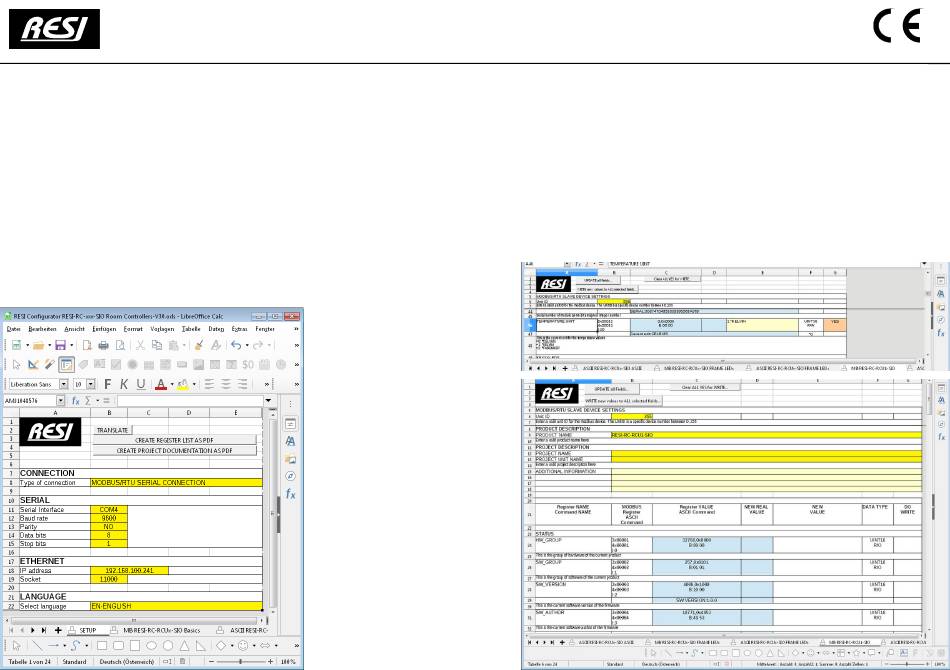

Figure 3: LIBRE OFFICE (R) configurator
1. Install the free OfficeSuite LIBRE OFFICE (R) from the Internet on
your PC. Change in the dialog
Tools→Options→Security→Macro security the security level on
medium or low.
2. Download our ZIP file with the current configuration table for your
device from our website.
3. Go to the SETUP worksheet and set the desired serial
connection.
4. Select the desired sheet with the desired tabs.
5. Set the UnitID on the worksheet to the UnitID you configured.
6. Click on "UPDATE all Fields...". All registers are read out and
displayed.
Figure 4: LIBRE OFFICE (R) table with MODBUS register
VALUES write:
1. Click on "Clear ALL YES for WRITE..." to switch off all write commands in the active worksheet.
2. Select the entry in the table that you want to change and enter a new value or select a new value from the
list.
3. Change the value in the DoWrite column from NO to YES
4. Click on "WRITE new values to ALL selected fields...". All write commands are now executed.
