Connection when the PN-ZB01
(optional) is attached
The PN-ZB01 expansion board (optional) allows the use of
additional connection terminals.
6. PC/AV DVI-D input terminal
• Set DVI of INPUT SELECT on the OPTION menu
according to the device to be connected.
• Select the audio input terminal to be used in PC DVI-D or
AV DVI-D of AUDIO SELECT on the OPTION menu.
7. PC RGB input terminals
• Set BNC of INPUT SELECT on the OPTION menu to PC
RGB when using the PC RGB input terminals.
• Select the audio input terminal to be used in PC RGB of
AUDIO SELECT on the OPTION menu.
8. AV component input terminals
• Set BNC of INPUT SELECT on the OPTION menu to
AV COMPONENT when using the AV component input
terminals.
• Select the audio input terminal to be used in AV
COMPONENT of AUDIO SELECT on the OPTION menu.
9. AV video input terminal
• Select the audio input terminal to be used in AV VIDEO of
AUDIO SELECT on the OPTION menu.
10. AV S-video input terminal
• Select the audio input terminal to be used in AV S-VIDEO
of AUDIO SELECT on the OPTION menu.
11. Audio1 input terminals / Audio2 input terminals
• Set the audio input terminal to be used in each input
mode in AUDIO SELECT on the OPTION menu.
12. LAN terminal
• You can control the monitor from a PC on a network by
connecting a commercially available LAN cable between
this terminal and a network.
13. External speaker terminals
• To use external speakers, set SPEAKER SELECT on the
SETUP menu to EXTERNAL.
• Be sure to use external speakers with an impedance of 6
Ω or greater and a rated input of at least 10 W.
1
Approx.
3-15/16 inch
(10 cm)

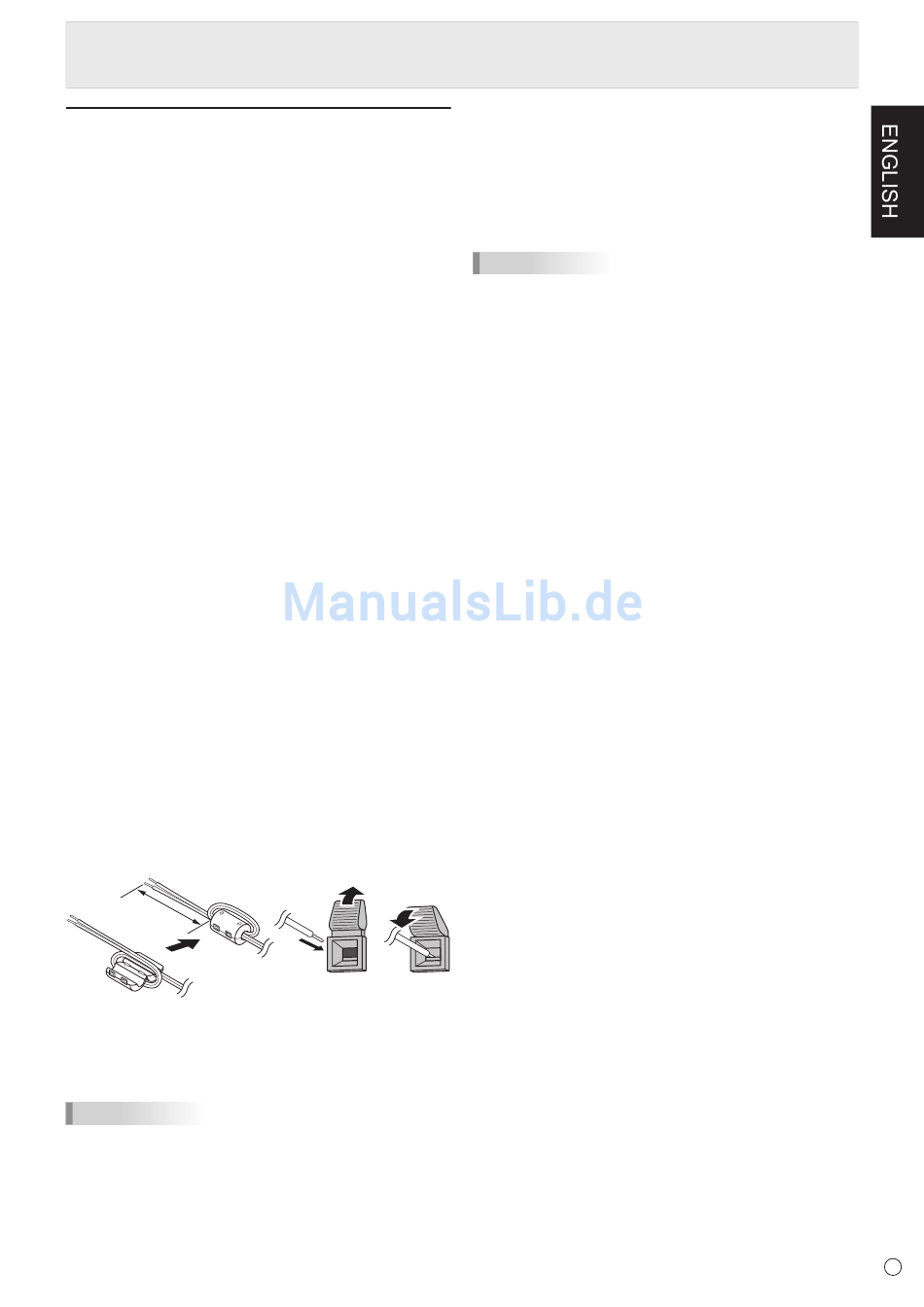

1. Attach a speaker cable core (included with the PN-ZB01) to
the end of the speaker cable connected to the monitor.
2. While pushing the tab, insert the tip of the cable.
3. Release the tab.
TIPS
• Be sure to connect the + and - terminals and the left and
right speakers properly.
• Avoid short circuiting the + and - terminals.
• When SPEAKER SELECT is set to EXTERNAL, the
internal speakers are disabled.
2 3
Connecting Peripheral Equipment
14. PC/AV DVI-D output terminal
• The video of the PC/AV DVI-D input can be output to an
external device.
• Outputting HDCP-encrypted video requires an external
device which supports HDCP.
• This terminal allows the daisy chain connection of up to 5
monitors.
TIPS
• The length of the signal cables or surrounding environment
may affect the image quality.
• The screen may not display properly when using terminals
other than PC DVI-D/AV DVI-D for the input mode. In this
case, turn off the power to all the monitors connected in a
daisy chain and then turn the power on again.
• When connecting monitors in a daisy chain set AUTO
INPUT CHANGE to OFF.
• Video output is disabled in the following cases:
When the input mode is PC HDMI/AV HDMI
When PIP SOURCE of the PIP/PbyP menu is set to PC
HDMI or AV HDMI
When the power is turned off
When the monitor is in input signal waiting mode
