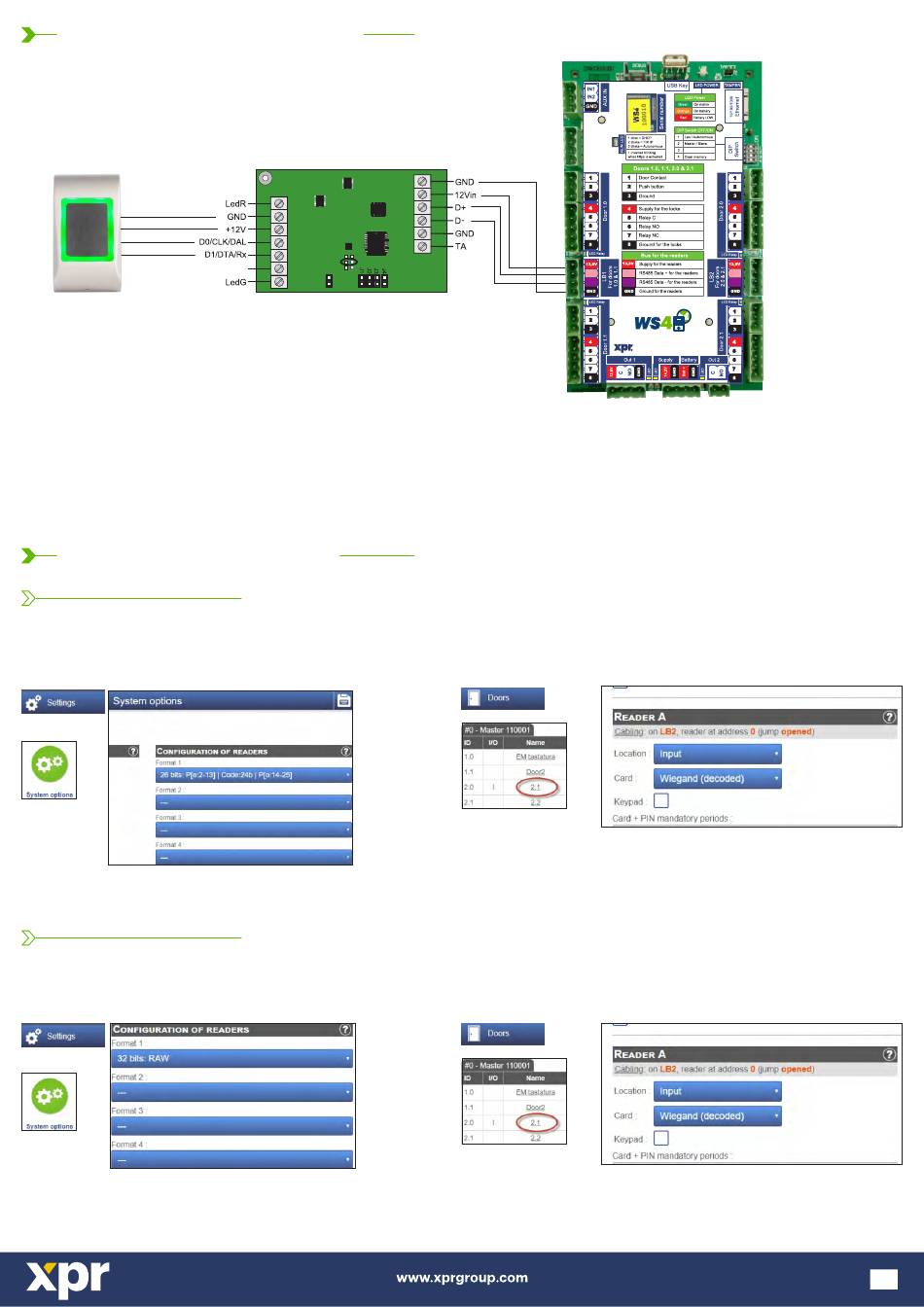

4. CONNECTION DIAGRAM

GND
+12V DC
D0
D1
Wiegand
Reader
- Set the desired Wiegand Output of the reader.
- Connect the Wiegand Reader to the converter as shown in the picture above.
- Put the Address Jumper in the converter to the desired address, 0 or 1.
- Set the parameters for the reader in the WS4 software.

5. SOFTWARE SETTINGS

5.1 WIEGAND 26 BIT
In Settings/System Options select "Wiegand 26bit", the one shown in the picture below.
In Doors/Reader/Card select "Wiegand decoded".
5.2 WIEGAND 32 BIT
In Settings/System Options select "Wiegand 32bit RAW", the one shown in the picture below.
In Doors/Reader/Card select "Wiegand decoded".
Buzzer
WS4-CNV
Wiegand to RS485 converter
A A
B B
WS4
www.xprgroup.com
Controller
A
B
2
