| REAR PANEL

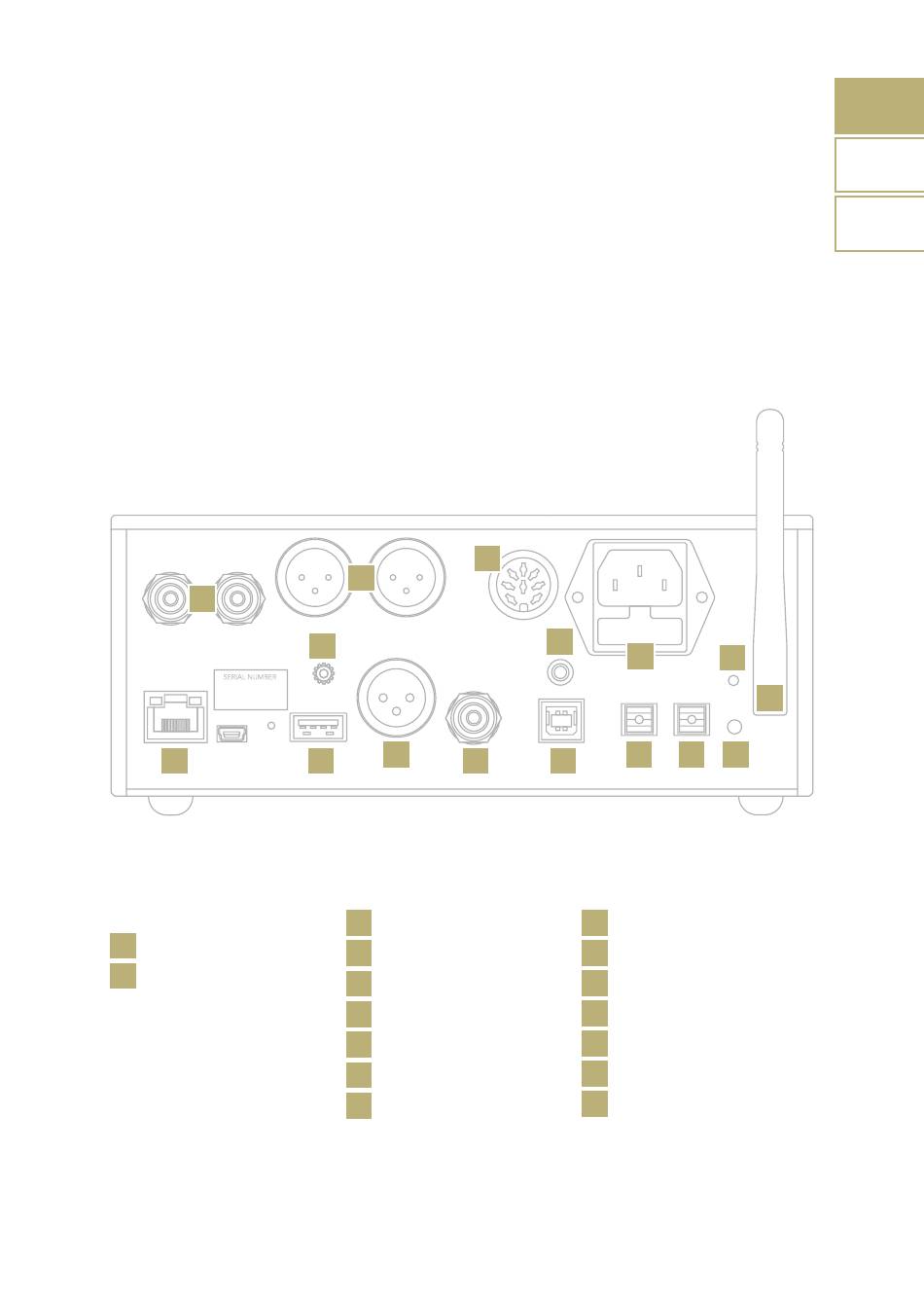

REAR PANEL OVERVIEW
The DS-10 features a wide selection of high-
quality connections to provide maximum
versatility. The digital inputs include USB-A
and USB-B, TOS, COAX, AES/EBU, and
Ethernet. On the DS-10 PLUS, a 3.5mm
mini-jack is also available as an analog input
to connect a source such as the PH-10. The
PSU IN input is dedicated to the external
1
3
ANALOGUE LINE
OUTPUT
1
RCA unbalanced
2
XLR balanced
power supply PSU-10 EVO to enhance the
performance of your DS-10.
PLEASE NOTE
The antenna is packed separately, please
ensure to install it correctly.
15
2
14
5
4 6
DIGITAL INPUT
3
Ethernet
4
USB-A
5
AES/EBU balanced
6
RCA COAX
7
USB-B
8
TOS 1
9
TOS 2
6
16
13
12
8 9
7
POWER AND OTHERS
10
WPS Wi-Fi reset
11
Wi-Fi Antenna
12
Wi-Fi LED
13
AC plug IEC standard
14
GN Link connector
15
PSU IN
16
LINE IN (available for DS-10
PLUS only)
