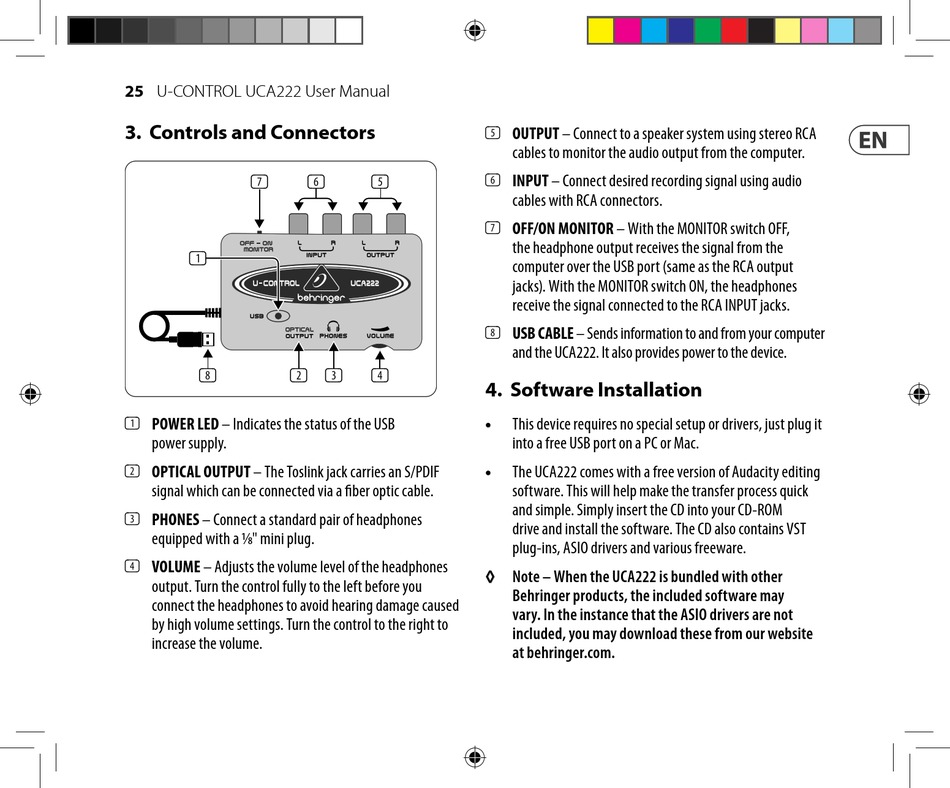

3. Controls and Connectors

(7)
(1)
(8) (2)
(1) POWER LED – Indicates the status of the USB
power supply.
(2) OPTICAL OUTPUT – The Toslink jack carries an S/PDIF
signal which can be connected via a fiber optic cable.
(3) PHONES – Connect a standard pair of headphones
equipped with a 1/8" mini plug.
(4) VOLUME – Adjusts the volume level of the headphones
output. Turn the control fully to the left before you
connect the headphones to avoid hearing damage caused
by high volume settings. Turn the control to the right to
increase the volume.
(5) OUTPUT – Connect to a speaker system using stereo RCA
(6) INPUT – Connect desired recording signal using audio
(6) (5)
(7) OFF/ON MONITOR – With the MONITOR switch OFF,
(8) USB CABLE – Sends information to and from your computer
(3) (4)

4. Software Installation

• •
• •
◊ ◊ Note – When the UCA222 is bundled with other
cables to monitor the audio output from the computer.
cables with RCA connectors.
the headphone output receives the signal from the
computer over the USB port (same as the RCA output
jacks). With the MONITOR switch ON, the headphones
receive the signal connected to the RCA INPUT jacks.
and the UCA222. It also provides power to the device.
This device requires no special setup or drivers, just plug it
into a free USB port on a PC or Mac.
The UCA222 comes with a free version of Audacity editing
software. This will help make the transfer process quick
and simple. Simply insert the CD into your CD-ROM
drive and install the software. The CD also contains VST
plug-ins, ASIO drivers and various freeware.
Behringer products, the included software may
vary. In the instance that the ASIO drivers are not
included, you may download these from our website
at behringer.com.
