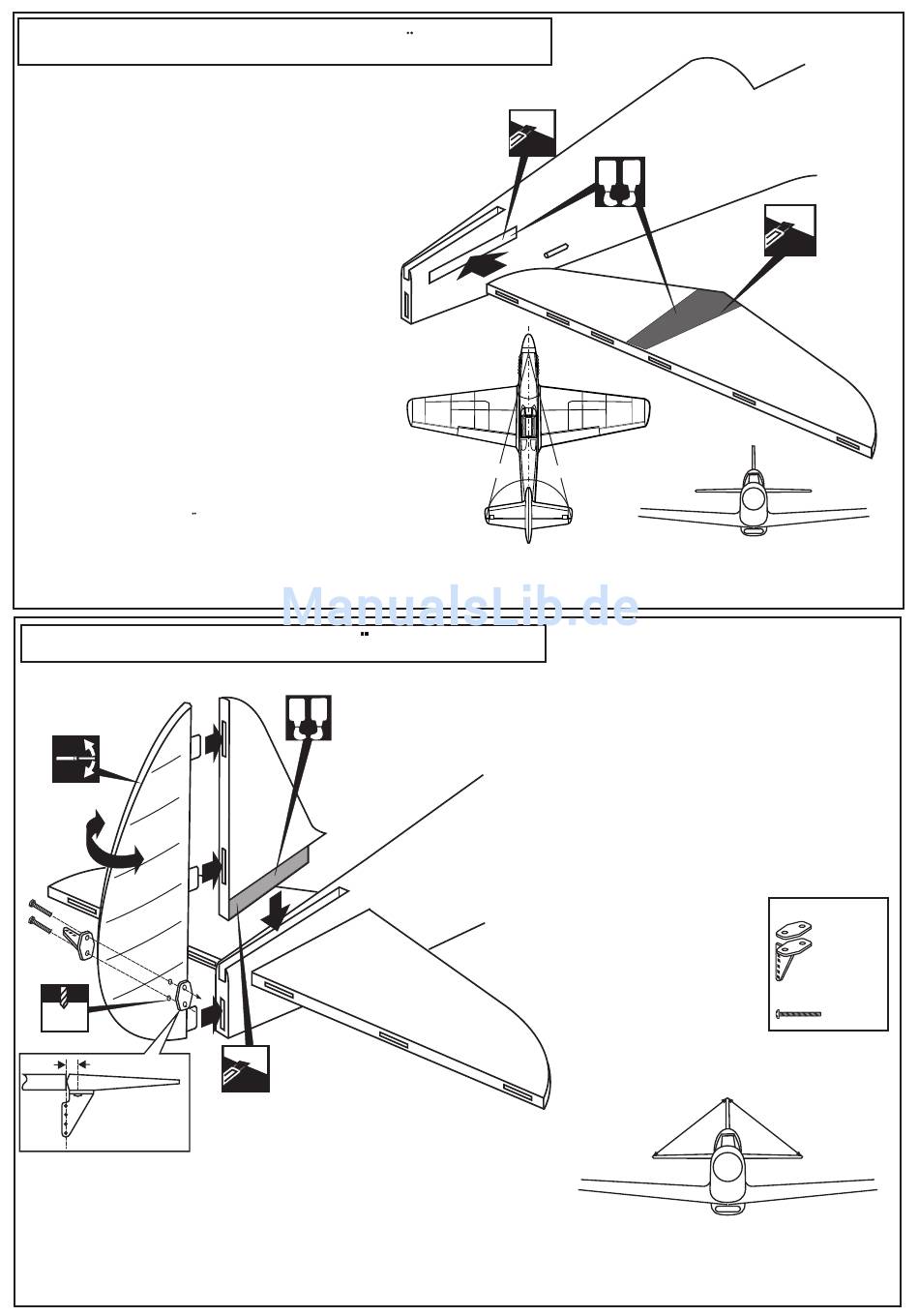

10- Horizontal stabilizer / Hohenruder
1-Trial fit the horizontal stabilizer in place . Check the alignment
of the horizontal stabilizer. When you are satisfied with the
alignment, use a pencil to trace around the top and bottom
of the stabilizer where it meets the fuselage.
2-Remove the horizontal stabilizer from the fuselage. Using the
sharp hobby knife, carefully cut away the covering inside the
lines which were marked above.
3-Spread epoxy (30 minute) onto the top and
bottom of the horizontal stabilizer along the
area where the covering was removed and
to the fuselage where the horizontal stabilizer
mounts.
4-Install the horizontal stabilizer into the fuselage
and adust the alignment as described in steep 1
5-Wipe off any excess epoxy using a paper towel
and kerosene, do not use strong solvent or pure
alcohol to keep the colour of your model not fade.
Allow the epoxy to cure before proceeding to next
step.
Vergewissern Sie sich, sauber geklebt
zu haben. Andernfalls konnen Probleme
mit der Flugeigenschaft auftreten!
* WARNING: When removing any covering from the airframe, please ensure that you secure the cut edge with CA
or similar cement. This will ensure the covering remain tight.
11- Vertical stabilizer / Hohenleitwer
5/64"
2.mm
3/8" (10mm)
Elev.
Stab.
Securely glue together. If coming off during flight,
you lose control of your air plane!
* WARNING: When removing any covering from the airframe, please ensure that you secure the
cut edge with CA or similar cement. This will ensure the covering remain tight.
Apply the epoxy
A B
both side
Cut away only
the covering
both side*
Cut away only the
covering both side
Apply the epoxy
A B
both side
A
A'
B
O
O
90
90
1-Trial fit the vertical stabilizer in place . Check the alignment
of the vertical stabilizer. When you are satisfied with the
alignment, use a pencil to trace around the right and left of the
stabilizer where it meets the fuselage.
2-Remove the vertical stabilizer from the fuselage. Using the
sharp hobby knife, carefully cut away the covering inside the
lines which were marked above.
3-Spread epoxy (30 minute) onto the right and left and bottom
of the vertical stabilizer along the area where the covering
was removed and to the fuselage where the vertical stabilizer
mounts.
4-Install the vertical stabilizer into the fuselage and adust the
alignment as described in steep. 1
B = B'
C
C = C'
Cut away only
the covering
both side *
A = A'
B = B'
B'
Control horn
................1
2x12mm screw
..........2
B
B'
C'
