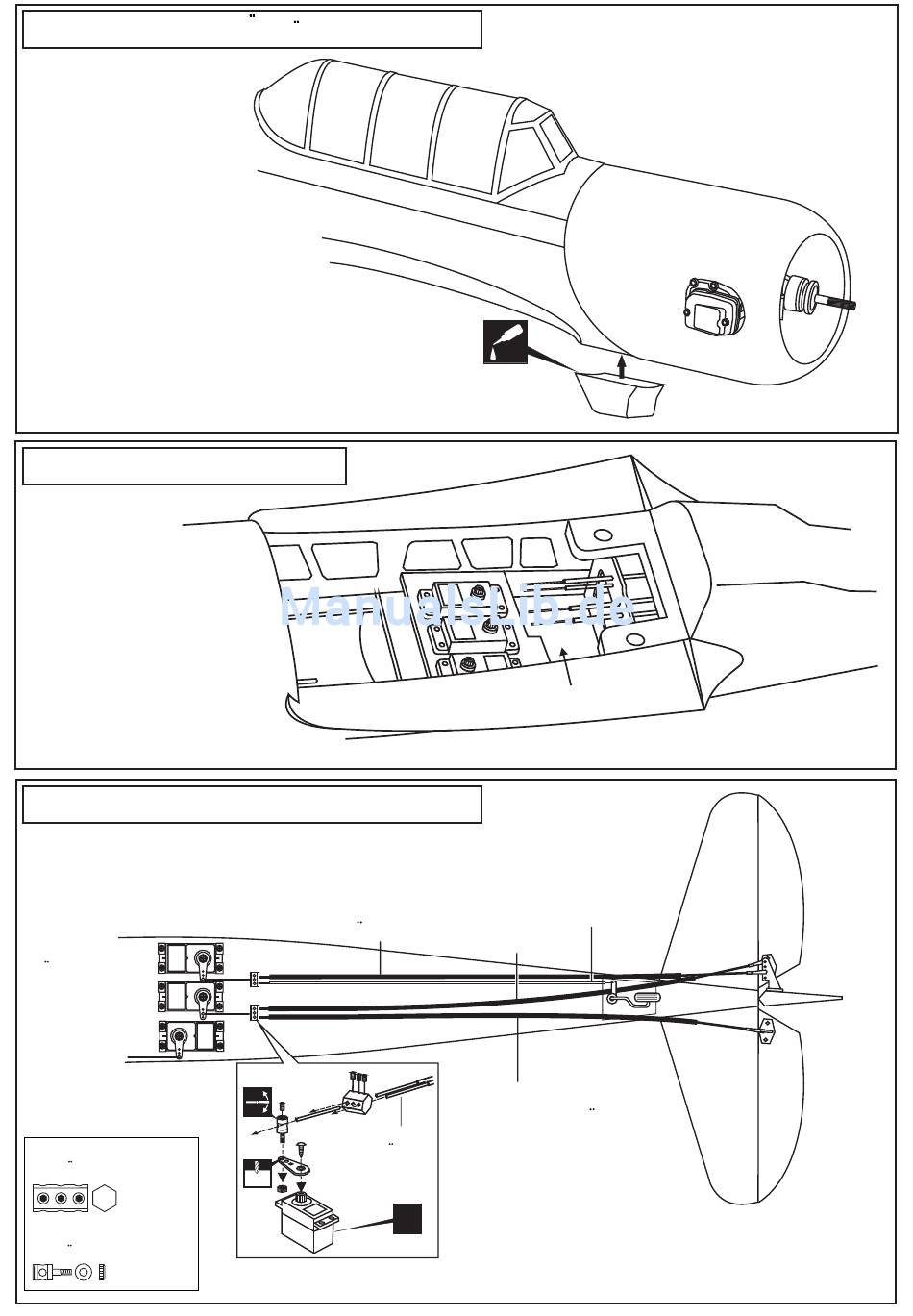

20- Air scoop / Olkuhlerattrappe
Note: Only one pilot in cockpit
The second pilot must purchase separately.
(VQAP09)
21- Servo installation
NOTE: Place of the servos may be
change depend of engine
(Four-stoke or two-stroke engine)
22- Linkages / Ruderanlenkung
Bottom view /Ansicht von unten
Elevator servo
Hohenruderservo
Rudder servo
Seitenruderservo
Throttle servo
Drosselservo
Connector
Gestangeanschluss
............1
Connector
Gestangeanschluss
............3
Elevator pushrod
Rudergestange
3mm set Screw
Elevator pushrod
Rudergestange
2 mm
X
CA
ABS air-scoop
Receiver area
Bottom view /Ansicht von unten
Tail wheel pushrod
Rudder pushrod
Elevator pushrod
Rudergestange
