Inhaltszusammenfassung für ESX Vision VN710 VW-U1

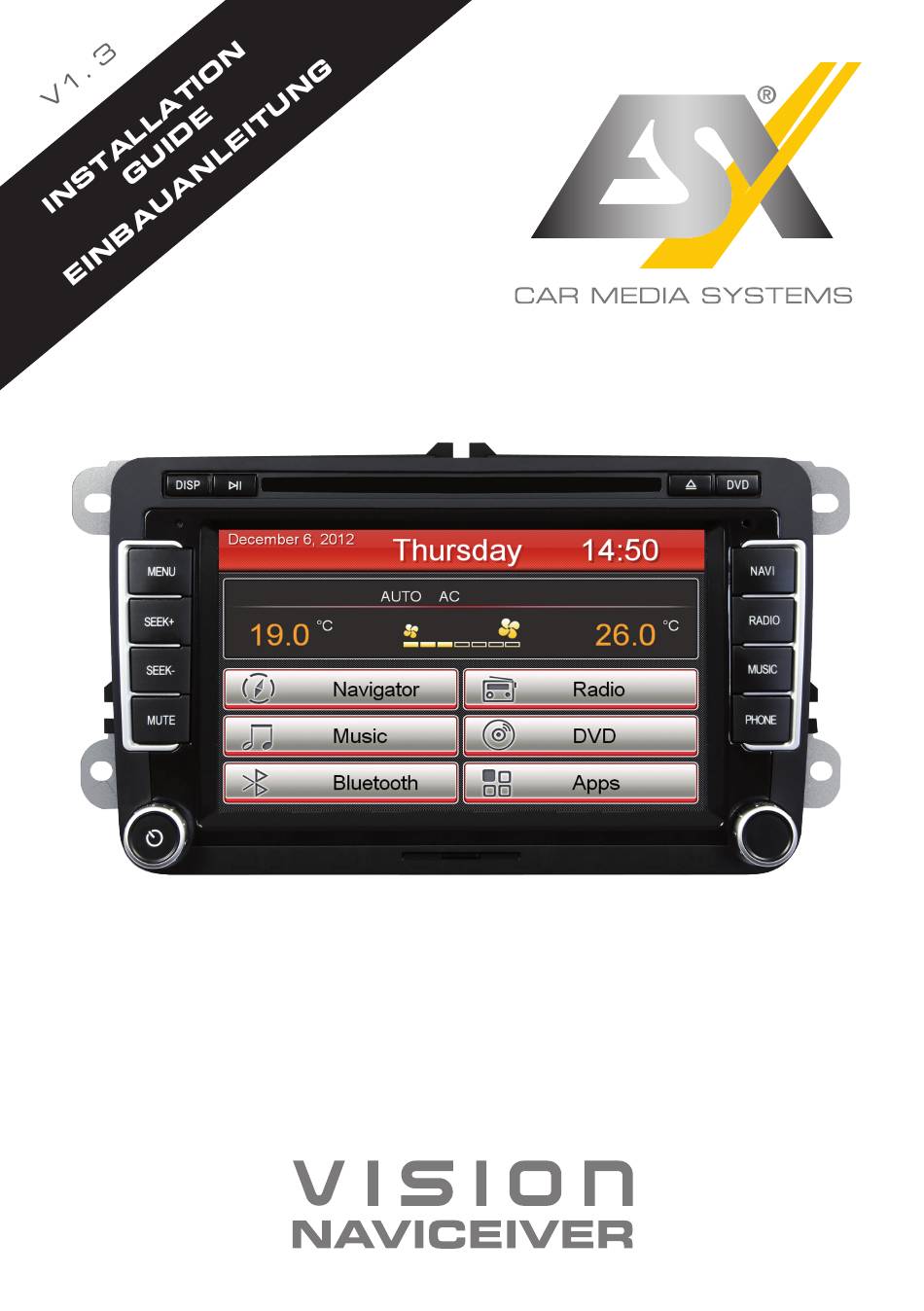

  • Seite 1 VN710 VW-U1 VN710 VW-U1 -DAB VN710 VW-P1...
  • Seite 2 INSTALLATION NOTES / Installationshinweise Important Notes prior to installation: This guide is an installation aid for a proper installation of the device. Please read the following instructions prior installation: 1.) Please treat all parts of the sound system and the components of your vehicle with caution. 2.) Follow under all circumstance the regulations of the vehicle manufacturer and do not make any modifications on the vehicle, which could interfere the driving safety.
  • Seite 3 INDEX / Inhaltsverzeichnis Scope of delivery ..........................4 Lieferumfang ............................4 Connection Diagram ........................... 6 Anschlussdiagramm ..........................6 Installation notes ..........................7 Installationshinweise..........................7 VW GOLF V (2003 - 2009) Installation example ......................... 10 Einbaubeispiel ............................ 10 VW GOLF PLUS (2005 >) Installation example .........................
  • Seite 4 SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE SLOT QUANTITY Artikel Abbildung Steckplatz Anzahl MAin DeViCe – Hauptgerät STYLUS – Markierstift MiCRO SD CARD 8GB inKL: nAViGATiOn SOFTWARe – MicroSD Speicherkarte 8GB Navigationssoftware ReMOTe COnTROL – Fernbedienung ViDeO inPUT CABLe SeT Video-Eingang Kabelsatz ReAR CAM inPUT Rückfahrkamera-Eingang...
  • Seite 5 SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE SLOT QUANTITY Artikel Abbildung Steckplatz Anzahl AUDiO OUT (SUBWOOFeR/CenTeR) Audio-Ausgang (Subwoofer/Center) USB CABLe SeT WiTH 2 COnneCTORS USB Kabelsatz mit 2 Anschlüssen iPOD / iPHOne COnneCTOR iPod / iPhone Anschluss BT-MiCROPHOne BT-Mikrofon GPS AnTennA GPS Antenne HAnDBRAKe COnneCTiOn Handbremsen-Anschluss...
  • Seite 6 CONNECTION DIAGRAM / Anschlussdiagramm BT-MiCROPHOne BT-Mikrofon AUDiO OUT (DUAL ZOne OR FROnT/ReAR) Audio-Ausgang (Dual Zone oder Front/Rear) VN710 VW-U1-DAB DAB AnTennA DAB Antenne AUDiO OUT (SUBWOOFeR/CenTeR) WiTH ReMOTe TURn On Audio-Ausgang (Subwoofer/Center) mit Einschaltleistung „Remote“ ViDeO inPUT CABLe SeT Video-Eingang Kabelsatz FROnT CAM inPUT (optional) Frontkamera-Eingang (optional) SPeCiFiC COnneCTOR...
  • Seite 7 Vermeiden Sie das Verlegen des Kabels über die Lenksäule. In der Regel sollte das Kabel lang genug sein, um die A-Säule (Fahrerseite) über die Beifahrerseite zu erreichen. Ein evtl. werksseitig vorhandenes Mik- rofon ist nicht kompatibel mit dem ESX Gerät. Bitte verwenden Sie das mit- gelieferte Mikrofon.
  • Seite 8 Depending on the type of vehicle the CAn-BUS sends the information of the handbrake signal to the eSX device. if this is not the case, the included cable handbrake connection (14) needs to be connected. The signal must be con- nected with ground while the handbrake is applied.
  • Seite 9 „CCD-Camera“ checkbox under APPS -> OPTiOnS -> DiSPLAY at the eSX device. Operation note: When the reverse gear is engaged, the device does not allow any other operation, all the buttons and controller except volume control are blocked for security reasons.
  • Seite 10 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF V (2003-2009) 1.) Remove the light sensor from the ventilation grille (depending on model, if applicable) below the windscreen. 1.) Entfernen Sie den Lichtsensor am Lüftungsgitter (Modellabhängig, falls vorhanden) unter der Windschutzscheibe. 2.) Lift the sensor carefully, after you have slightly loosen the left and right fixings.
  • Seite 11 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF V (2003-2009) 5.) Carefully lift the ventilation cover and set it aside. 5.) Heben Sie vorsichtig die Lüfterabdeckung und legen sie beiseite. 6.) Remove both screws (Torx 25) of the ventilation. 6.) Entfernen Sie beide Schrauben (Torx 25) des Lüfters. 7.) Carefully lift the ventilation frame upward, but only a bit, the frame is still connected with the original radio.
  • Seite 12 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF V (2003-2009) 9.) Lift the upper panel a bit. 9.) Ziehen Sie die obere Blende ein wenig nach oben. 10.) Remove both screws of the panel and loose the radio slightly. 10.) Entfernen Sie beide Schrauben der Blende und lockern das Radio ein wenig. 11.) Carefully remove the panel around the radio.
  • Seite 13 15.) Lay the connection cable sets of new eSX device (refer to page 4-5) inside the vehicle to the desired location and connect these according with the sockets on the new eSX device. Plug in also the huge car specific and the antenna connector. For a proper connection of the both Fakra jacks you need an additional adaptor (refer to page 2) 15.) Verlegen Sie nun die Anschlusskabel des neuen ESX Geräts (siehe S.
  • Seite 14 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF PLUS (2005 - >) 1.) Remove the 2 panels over the original radio with a mounting wedge. 1.) Entfernen Sie die beiden Blenden über dem Original-Radio mit einem Montagekeil. 2.) Disconnect the cable plug on the right panel (Airbag Control Lamp) on the back.
  • Seite 15 8.) Lay the connection cable sets of new eSX device (refer to page 4-5) inside the vehicle to the desired location and connect these according with the sockets on the new eSX device. Plug in also the huge car specific and the antenna connector. For a proper connection of the both Fakra jacks you need an additional adaptor (refer to page 2) 8.) Verlegen Sie nun die Anschlusskabel des neuen ESX Geräts (siehe S.
  • Seite 16 VOLKSWAGEN GOLF PLUS (2005 - >) 9.) Before you complete the installation, make a function check. Please note that it may take up to 15 minutes, until a GPS signal can be received. ATTENTION: Before you start the function check and turn on the ignition, you must mandatorily reconnect the Airbag Control Lamp (Right panel).
  • Seite 17 INSTALLATION EXAMPLE / Einbaubeispiel VOLKSWAGEN GOLF VI (2008 - 2012) 1.) Loosen the radio panel with a mounting wedge. 1.) Lockern Sie die Radioblende mit einem Montagekeil. 2.) Remove then the radio panel. 2.) Entfernen Sie dann die Radioblende. 3.) note: The radio panel is held by 6 clips 3.) Hinweis: Die Radioblende ist mit 6 Halteclips befestigt.
  • Seite 18 7.) Lay the connection cable sets of new eSX device (refer to page 4-5) inside the vehicle to the desired location and connect these according with the sockets on the new eSX device. Plug in also the huge car specific and the antenna connector. For a proper connection of the both Fakra jacks you need an additional adaptor (refer to page 2) 7.) Verlegen Sie nun die Anschlusskabel des neuen ESX Geräts (siehe S.
  • Seite 19: Notes / Notizen

    NOTES / Notizen...
  • Seite 20 Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49(0)7253 - 9465-0 · Fax +49(0)7253 - 946510 www.esxaudio.de - www.audiodesign.de ©2013 All Rights Reserved...
