Robus RMR5LST-01 Installation

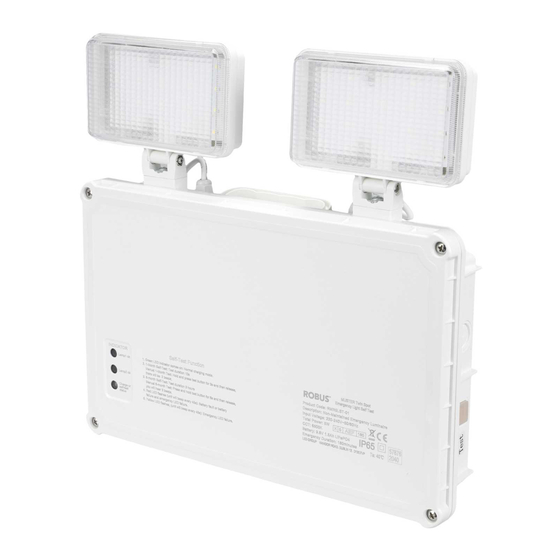

MUSTER 5W LED TWIN SPOT, IP65, SELF TEST, WHITE
RMR5LST-01
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or use of this product, consult a competent electrician
Product technical information and specification may change over time without prior notification. For the latest technical information please visit our web site
www.robus.com or robusdirect.com
0°C < Ta < +40°C, 220V – 240V ~ 50/60Hz, Class II, IP65, battery warranty 3 years
Luminaire is non-dimmable
Suitable for mounting on a normally flammable surface.
Installation
1. Ensure mains supply is switched off before commencing installation.
2. Open front cover by removing screws.
3. Use appropriate cable knockout.
4. Mark appropriated fixing points on the wall, ensure that the holes do not impinge on joists, pipe work,
cables or other building services.
5. Insert wall plug. Insert screws, do not screw in fully.
6. Feed power cables through knock out. If required use IP Gland.
7. Place luminaire on to screws.
8. Connect to supply terminals: Brown to L and Blue to N (for continuity connect Earth Green/Yellow to E)
9. Write installation date on the battery and connect battery to PCB.
10. Refit the front cover.
Self-Test
This is a non-maintained emergency fitting, when main power is connected, the green charging LED should come on and indicating the correct battery has
Started, The LEDs inside twin spots will still be off. When main power is lost, the fitting will go into emergency mode, LEDs inside twin spots will be on.
Press test button once, LEDs will come on for a short period of time in the emergency mode. Testing and inspection must be in accordance with local
codes of practice.
1. Green LED indicator comes on: Normal charging mode
2. 1-Month Self-Test: Test duration 10s
Manual 1-Month Test: Hold and press test button for 3s and then release, there will be 2 beeps
3. 6-month Self-Test: Test duration 3 hours
Manual 6-month Test: Press and hold test button for 6s and then release, you will hear 3 beeps
LED Indicators
4. Red LED flashes (unit will beep every 45s): Battery fault or battery failure AND emergency LED failure
5. Yellow LED flashes, (unit will beep every 45s): Emergency LED failure
6. Clear memory and re-set test schedule: Disconnect supply to Live terminal, fitting will go into emergency mode. Press in and hold the test button for
more than10s and then release, the emergency LED will then go out. New schedule will start when supply to fitting is connected
After installation, the battery will charge for 24 hours. The self-test function will perform a 3-hour test within the next 24 hours. After the initial test, the
fitting will enter 1-Month Test and 6-Month Test schedules.
1. Daily check that charge indicator LED is working.
2. Monthly check: The status of LED indicator and emergency battery discharge.
3. 6-Month and one-year check: The self-test operation is working, that the LED indicators the Emergency LEDs come on and last for a minimum 3 hours
4. Complete record sheet on installation and retain in maintenance file.
5. Update file with ongoing test records for inspection by fire officer or other duly authorised person.
Start: 24-Hour
1-Month Test
Charge
10s discharge
30th day
Emergency battery
During test, all LED
3-hour discharge
indicators are off.
within the next 24hour
After the test
green LED back on
Information for the Product user:
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE marked with crossed
out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for waste electrical
equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is important that it is separated
from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household waste, but should be
disposed of according to local WEEE regulations
Issue 1 070319
Note:
2-Month Test 3-Month Test
10s discharge 10s discharge
30th day 30th day
Emergency battery Emergency battery
During test, all LED During test, all LED
indicators are off. indicators are off.
After the test After the test
green LED back on green LED back on
The Installation must be carried out by a qualified electrician
4-Month Test 5-Month Test
10s discharge 10s discharge
30th day 30th day
Emergency battery Emergency battery
During test, all LED During test, all LED
indicators are off. indicators are off.
After the test After the test
green LED back on green LED back on
INSTRUCTION MANUAL
EN
6-Month Test
( Half a Year )
3hour discharge
30th day
Emergency battery
During test, all LED
indicators are off.
After the test
green LED back on
Page 1
