7.4

Performing your first measurement

Follow the steps described below to perform your first measurement:
Connect the test object "IF Filter" to the Bode 100 using two BNC cables as shown in the figure below.

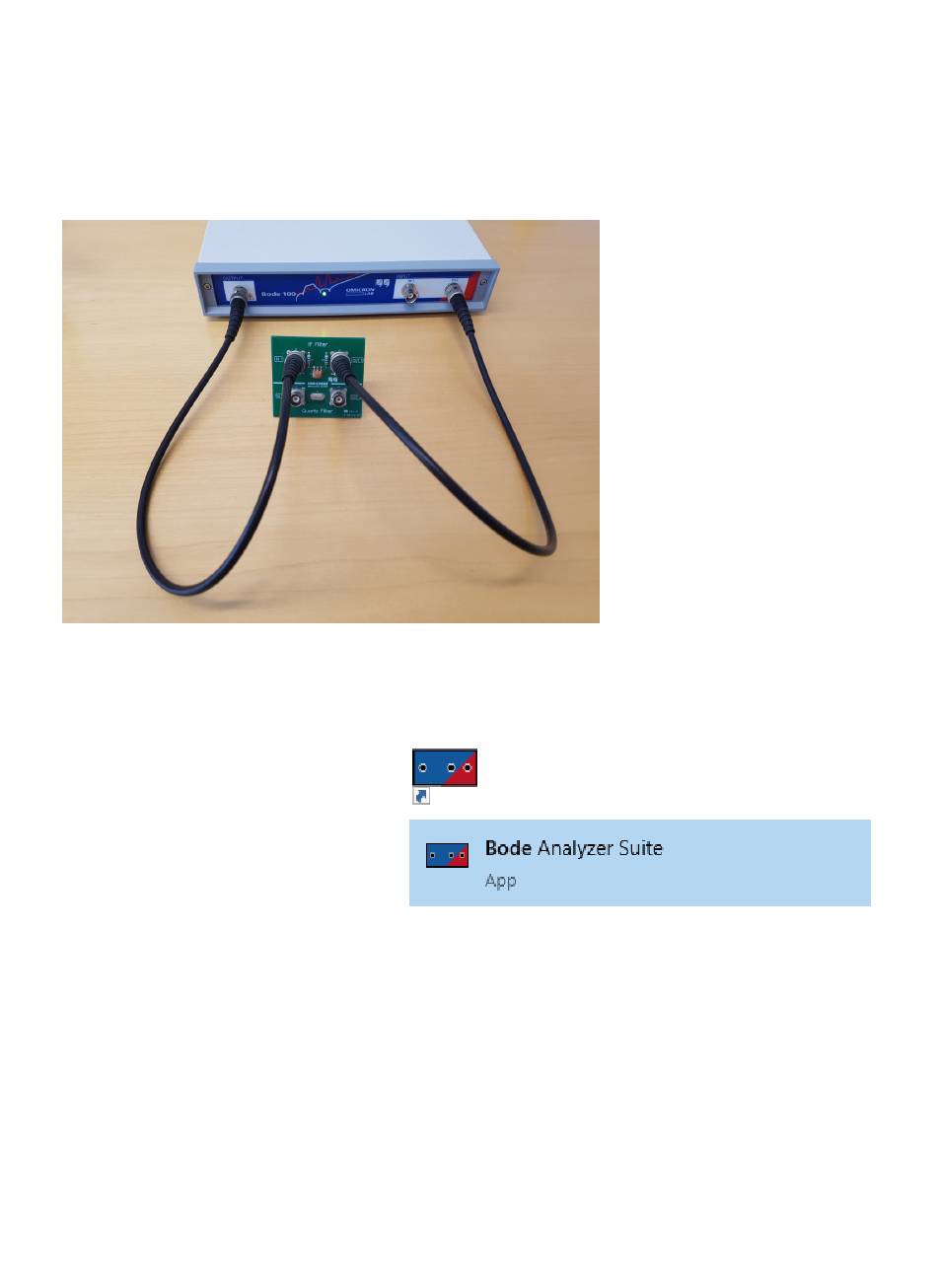

Figure 7-1: Connecting the test object IF Filter to the Bode 100
Now start the Bode Analyzer Suite:
- either by clicking its desktop icon:
- or by using the Microsoft Windows start
menu:
