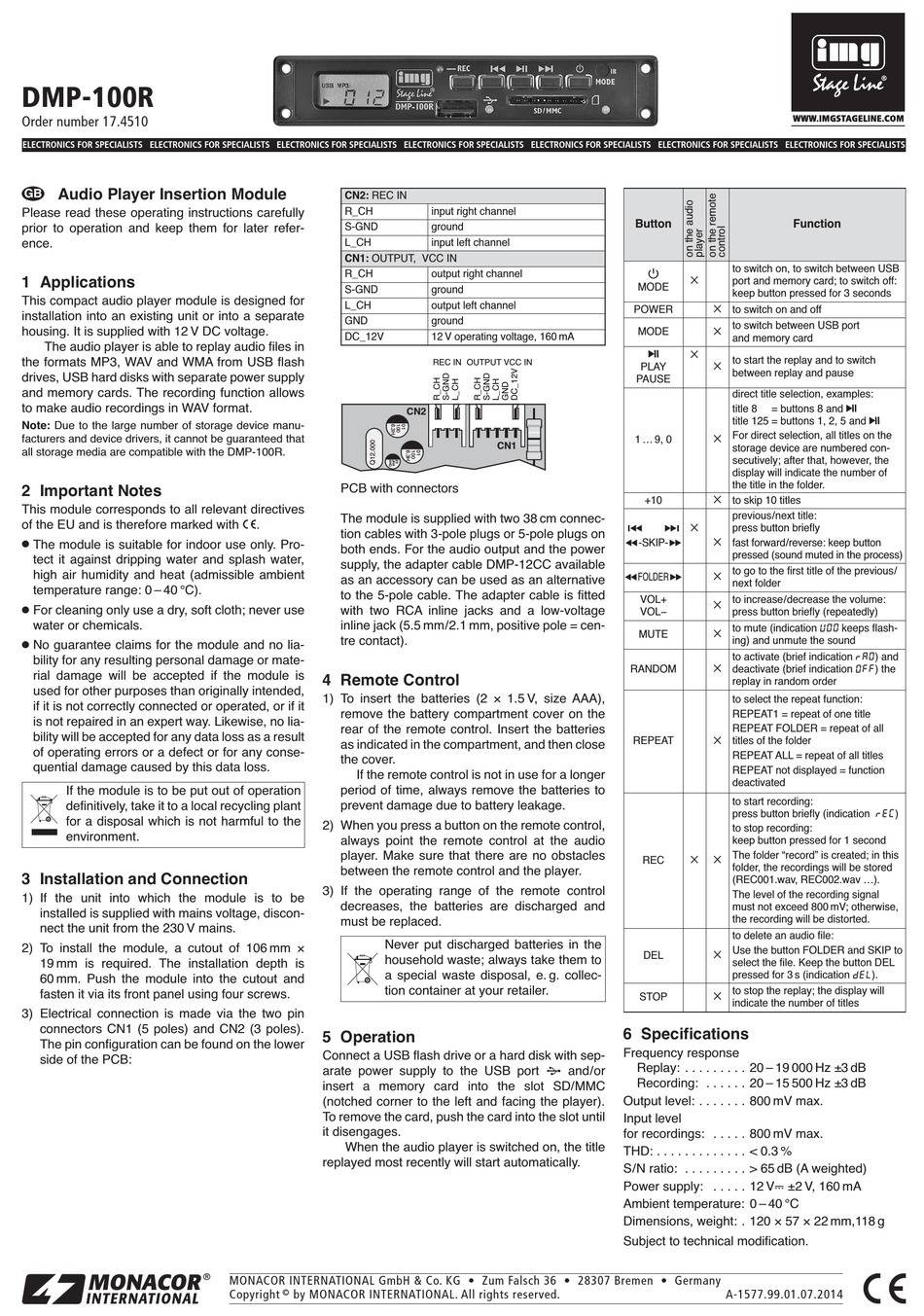

DMP-100R
Order number 17.4510
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
Audio Player Insertion Module
GB
Please read these operating instructions carefully
prior to operation and keep them for later refer-
ence.
1 Applications
This compact audio player module is designed for
installation into an existing unit or into a separate
housing. It is supplied with 12 V DC voltage.
The audio player is able to replay audio files in
the formats MP3, WAV and WMA from USB flash
drives, USB hard disks with separate power supply
and memory cards. The recording function allows
to make audio recordings in WAV format.
Note: Due to the large number of storage device manu-
facturers and device drivers, it cannot be guaranteed that
all storage media are compatible with the DMP-100R.
2 Important Notes
This module corresponds to all relevant directives
of the EU and is therefore marked with
G
The module is suitable for indoor use only. Pro-
tect it against dripping water and splash water,
high air humidity and heat (admissible ambient
temperature range: 0 – 40 °C).
G
For cleaning only use a dry, soft cloth; never use
water or chemicals.
G
No guarantee claims for the module and no lia-
bility for any resulting personal damage or mate-
rial damage will be accepted if the module is
used for other purposes than originally intended,
if it is not correctly connected or operated, or if it
is not repaired in an expert way. Likewise, no lia-
bility will be accepted for any data loss as a result
of operating errors or a defect or for any conse-
quential damage caused by this data loss.
If the module is to be put out of operation
definitively, take it to a local recycling plant
for a disposal which is not harmful to the
environment.
3 Installation and Connection
1) If the unit into which the module is to be
installed is supplied with mains voltage, discon-
nect the unit from the 230 V mains.
2) To install the module, a cutout of 106 mm ×
19 mm is required. The installation depth is
60 mm. Push the module into the cutout and
fasten it via its front panel using four screws.
3) Electrical connection is made via the two pin
connectors CN1 (5 poles) and CN2 (3 poles).
The pin configuration can be found on the lower
side of the PCB:
CN2: REC IN
R_CH
S-GND
L_CH
CN1: OUTPUT, VCC IN
R_CH
S-GND
L_CH
GND
DC_12V
PCB with connectors
The module is supplied with two 38 cm connec-
.
tion cables with 3-pole plugs or 5-pole plugs on
both ends. For the audio output and the power
supply, the adapter cable DMP-12CC available
as an accessory can be used as an alternative
to the 5-pole cable. The adapter cable is fitted
with two RCA inline jacks and a low-voltage
inline jack (5.5 mm / 2.1 mm, positive pole = cen-
tre contact).
4 Remote Control
1) To insert the batteries (2 × 1.5 V, size AAA),
remove the battery compartment cover on the
rear of the remote control. Insert the batteries
as indicated in the compartment, and then close
the cover.
If the remote control is not in use for a longer
period of time, always remove the batteries to
prevent damage due to battery leakage.
2) When you press a button on the remote control,
always point the remote control at the audio
player. Make sure that there are no obstacles
between the remote control and the player.
3) If the operating range of the remote control
decreases, the batteries are discharged and
must be replaced.
5 Operation
Connect a USB flash drive or a hard disk with sep-
arate power supply to the USB port
insert a memory card into the slot SD/ MMC
(notched corner to the left and facing the player).
To remove the card, push the card into the slot until
it disengages.
When the audio player is switched on, the title
replayed most recently will start automatically.
®
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
Copyright
©
by MONACOR INTERNATIONAL. All rights reserved.
input right channel
ground
input left channel
output right channel
ground
output left channel
ground
12 V operating voltage, 160 mA
REC IN OUTPUT VCC IN
CN2
CN1
Never put discharged batteries in the
household waste; always take them to
a special waste disposal, e. g. collec-
tion container at your retailer.
Button
to switch on, to switch between USB
port and memory card; to switch off:
MODE
keep button pressed for 3 seconds
to switch on and off
POWER
to switch between USB port
MODE
and memory card
to start the replay and to switch
PLAY
between replay and pause
PAUSE
direct title selection, examples:
title 8
title 125 = buttons 1, 2, 5 and
For direct selection, all titles on the
1 ... 9, 0
storage device are numbered con-
secutively; after that, however, the
display will indicate the number of
the title in the folder.
to skip 10 titles
+10
previous / next title:
press button briefly
-SKIP-
fast forward / reverse: keep button
pressed (sound muted in the process)
to go to the first title of the previous /
FOLDER
next folder
VOL+
to increase / decrease the volume:
VOL−
press button briefly (repeatedly)
to mute (indication
MUTE
ing) and unmute the sound
to activate (brief indication
RANDOM
deactivate (brief indication
replay in random order
to select the repeat function:
REPEAT1 = repeat of one title
REPEAT FOLDER = repeat of all
REPEAT
titles of the folder
REPEAT ALL = repeat of all titles
REPEAT not displayed = function
deactivated
to start recording:
press button briefly (indication
to stop recording:
keep button pressed for 1 second
The folder "record" is created; in this
REC
folder, the recordings will be stored
(REC001.wav, REC002.wav ...).
The level of the recording signal
must not exceed 800 mV; otherwise,
the recording will be distorted.
to delete an audio file:
Use the button FOLDER and SKIP to
DEL
select the file. Keep the button DEL
pressed for 3 s (indication
to stop the replay; the display will
STOP
indicate the number of titles
6 Specifications
Frequency response
Replay: . . . . . . . . . 20 – 19 000 Hz ±3 dB
and / or
Recording: . . . . . . 20 – 15 500 Hz ±3 dB
Output level: . . . . . . . 800 mV max.
Input level
for recordings: . . . . . 800 mV max.
THD: . . . . . . . . . . . . . < 0.3 %
S / N ratio: . . . . . . . . . > 65 dB (A weighted)
Power supply: . . . . . 12 V ± 2 V, 160 mA
Ambient temperature: 0 – 40 °C
Dimensions, weight: . 120 × 57 × 22 mm,118 g
Subject to technical modification.
A-1577.99.01.07.2014
Function
= buttons 8 and
keeps flash-
) and
) the
)
).
