06. If you have set the DMX address of the dimmer pack, you must make sure that the addresses
are identical to those of the controller.
07 The device now operates as a DMX dimmer. You can adjust the light intensity with your DMX
controller. 0 means no output, 100 is full output.

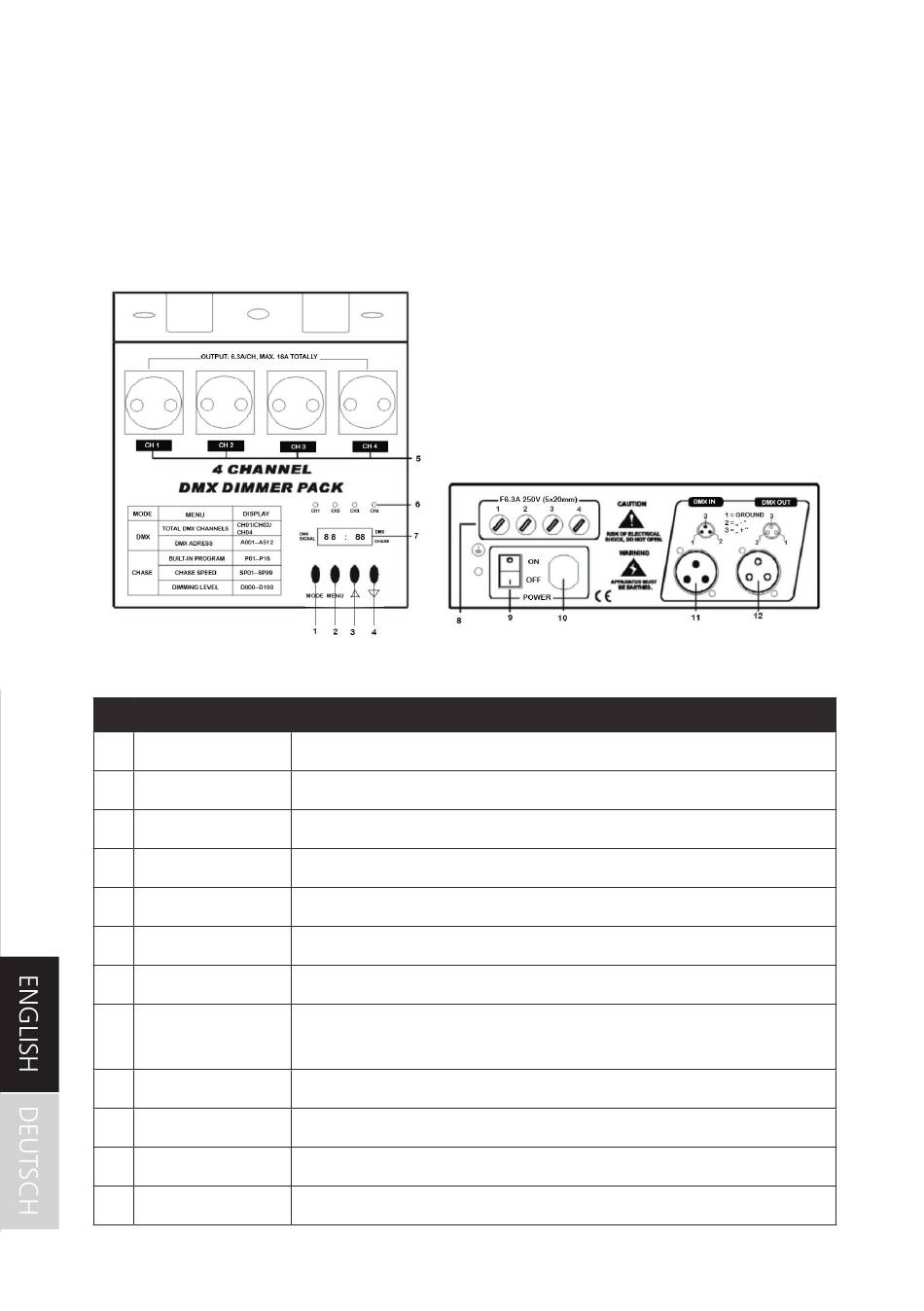

Connections and control elements:

1 Mode key
2 Menu key
3 „Arrow up"-key
4 „Arrow down"-key
5 Current outputs
6 Green LEDs
7 LCD Display
8 Channel fuse
9 On / off switch
10 power cable
11 DMX input
12 DMX output
16
toggles between DMX and CHASE mode.
activates the various functions in DMX and CHASE mode.
increases the value shown in the display.
decreases the value shown in the display.
In total 4 outputs DMX and CHASE mode back and forth.
Indicators - light up when the corresponding channel is activated.
Multifunction display - serves as a monitor to display current settings.
Each of the 4 channels is protected by a 6.3A fuse. These fuses protect the
device from overload and damage. Make sure to replace the fuses only with
identical fuses.
switches the device on or off.
Plug the cable into the unit and a power outlet.
serves as input for DMX signals.
is used to output DMX signals and send them to other DMX devices.
