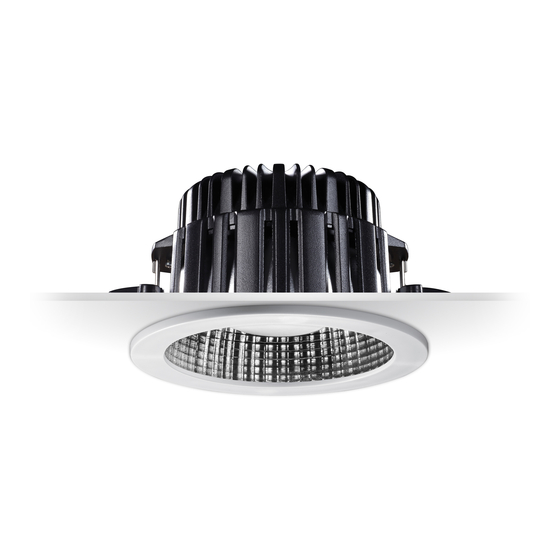

Targetti CCTLed Downlight Bedienungsanleitung

Targetti CCTLed Downlight Bedienungsanleitung

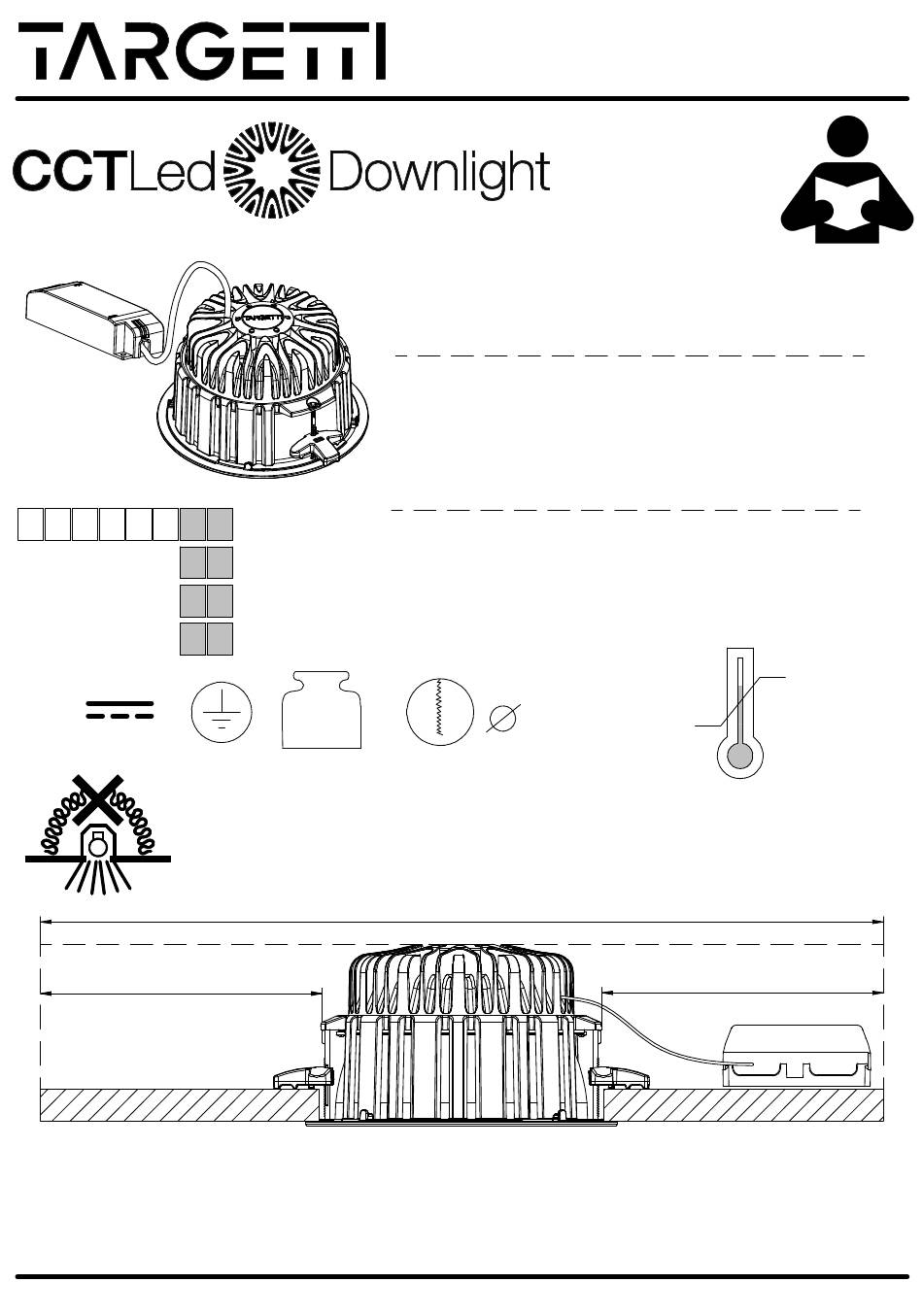

18w sorgente led / led source 22w apparecchio / fixture
Vorschau ausblenden Andere Handbücher für CCTLed Downlight:

Werbung

1 T
X X
X X
E
D
D A
L'apparecchio non deve, in alcuna
circostanza, essere coperto con
materiale isolante o similare.
The luminaire shall, under no
circumstances, be covered with
insulating matting or similar
material.
> 170mm
RG1 secondo norma IEC/TR 62778:2014 / RG1 in accordance with IEC/TR 62778:2014
RG1 selon la norme IEC/TR 62778:2014 / RG1 nach der norm IEC/TR 62778:2014
RG1 enlight IEC/TR 62778:2014 / RG1 volgens IEC/TR 62778:2014
Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy
L
Electronic
1/10V Dimmable
DALI Dimmable
1,3Kg
RG1 de acordo com norma IEC/TR 62778:2014
18W Sorgente Led / Led source
22W Apparecchio / Fixture
COD. 1T2913 / 1T2914 / 1T2917 / 1T2918 / 1T2921
COD. 1T2922 / 1T2925 / 1T2926 / 1T2940 / 1T2941
COD. 1T2944 / 1T2945 / 1T2948 / 1T2949 / 1T2952
COD. 1T2953 / 1T3252 / 1T3254 / 1T3256 / 1T3258
COD. 1T3262 / 1T3264 / 1T3266 / 1T3268
25W Sorgente Led / Led source
30W Apparecchio / Fixture
COD. 1T2915 / 1T2916 / 1T2919 / 1T2920 / 1T2923
COD. 1T2924 / 1T2927 / 1T2928 / 1T2942 / 1T2943
COD. 1T2946 / 1T2947 / 1T2950 / 1T2951 / 1T2954
COD. 1T2955 / 1T3253 / 1T3255 / 1T3257 / 1T3259
COD. 1T3263 / 1T3265 / 1T3267 / 1T3269
16W Sorgente Led / Led source
19W Apparecchio / Fixture
COD. 1T2929 / 1T2930 / 1T2931 / 1T2932
COD. 1T2956 / 1T2957 / 1T2958 / 1T2959
COD. 1T3260 / 1T3261 / 1T3270 / 1T3271
220-240V - 50/60Hz
160mm
In caso di dubbi sulla simbologia,
riferirsi al catalogo o al sito web.
If in doubt about the symbols refer
to catalog or website
500mm
IP43 V.O.
cod. 2CB5CS00
-25°C
IP20 V.I.
> 170mm
www.targetti.com
+35°C
