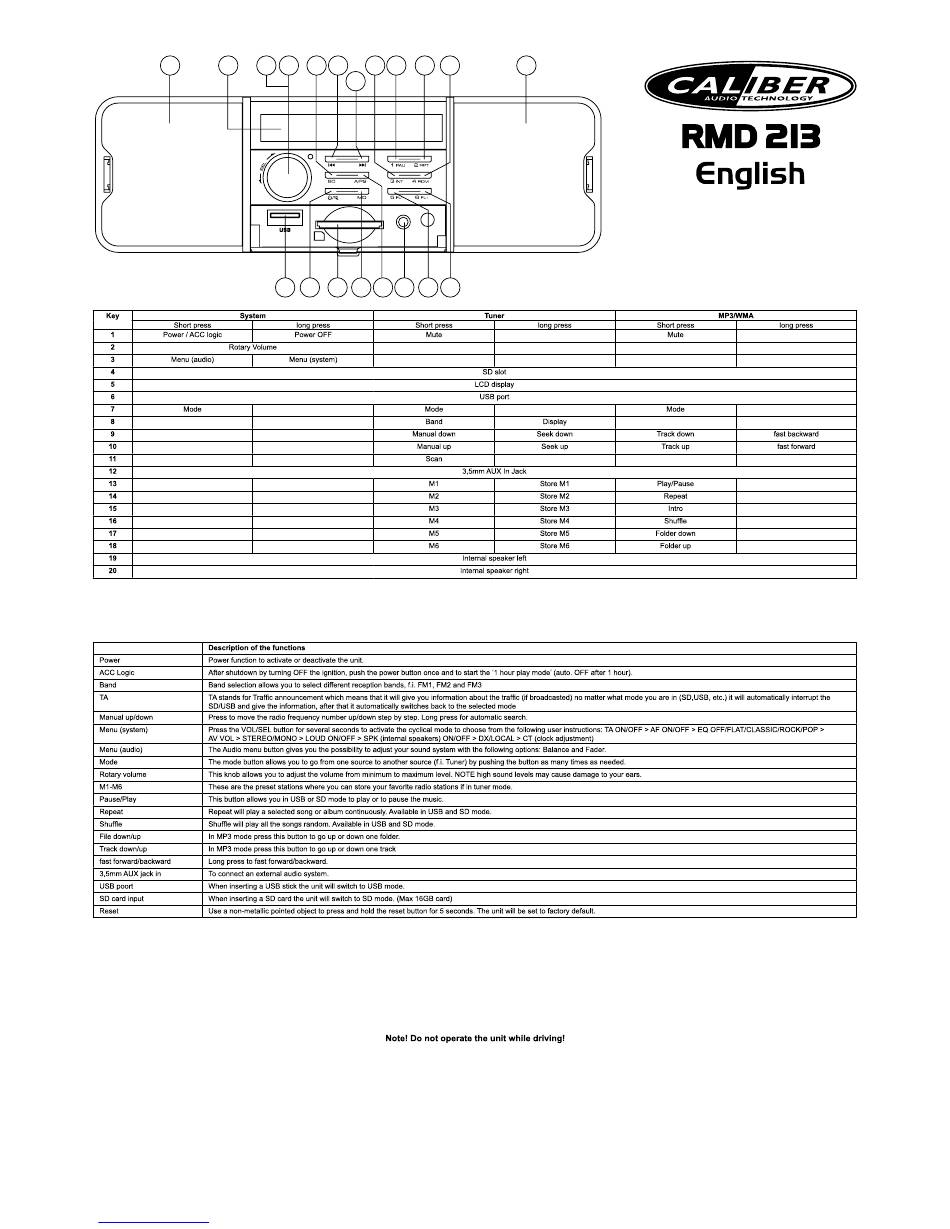

Caliber RMD 213 Schnellstartanleitung Seite 2

19
Key
Short press
1 Power / ACC logic
2
3 Menu (audio)
4
5
6
7 Mode
8
9
10
11
12
13
14
15
16
17
18
19
20
Power
ACC Logic
Band
TA
Manual up/down
Menu (system)
Menu (audio)
Mode
Rotary volume
M1-M6
Pause/Play
Repeat
Shuffle
File down/up
Track down/up
fast forward/backward
3,5mm AUX jack in
USB poort
SD card input
Reset
Downloaded from www.Manualslib.com
5 3 2 8 9 15
10
6 1 4 7 11 12 17 18
System
long press
Power OFF
Rotary Volume
Menu (system)
Description of the functions
Power function to activate or deactivate the unit.
After shutdown by turning OFF the ignition, push the power button once and to start the '1 hour play mode' (auto. OFF after 1 hour).
Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3
TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (SD,USB, etc.) it will automatically interrupt the
SD/USB and give the information, after that it automatically switches back to the selected mode
Press to move the radio frequency number up/down step by step. Long press for automatic search.
Press the VOL/SEL button for several seconds to activate the cyclical mode to choose from the following user instructions: TA ON/OFF > AF ON/OFF > EQ OFF/FLAT/CLASSIC/ROCK/POP >
AV VOL > STEREO/MONO > LOUD ON/OFF > SPK (internal speakers) ON/OFF > DX/LOCAL > CT (clock adjustment)
The Audio menu button gives you the possibility to adjust your sound system with the following options: Balance and Fader.
The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed.
This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
These are the preset stations where you can store your favorite radio stations if in tuner mode.
This button allows you in USB or SD mode to play or to pause the music.
Repeat will play a selected song or album continuously. Available in USB and SD mode.
Shuffle will play all the songs random. Available in USB and SD mode.
In MP3 mode press this button to go up or down one folder.
In MP3 mode press this button to go up or down one track
Long press to fast forward/backward.
To connect an external audio system.
When inserting a USB stick the unit will switch to USB mode.
When inserting a SD card the unit will switch to SD mode. (Max 16GB card)
Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
manuals search engine
13 14 16 20
AUX
Tuner
Short press long press
Mute
SD slot
LCD display
USB port
Mode
Band Display
Manual down Seek down
Manual up Seek up
Scan
3,5mm AUX In Jack
M1 Store M1
M2 Store M2
M3 Store M3
M4 Store M4
M5 Store M5
M6 Store M6
Internal speaker left
Internal speaker right
MP3/WMA
Short press long press
Mute
Mode
Track down fast backward
Track up fast forward
Play/Pause
Repeat
Intro
Shuffle
Folder down
Folder up
