USER´S MANUAL

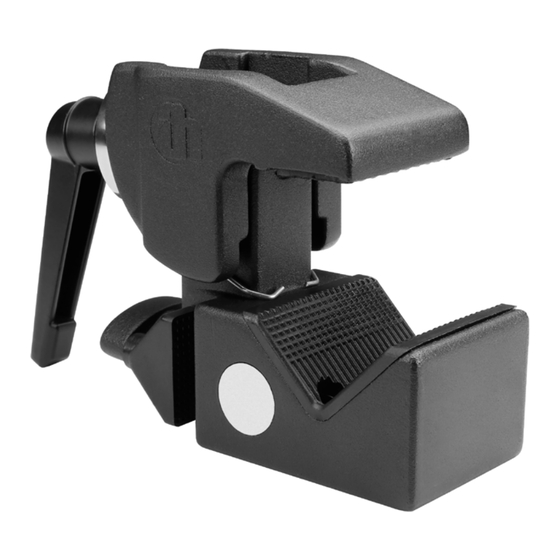

SUPER CLAMP MK2
UNIVERSAL HOOK CLAMP WITH CLAMPING LEVER BLACK
VERSION 2
SAFTY INFORMATION
1. Please read these instructions carefully before you start installation and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the
equipment.
5. Be attentive when setting up the product and protect yourself from injury.
6. This product is intended for indoor use only. Using it outdoors could lead to product failure
and personal injury.
7. Do not modify this equipment.
8. Comply with all applicable disposal laws in your country. During disposal of packaging,
please separate plastic and paper/cardboard.
9. Plastic bags must be kept out of reach of children.
10. If you have any questions refering to this instruction or any warnings, please contact your
local distributor.
11. Check load capacity of tube prior to the fixing.
12. Do not use when defective
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
https:/ /cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_ADAM_HALL.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1,
61267 Neu Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
OPERATION
Use this ratchet handle to secure the clamp onto the bar or fixture. Tighten well for
A
secure grip. The ratchet handle allows you to reposition it should you not have clearance
to rotate the handle in a complete circle to tighten or loosen it. To reposition the handle
position simply pull it out and reposition it.
Use this socket to insert 5/8" (16mm) hexagonal or round spigots.
B
Be sure to push in the locking pin (C) on the side while inserting spigots to make sure the
C
spigot is completely inserted. Once pin C is released, the spigot should be securely held and
should not slip out of the socket. To release the spigot, the locking pin must be pressed.
Once the spigot is in place, be sure to tighten the fastening screw in order to safely
D
secure the spigot.
1x M6 thread for mounting accessories or cameras
E
2x M5 thread (max. load 20 kg at safety factor 8) for additional mounting options for
F
accessories
Optionally available accessory wedge for mounting the clamp on flat surfaces. The
G
pictures show the wedge in storage/transport position. It can be released from here and
placed in the V-shaped jaw of the clamp in order to create a flat surface.
A
B
G
C
F
F E
D
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Phone: +49 6081 9419-0 | adamhall.com

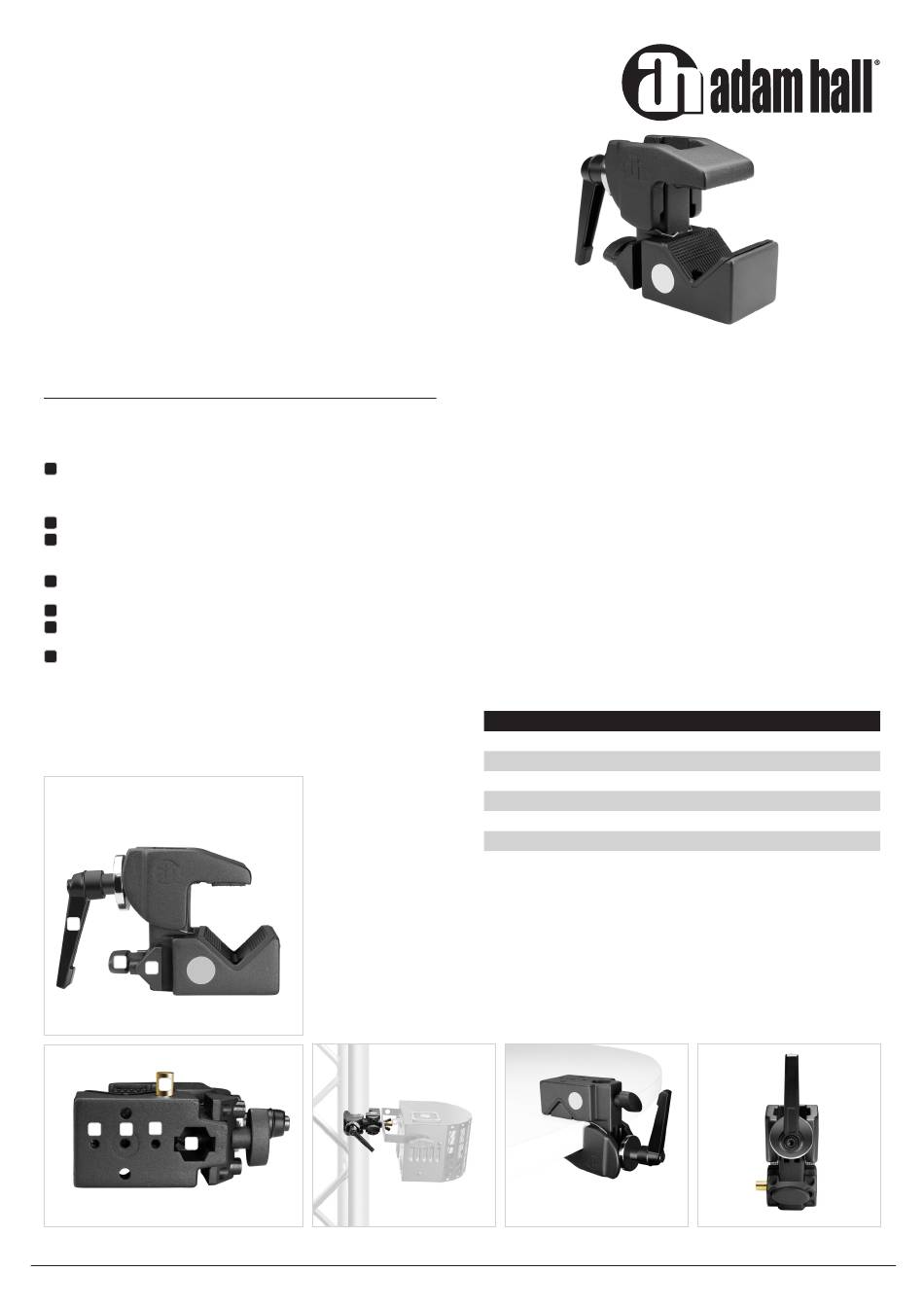

FEATURES
• Perfect for lighting and multimedia applications
• Adjustable clamping lever can be operated in any position
• Made completely of metal (stainless steel and diecast alloy)
• For mounting to round and rectangular tubes, as well as flat objects
• Clamping range: 13–55 mm
• 5/8" (16 mm) hexagonal or round pin insert
• 1 x M6 and 2 x M5 thread
• Certified by TÜV (Germany)
• Load capacity: 20 kg
• Rust-proof
• Optional mounting bolts also available
DESCRIPTION
When faced with challenges like mounting your camera at the proper angle, hanging molton
and backdrops, or mounting lighting equipment on a truss, you need just the right tool –
and one that is totally reliable.
Whether working as a photographer, a YouTuber in a home studio, or as a lighting technician
attaching lights to a truss, the Super Clamp gives your creativity the freedom it requires.
As well as having an impressive load capacity, the rugged Super Clamp can be used in
practically any situation and on any surface – curved or flat. Your new clamping companion
can support up to 20 kg and enjoys German TÜV certification.
See for yourself how quick and easy it is to mount your equipment securely using the Super
Clamp.
SPECIFICATIONS
Model number:
Product type:
Material:
Surface:
Color:
Suitable for tube diameter:
Weight:
SCP710BMK2
Universal clamp
Die-cast aluminum
Powder coated
Black
13 - 55 mm
0,5 kg
