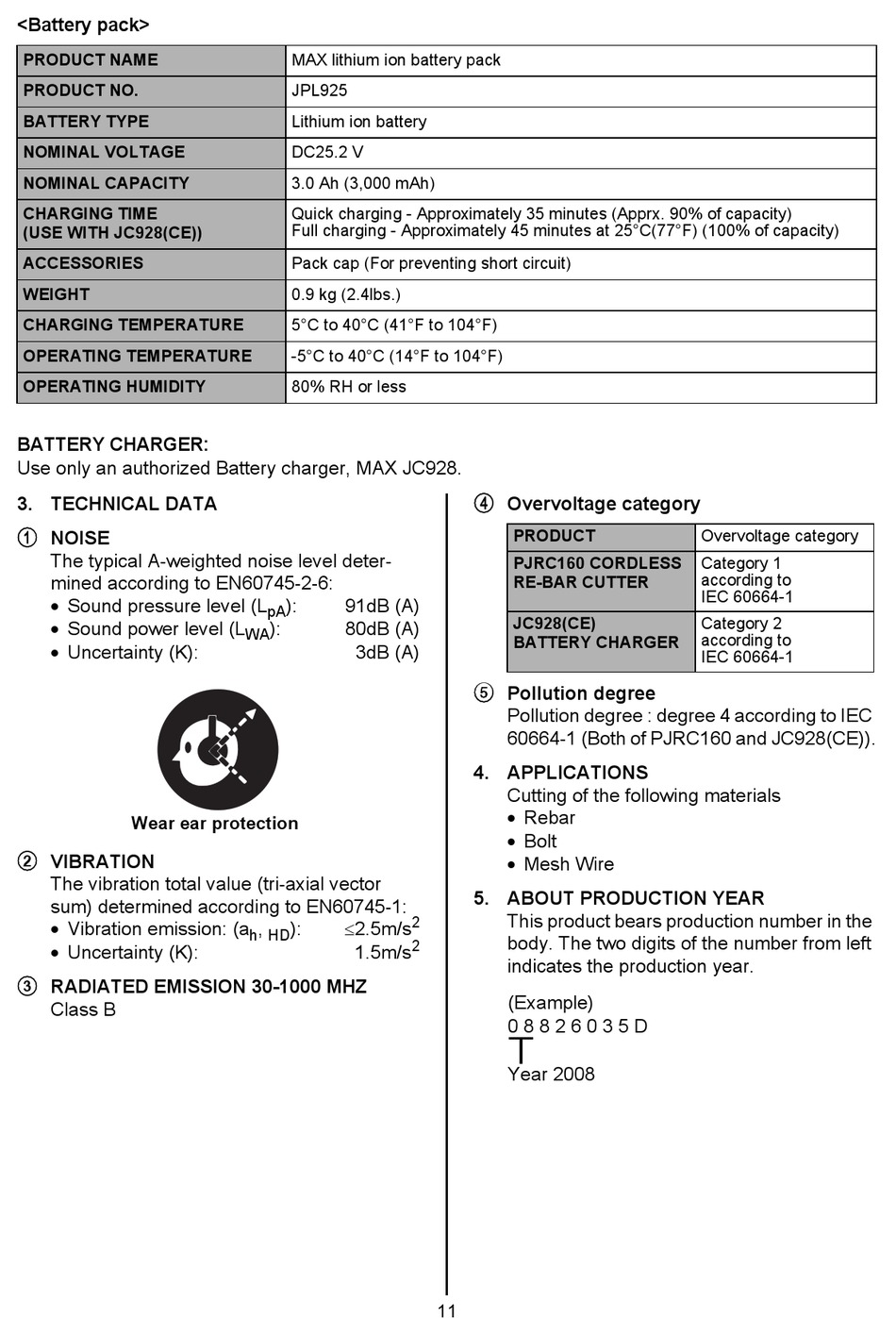

<Battery pack>
PRODUCT NAME
PRODUCT NO.
BATTERY TYPE
NOMINAL VOLTAGE
NOMINAL CAPACITY
CHARGING TIME
(USE WITH JC928(CE))
ACCESSORIES
WEIGHT
CHARGING TEMPERATURE
OPERATING TEMPERATURE
OPERATING HUMIDITY

BATTERY CHARGER:

Use only an authorized Battery charger, MAX JC928.
3. TECHNICAL DATA
1 NOISE
The typical A-weighted noise level deter-
mined according to EN60745-2-6:
• Sound pressure level (L
• Sound power level (L
• Uncertainty (K):
Wear ear protection
2 VIBRATION
The vibration total value (tri-axial vector
sum) determined according to EN60745-1:
• Vibration emission: (a
• Uncertainty (K):
3 RADIATED EMISSION 30-1000 MHZ
Class B
MAX lithium ion battery pack
JPL925
Lithium ion battery
DC25.2 V
3.0 Ah (3,000 mAh)
Quick charging - Approximately 35 minutes (Apprx. 90% of capacity)
Full charging - Approximately 45 minutes at 25°C(77°F) (100% of capacity)
Pack cap (For preventing short circuit)
0.9 kg (2.4lbs.)
5°C to 40°C (41°F to 104°F)
-5°C to 40°C (14°F to 104°F)
80% RH or less
): 91dB (A)
pA
): 80dB (A)
WA
3dB (A)
2
≤2.5m/s
, ):
h HD
2
1.5m/s
4 Overvoltage category
PRODUCT
PJRC160 CORDLESS
RE-BAR CUTTER
JC928(CE)
BATTERY CHARGER
5 Pollution degree
Pollution degree : degree 4 according to IEC
60664-1 (Both of PJRC160 and JC928(CE)).
4. APPLICATIONS
Cutting of the following materials
• Rebar
• Bolt
• Mesh Wire
5. ABOUT PRODUCTION YEAR
This product bears production number in the
body. The two digits of the number from left
indicates the production year.
(Example)
0 8 8 2 6 0 3 5 D
Year 2008
11
Overvoltage category
Category 1
according to
IEC 60664-1
Category 2
according to
IEC 60664-1
